Mil/TCIL Never On And Mil/TCIL Always On

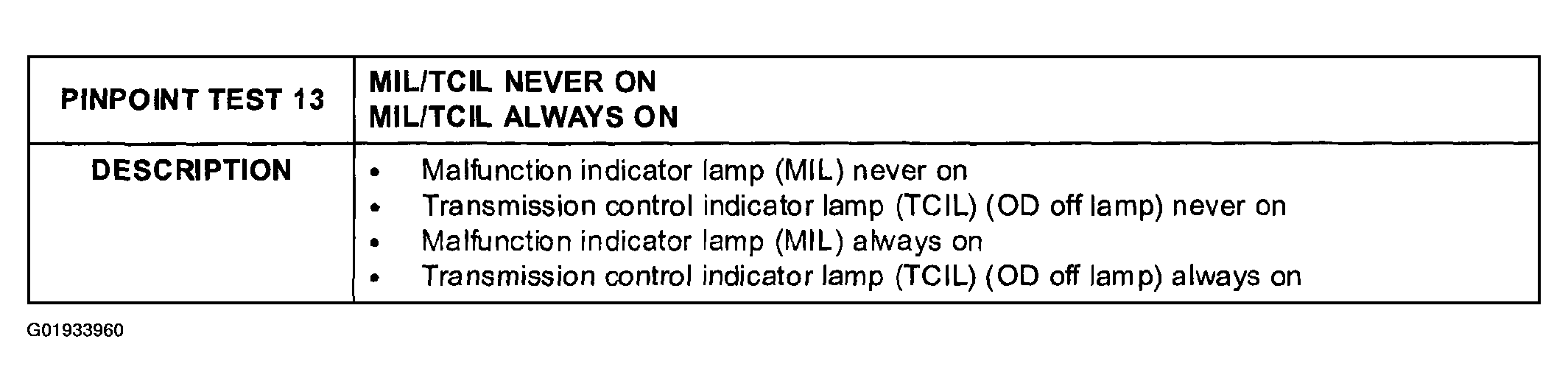

Fig 1: Pinpoint Test 13 - MIL/TCIL Never On And MIL/TCIL Always On Description

Courtesy of MAZDA MOTORS CORP.

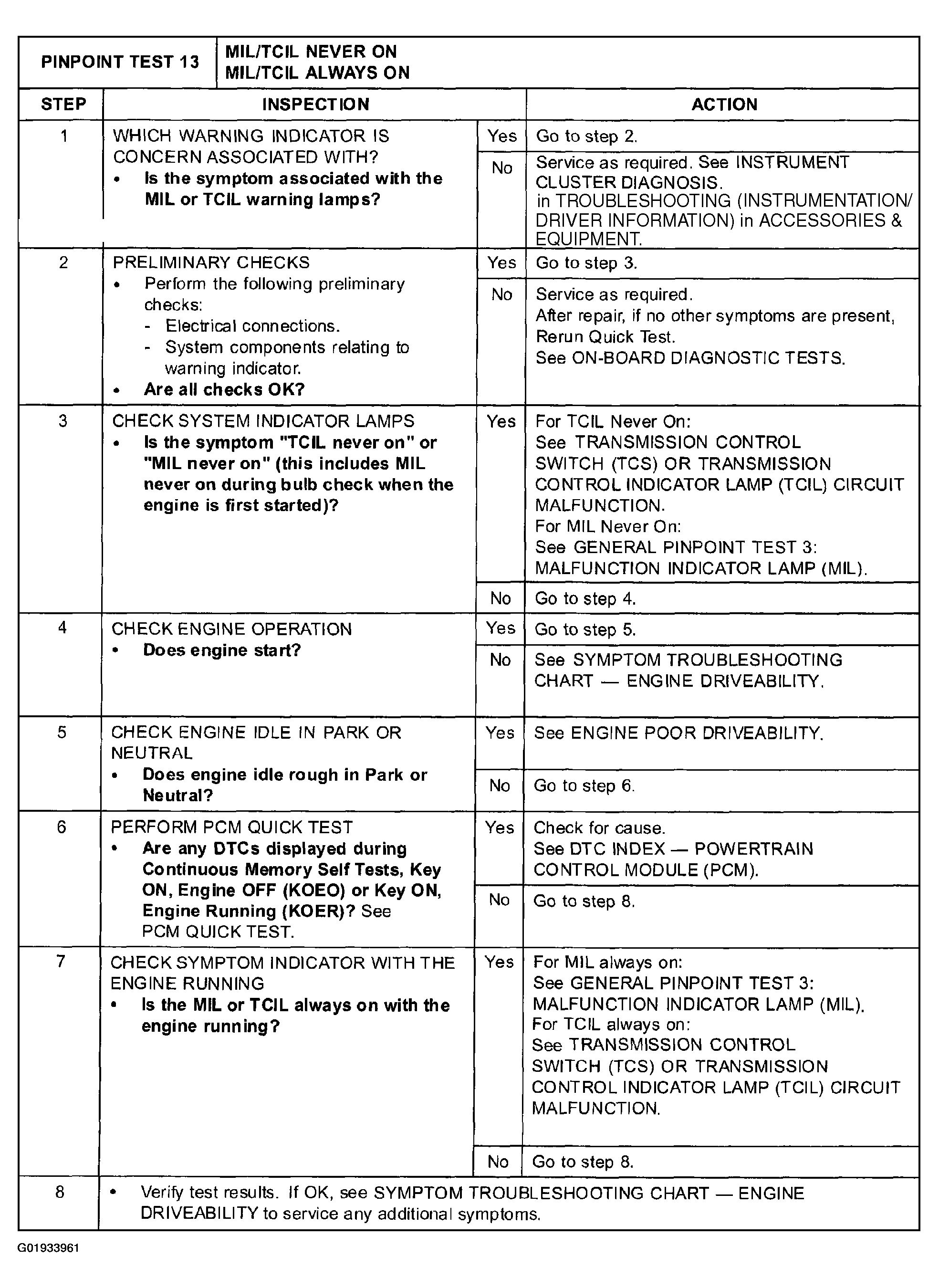

Fig 2: Pinpoint Test 13 - MIL/TCIL Never On And MIL/TCIL Always On (Steps 1-8)

Courtesy of MAZDA MOTORS CORP.
