Component Testing Procedure

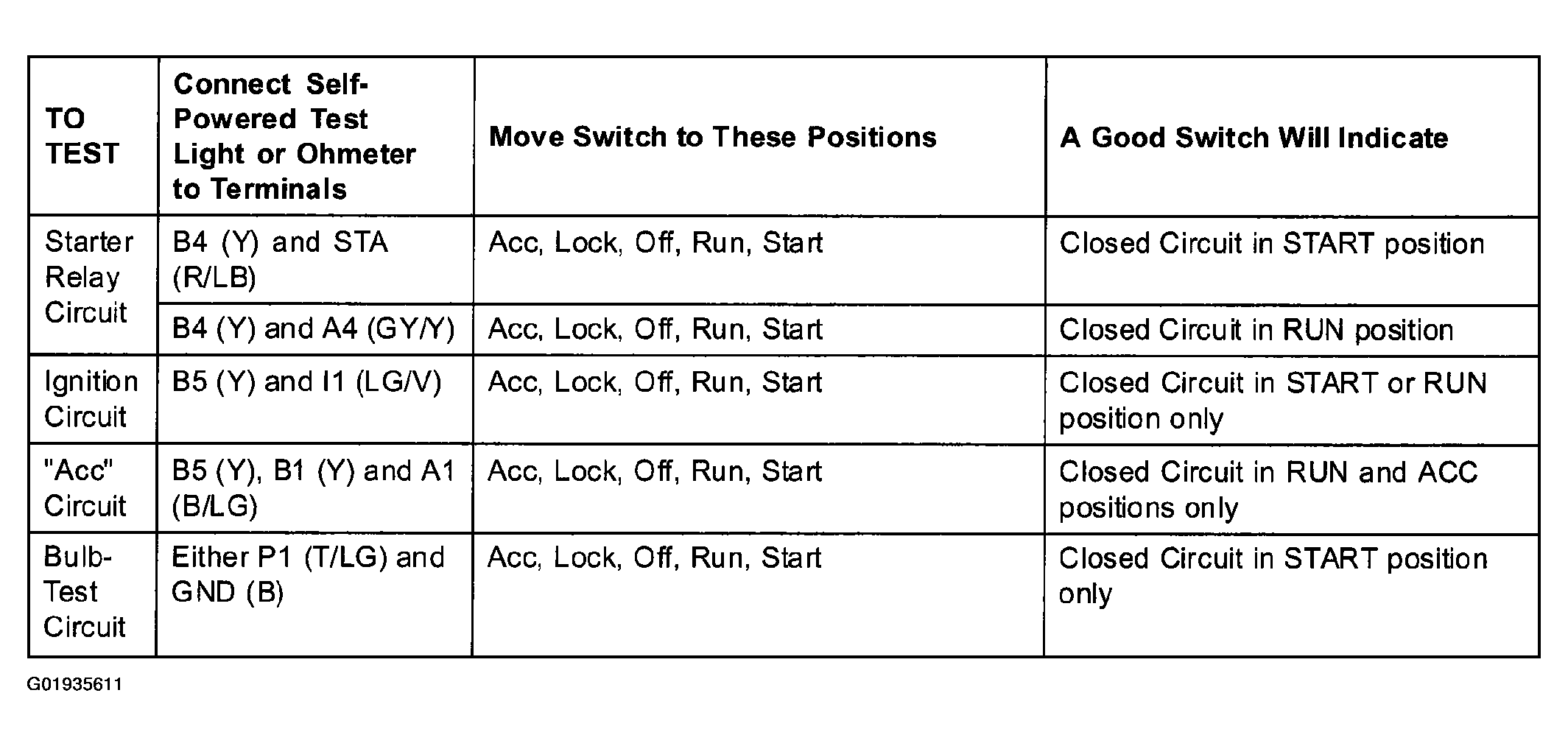

Fig 1: Power System Component Testing Procedure
G01935611Courtesy of MAZDA MOTORS CORP.
