Automatic Transmission Shift Concerns

Fig 1: Pinpoint Test 14 - Automatic Transmission Shift Concerns Description

Courtesy of MAZDA MOTORS CORP.

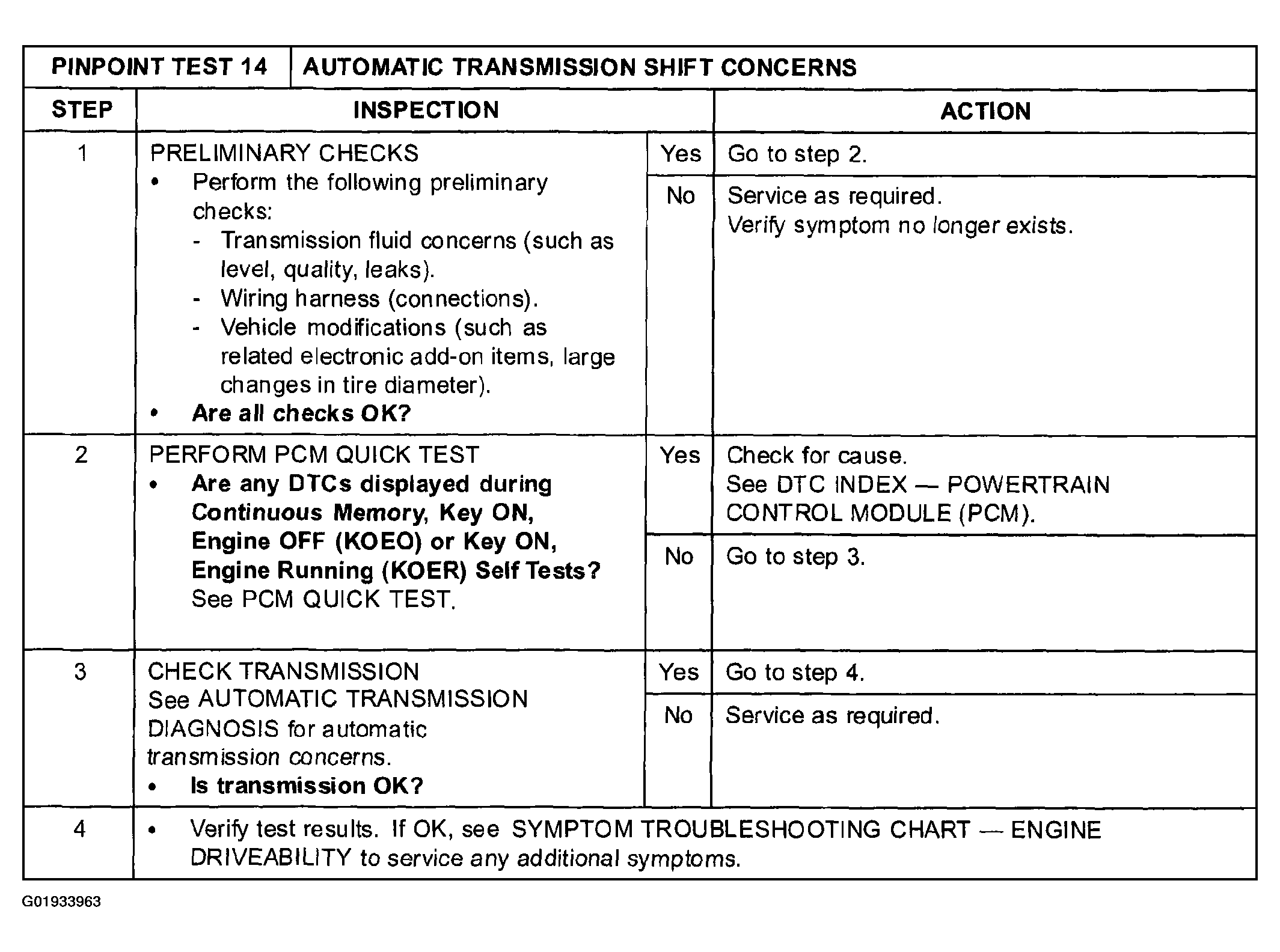

Fig 2: Pinpoint Test 14 - Automatic Transmission Shift Concerns (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.
