Fast Idle

Fig 1: Pinpoint Test 5 - Fast Idle Description
G01933925Courtesy of MAZDA MOTORS CORP.

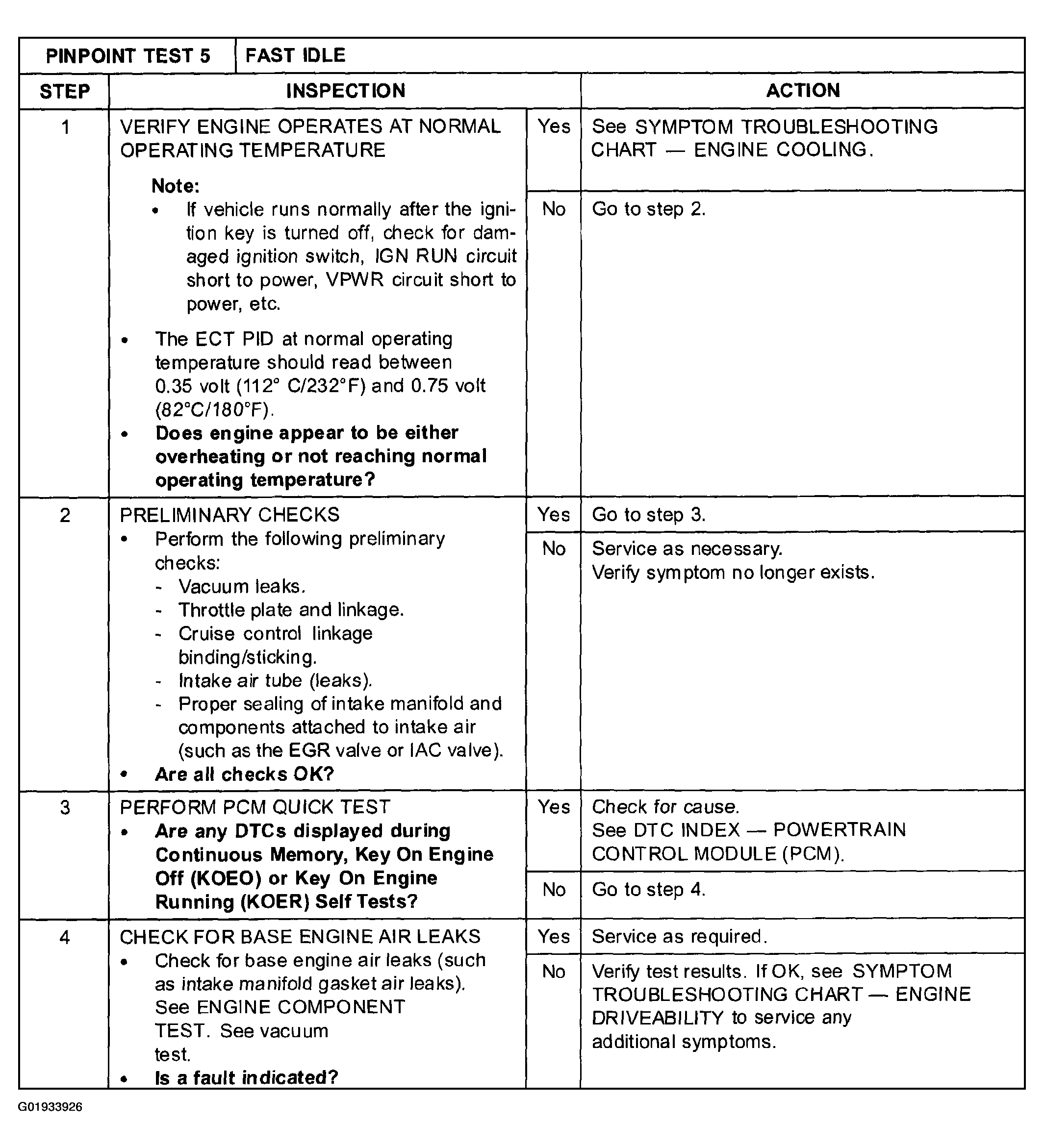

Fig 2: Pinpoint Test 5 - Fast Idle (Steps 1-4)
G01933926Courtesy of MAZDA MOTORS CORP.
