General Pinpoint Test 8: Crankshaft Position (CKP) Sensor

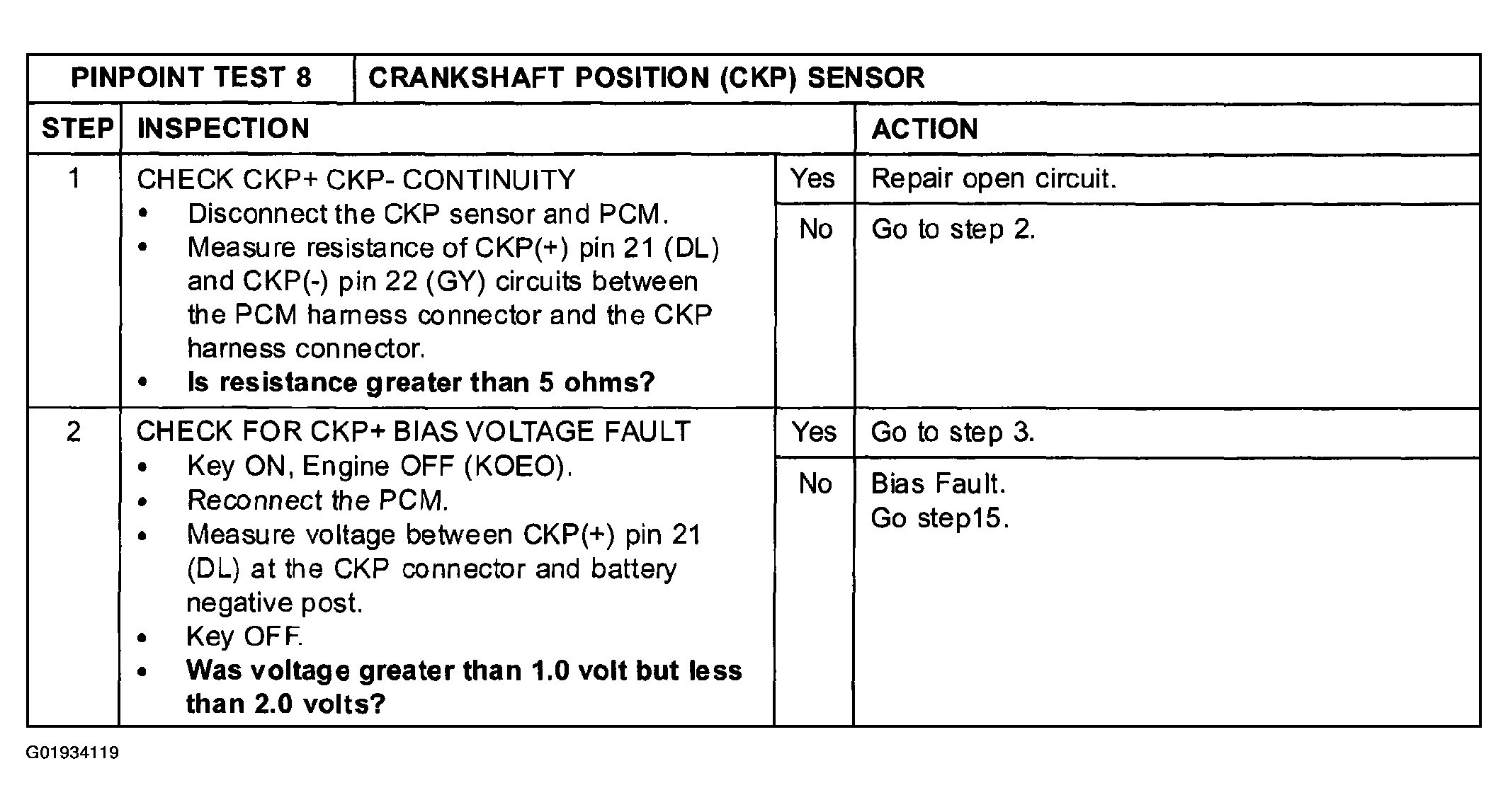

Fig 1: General Pinpoint Test 8: Crankshaft Position Sensor (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

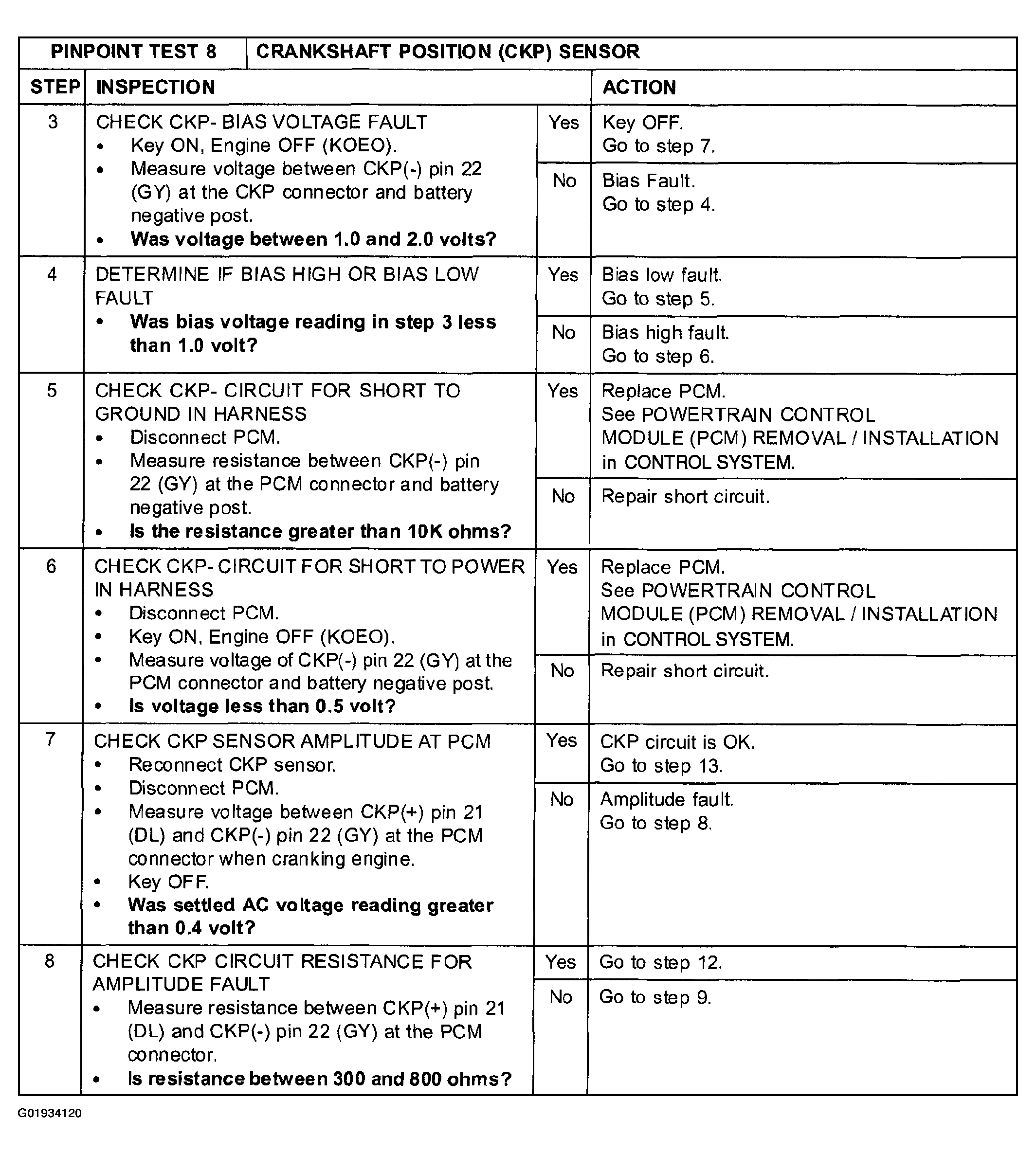

Fig 2: General Pinpoint Test 8: Crankshaft Position Sensor (Steps 3-8)

Courtesy of MAZDA MOTORS CORP.

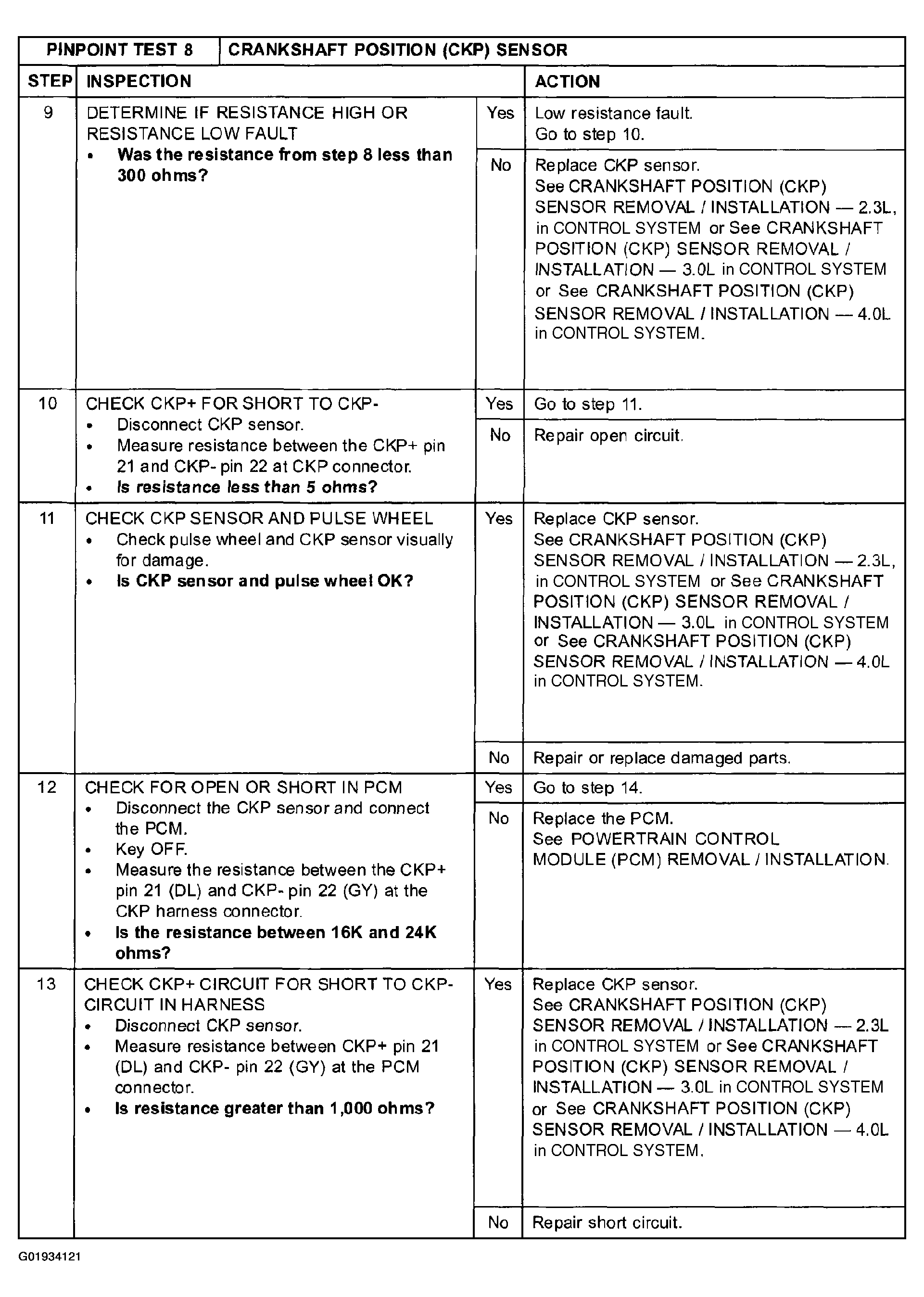

Fig 3: General Pinpoint Test 8: Crankshaft Position Sensor (Steps 9-13)

Courtesy of MAZDA MOTORS CORP.

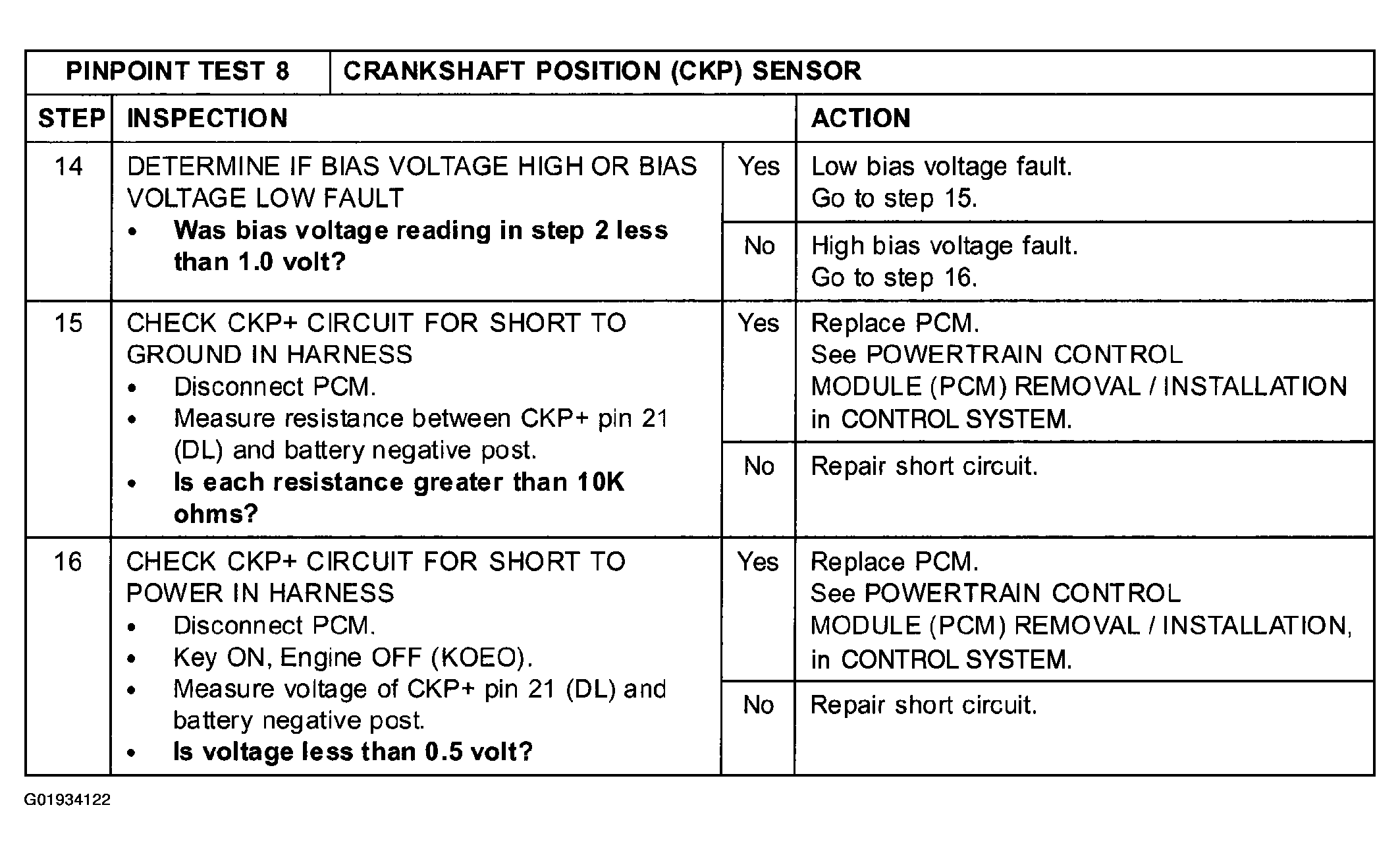

Fig 4: General Pinpoint Test 8: Crankshaft Position Sensor (Steps 14-16)

Courtesy of MAZDA MOTORS CORP.
