Pcm Quick Test: Notes

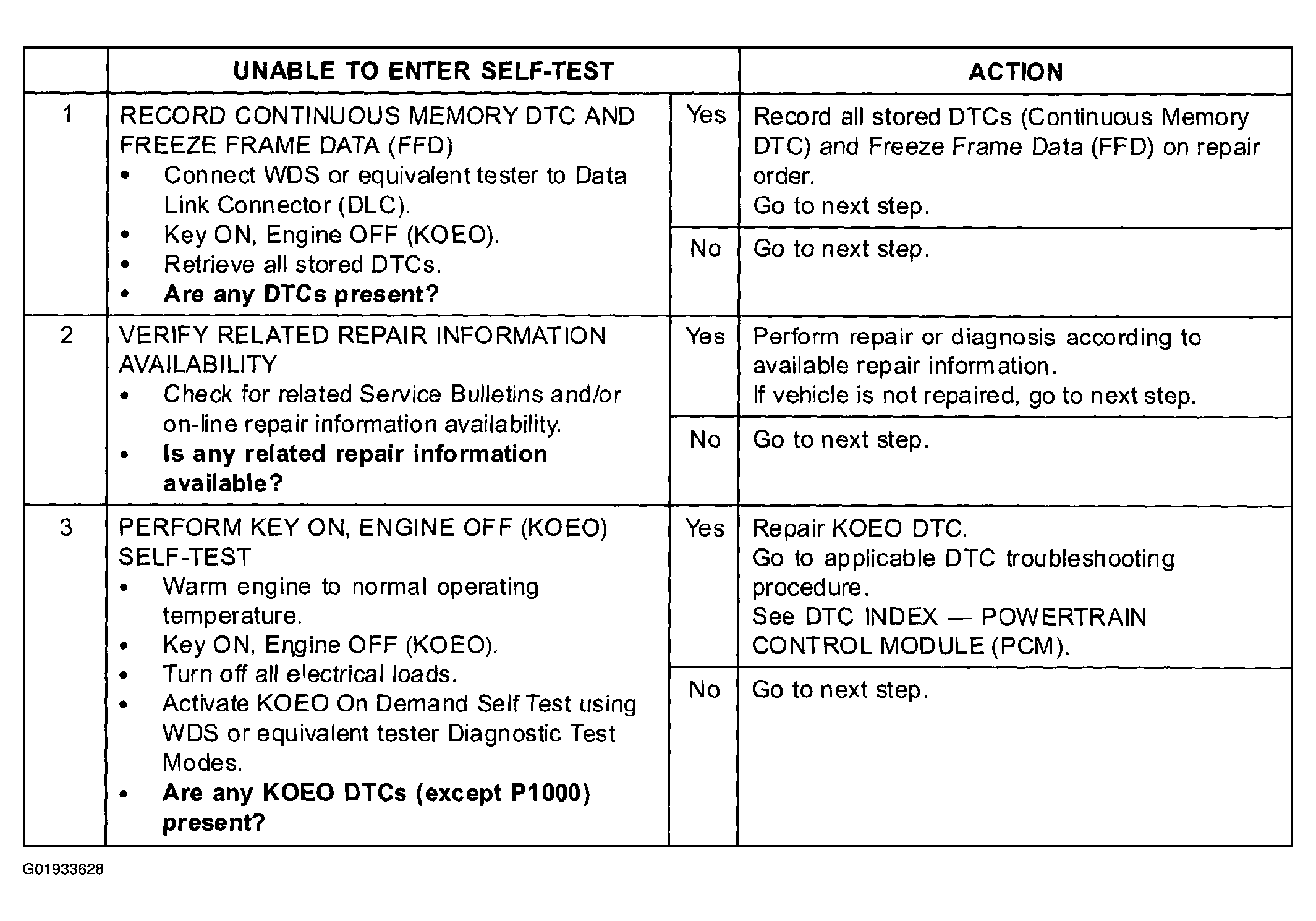

Fig 1: Powertrain Control Module Quick Test Table (Steps 1-3))

G01933628

Courtesy of MAZDA MOTORS CORP.

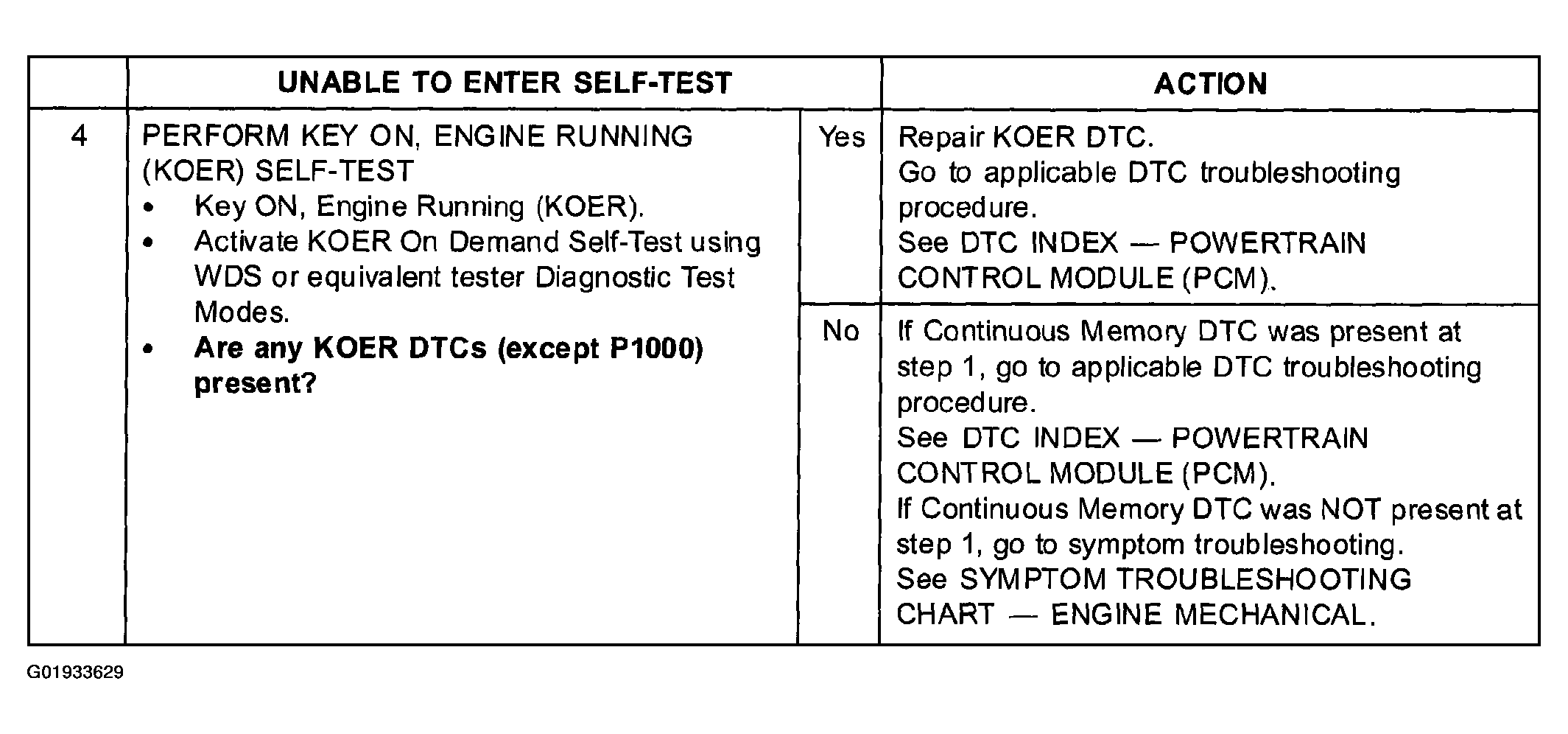

Fig 2: Powertrain Control Module Quick Test Table (Step 4)

G01933629

Courtesy of MAZDA MOTORS CORP.
