Symptom Troubleshooting Chart Engine DRIVEABILITY
›
Notes
Symptom Troubleshooting Chart Engine DRIVEABILITY: Notes

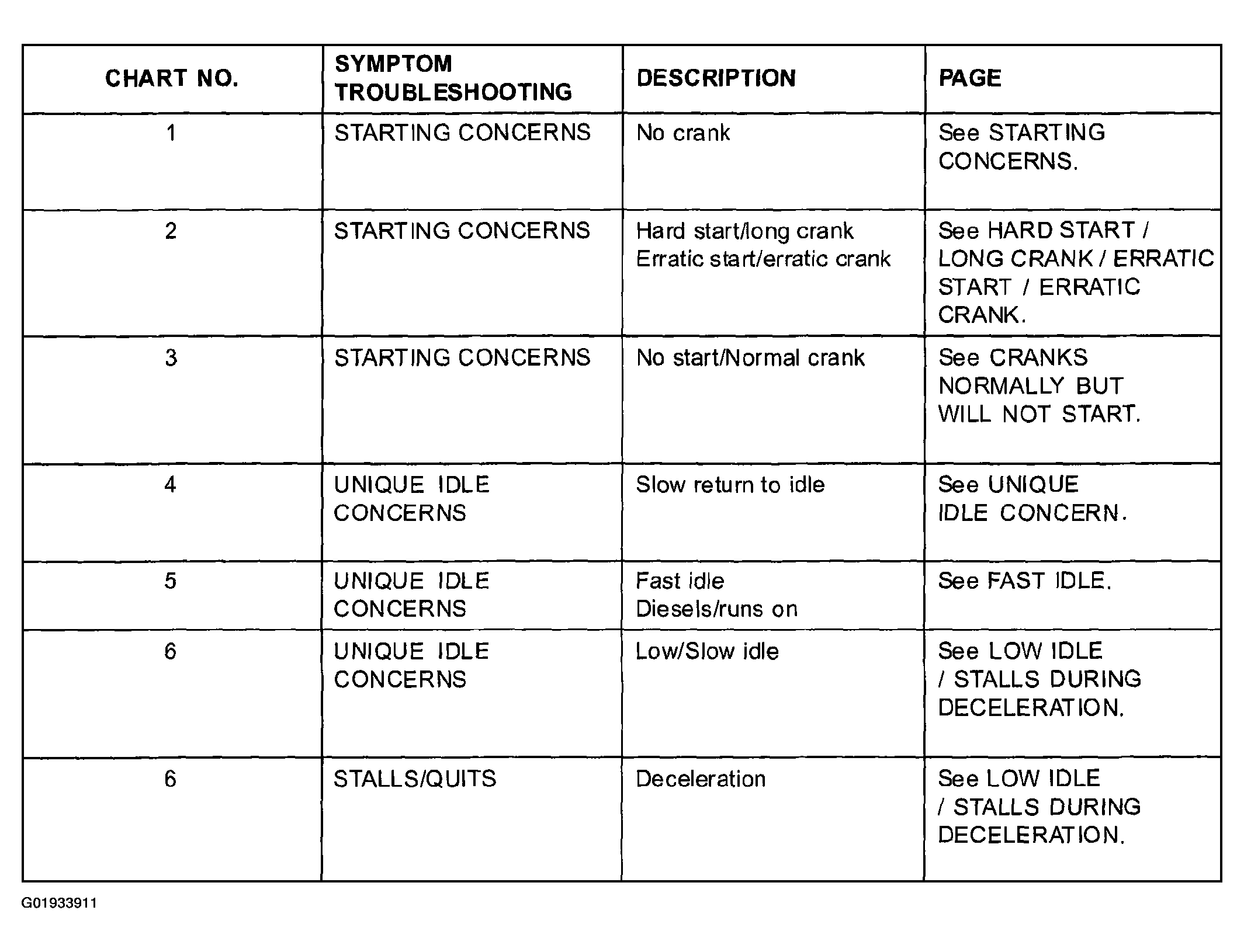

Fig 1: Engine Driveability Symptom Troubleshooting Chart (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

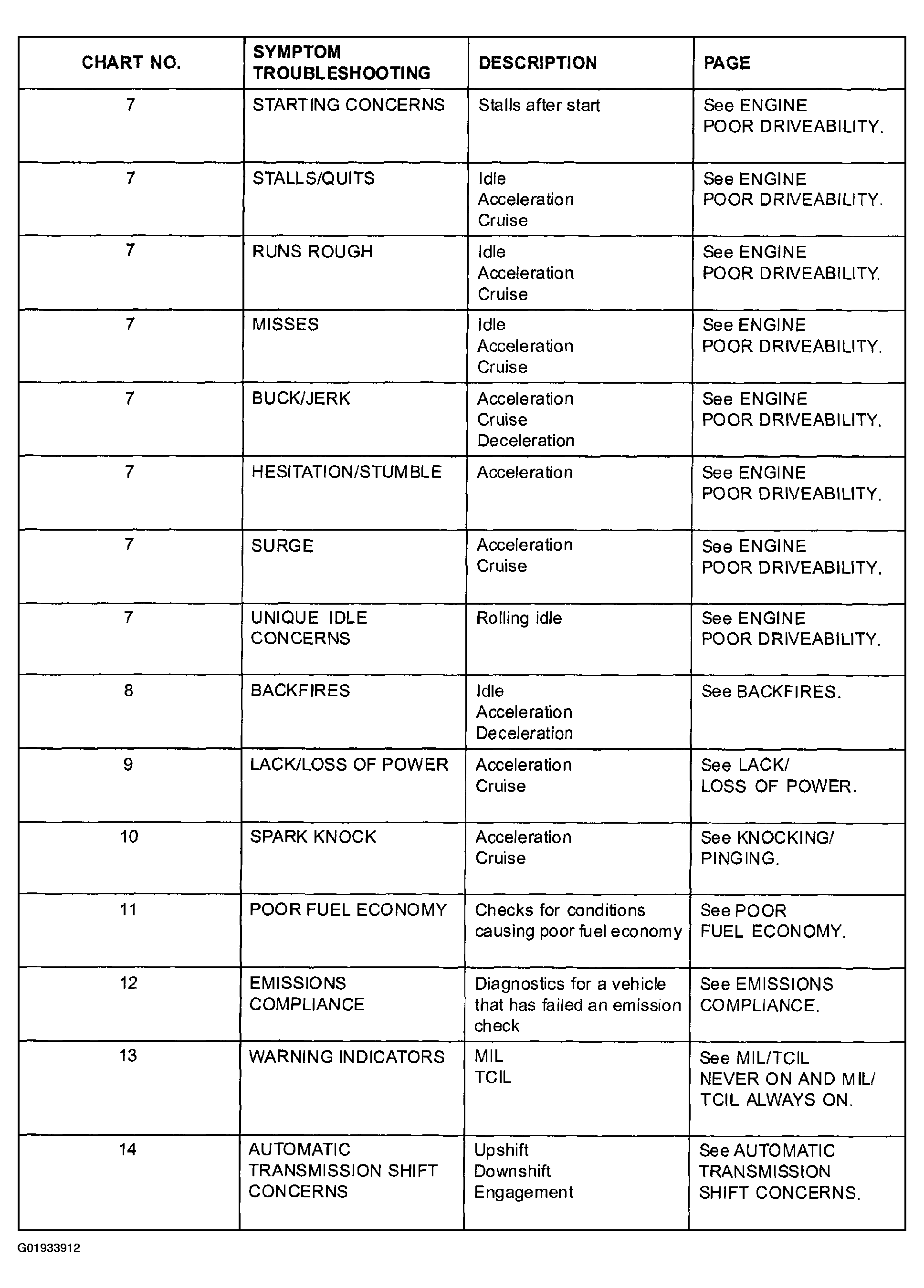

Fig 2: Engine Driveability Symptom Troubleshooting Chart (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

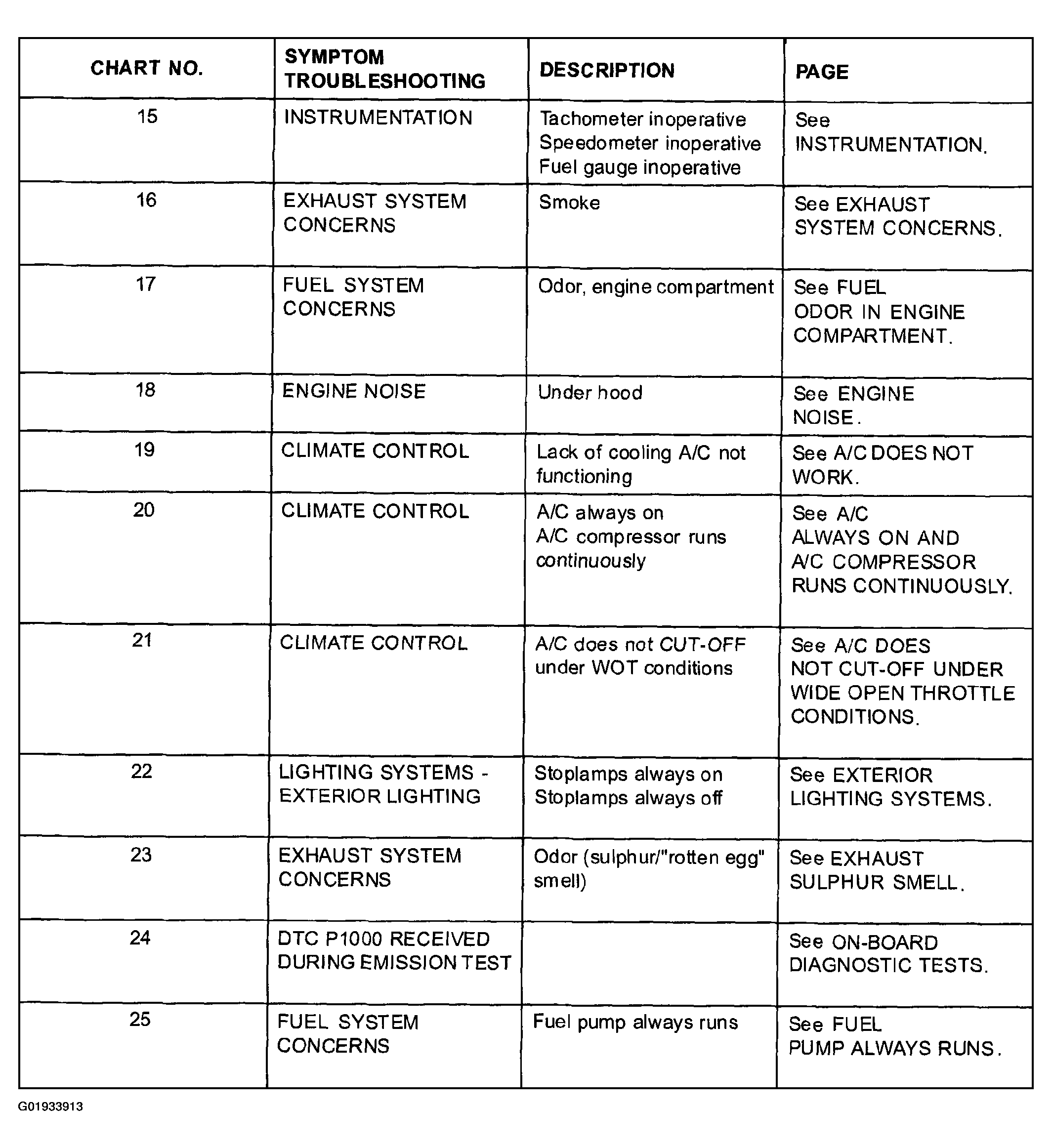

Fig 3: Engine Driveability Symptom Troubleshooting Chart (3 Of 3)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
