Power Windows Inoperative (All)

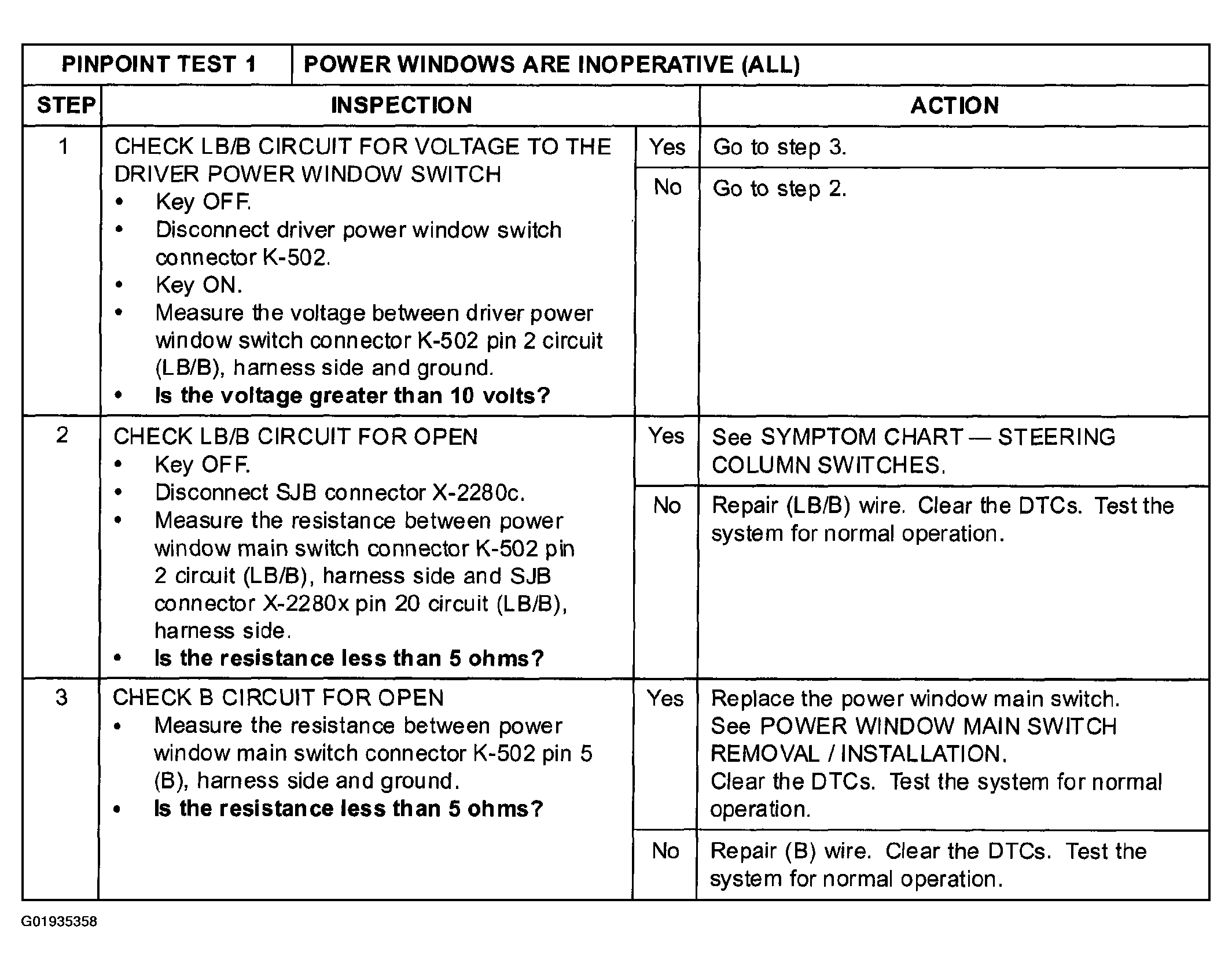

Fig 1: Pinpoint Test 1 - Power Windows Inoperative (All) Inspection Table

Courtesy of MAZDA MOTORS CORP.

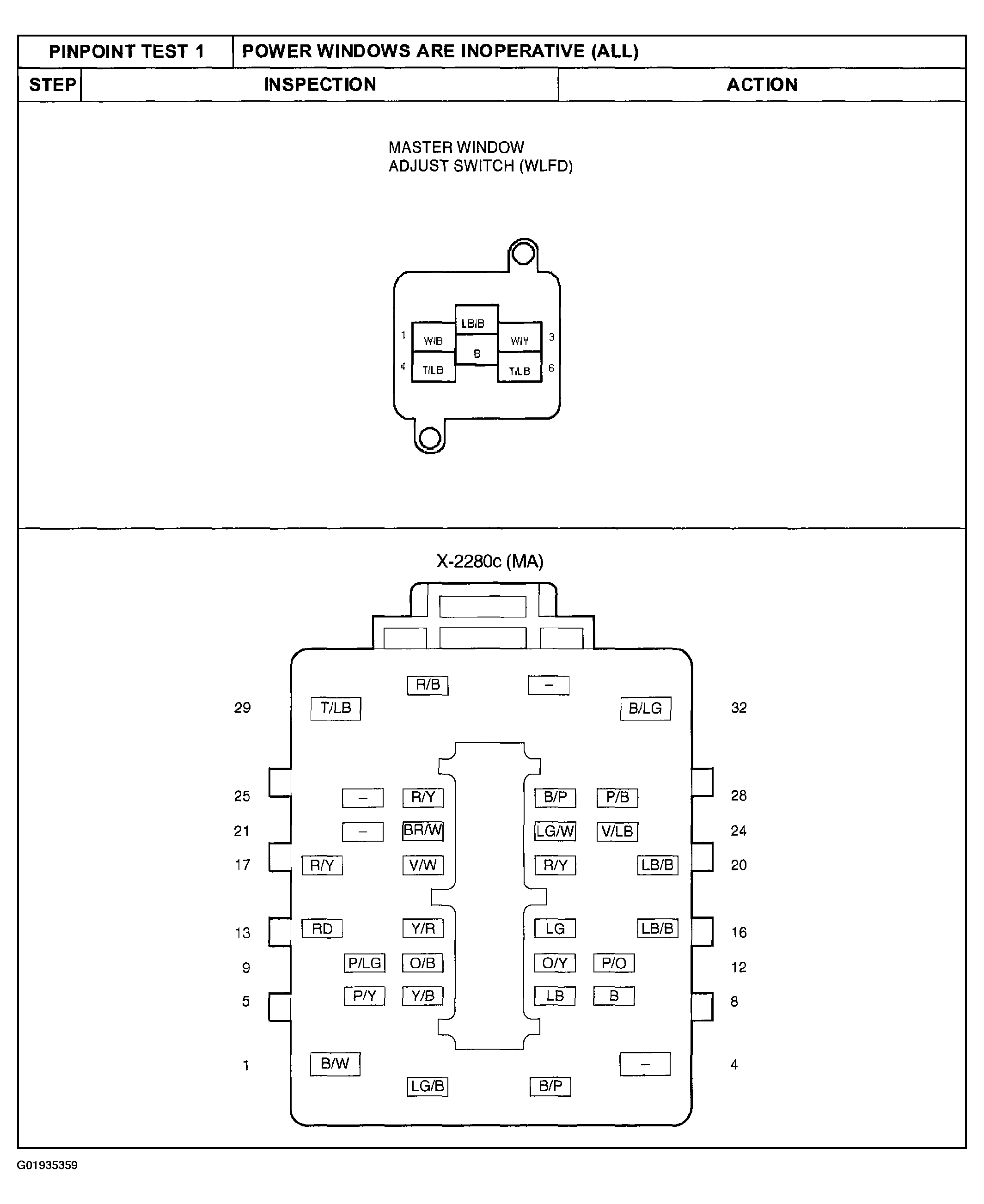

Fig 2: Identifying Master Window Adjust Switch And X-2280c Connector Terminal Wire Color

Courtesy of MAZDA MOTORS CORP.
