EGR System Description - 2.3L Engine

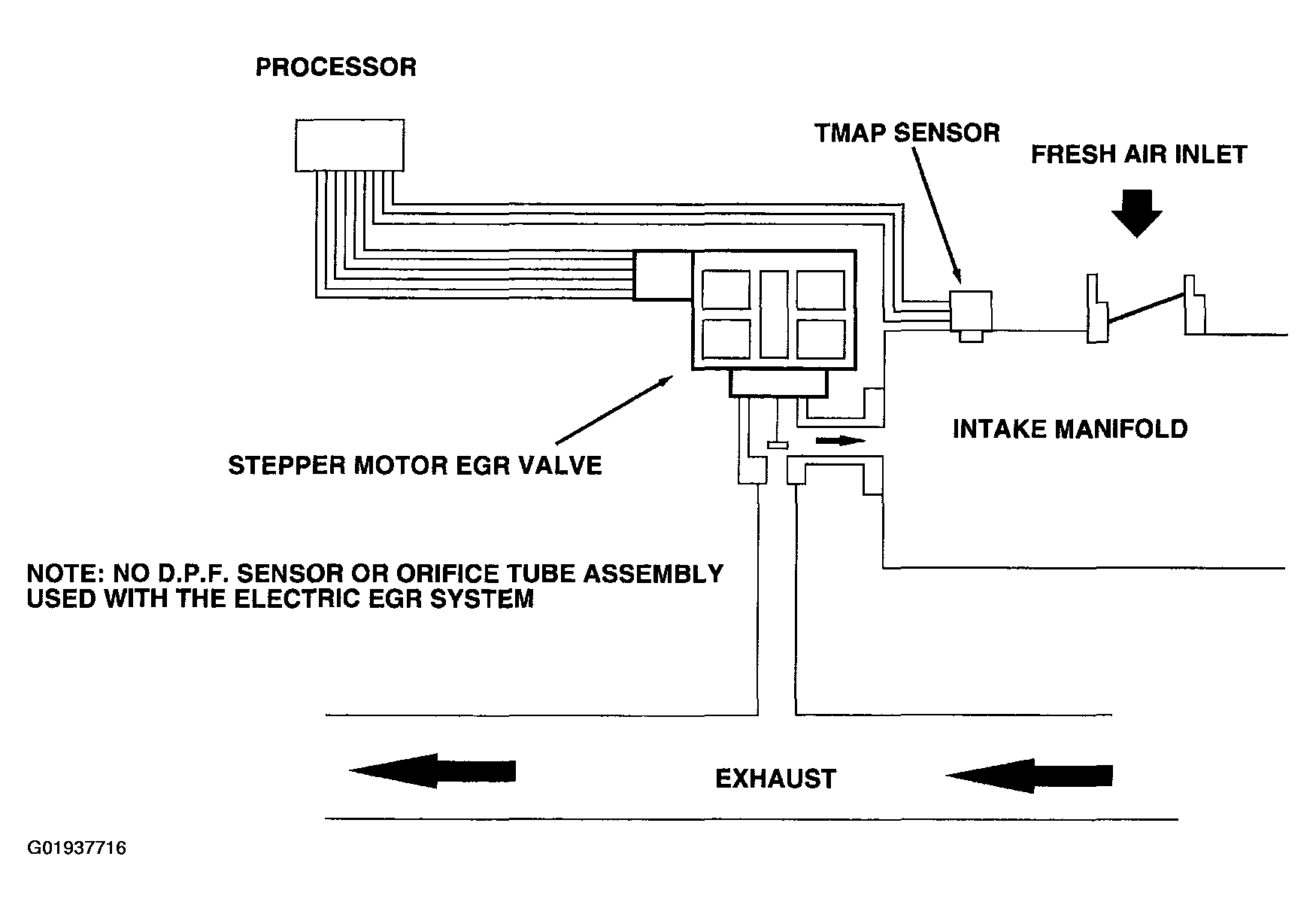

Fig 1: EGR System Description - 2.3L Engine

Courtesy of MAZDA MOTORS CORP.

• The EGR system returns a small amount of exhaust gas into the intake manifold. This reduces the overall combustion temperature. Cooler combustion temperatures provide a significant reduction of the oxides of nitrogen (NOx) in the exhaust emissions.
• The 2.3L engine incorporates a stepper motor-controlled EGR valve which receives its signal from the PCM. Engine coolant is used to cool the EGR valve. The EGR valve and stepper motor are serviced as an assembly.
