Exhaust System Components -4.0L
›
Notes
Exhaust System Components -4.0L: Notes

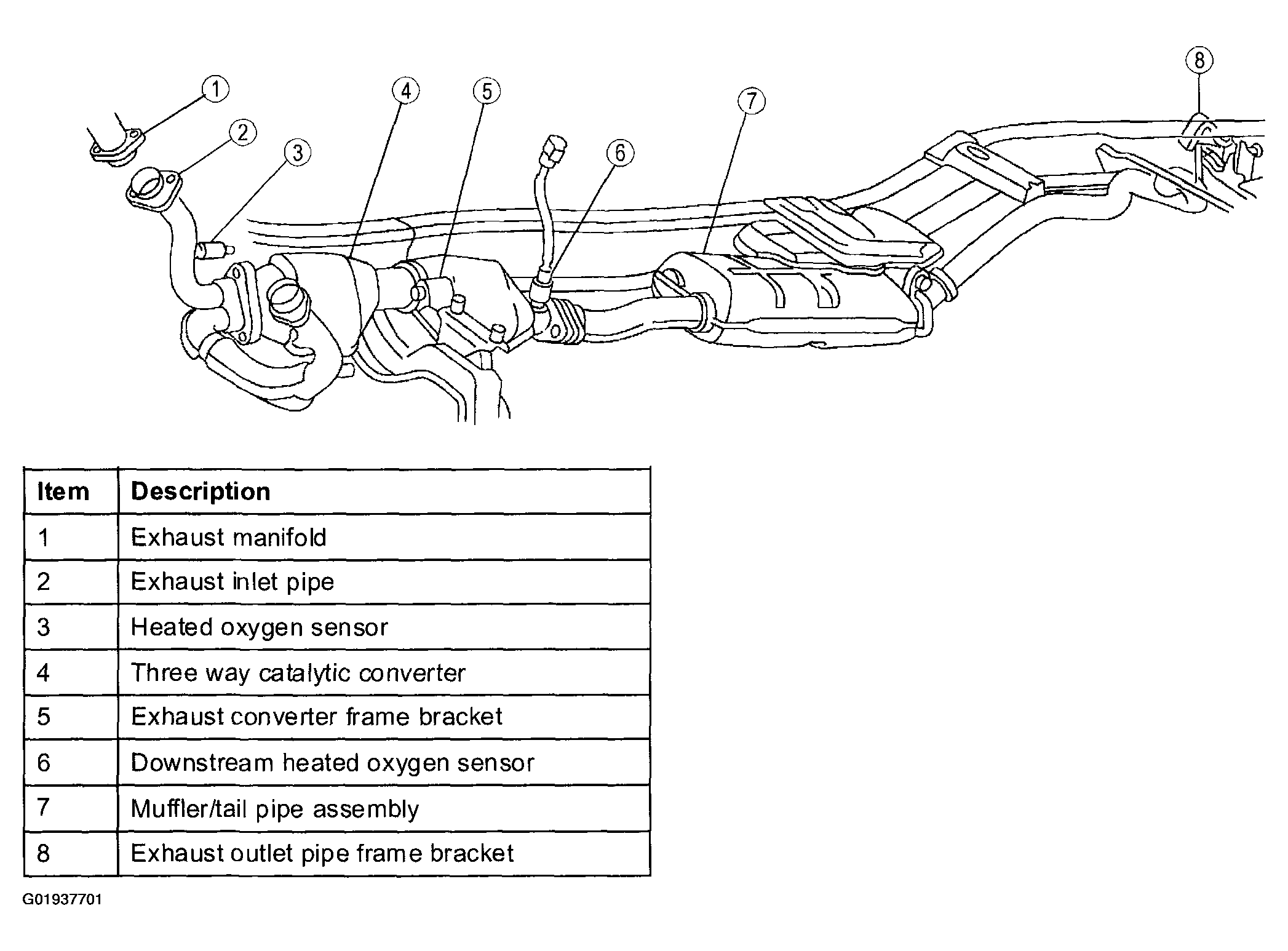

Fig 1: Exhaust System Components -4.0L
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
