Cruise Control System Pinpoint Test 5: The Cruise Control Switch Is Inoperative

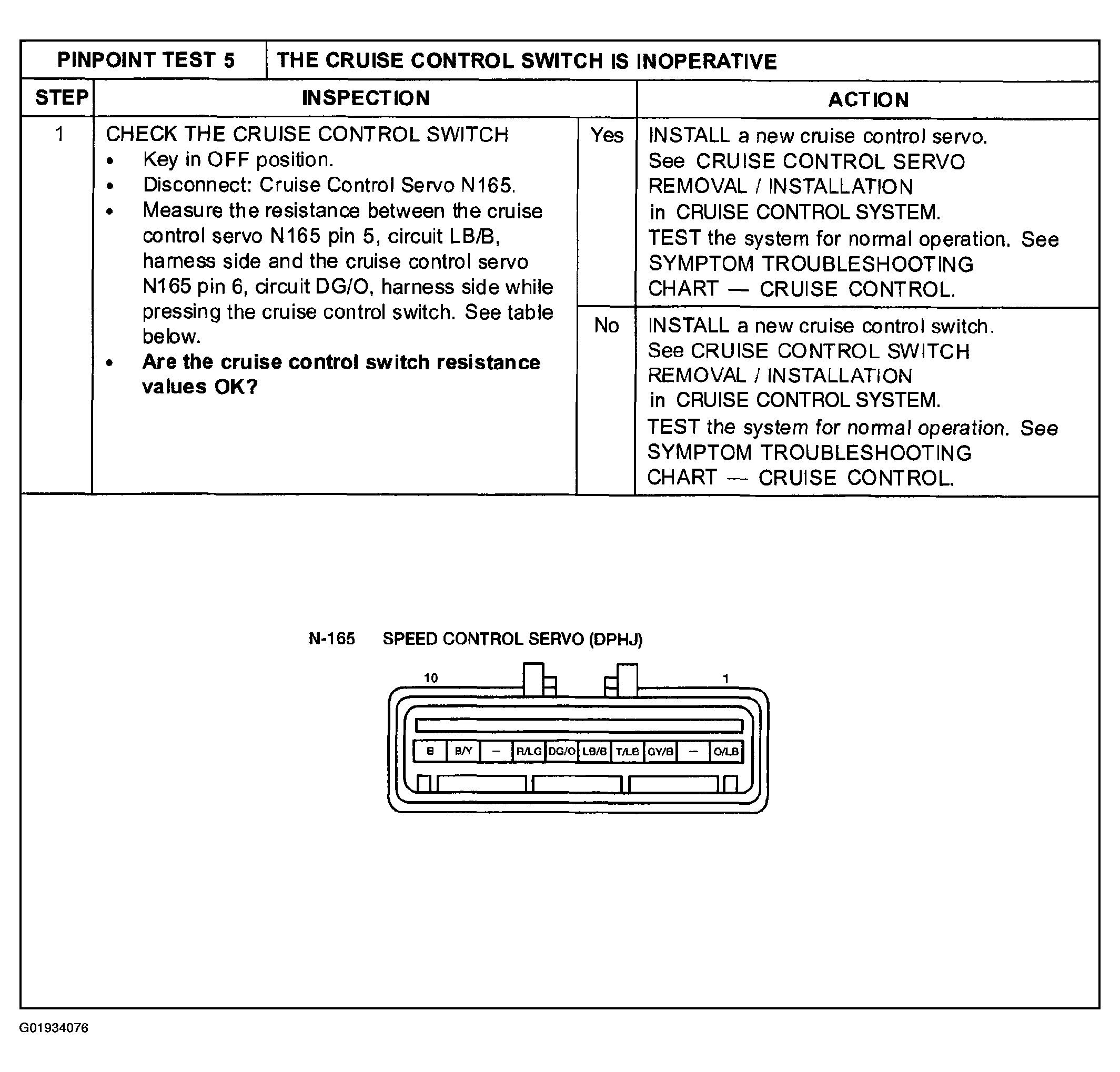

Fig 1: Cruise Control System Pinpoint Test 5: Cruise Control Switch Inoperative
G01934076Courtesy of MAZDA MOTORS CORP.

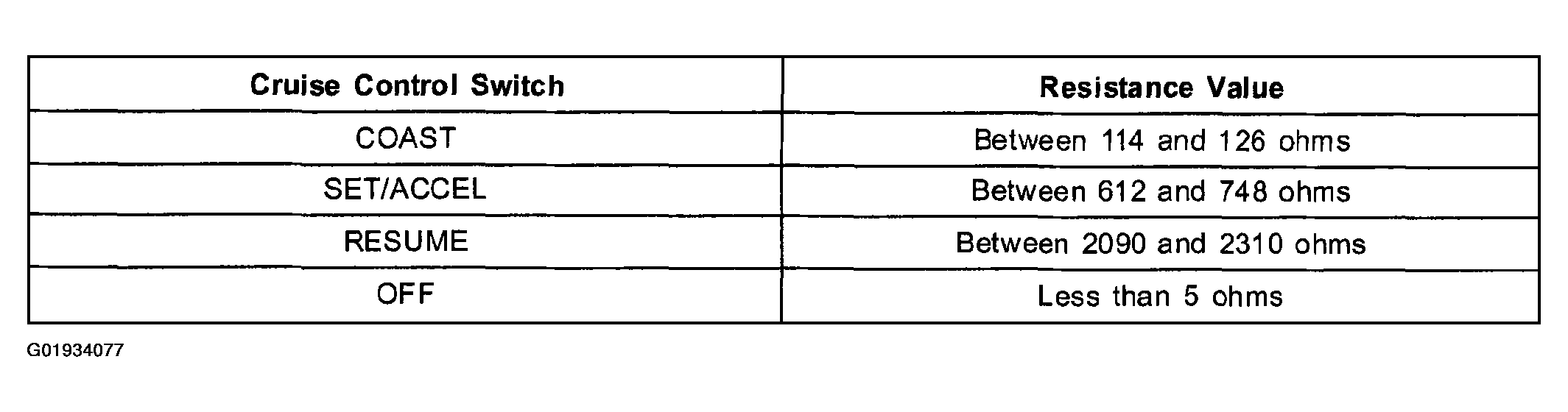

Fig 2: Cruise Control Switch Resistance Value Table
G01934077Courtesy of MAZDA MOTORS CORP.
