Condition Code List

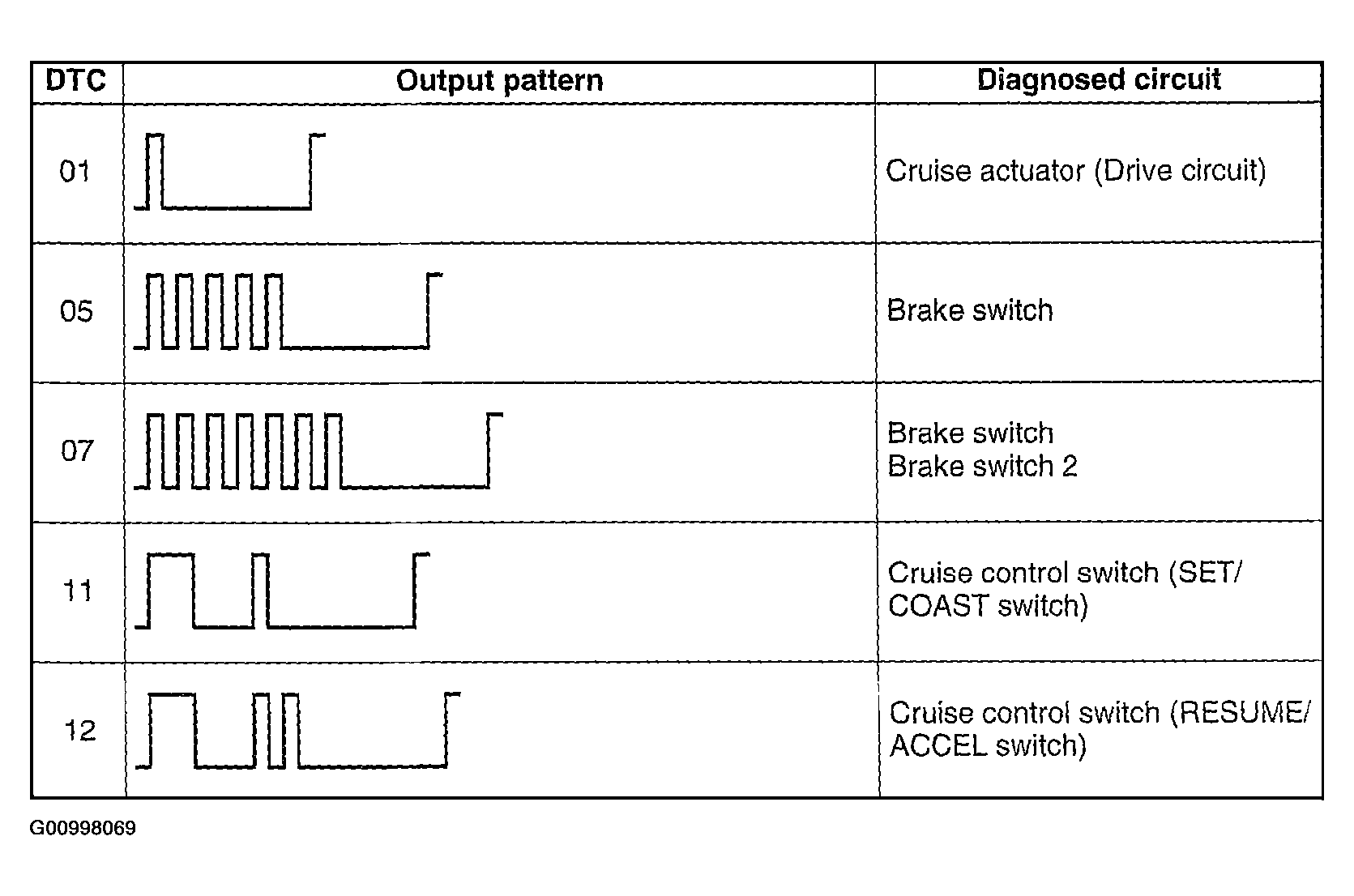

Fig 1: Condition Code List (DTC 01, 05, 07, 11 & 12)

Courtesy of MAZDA MOTORS CORP.

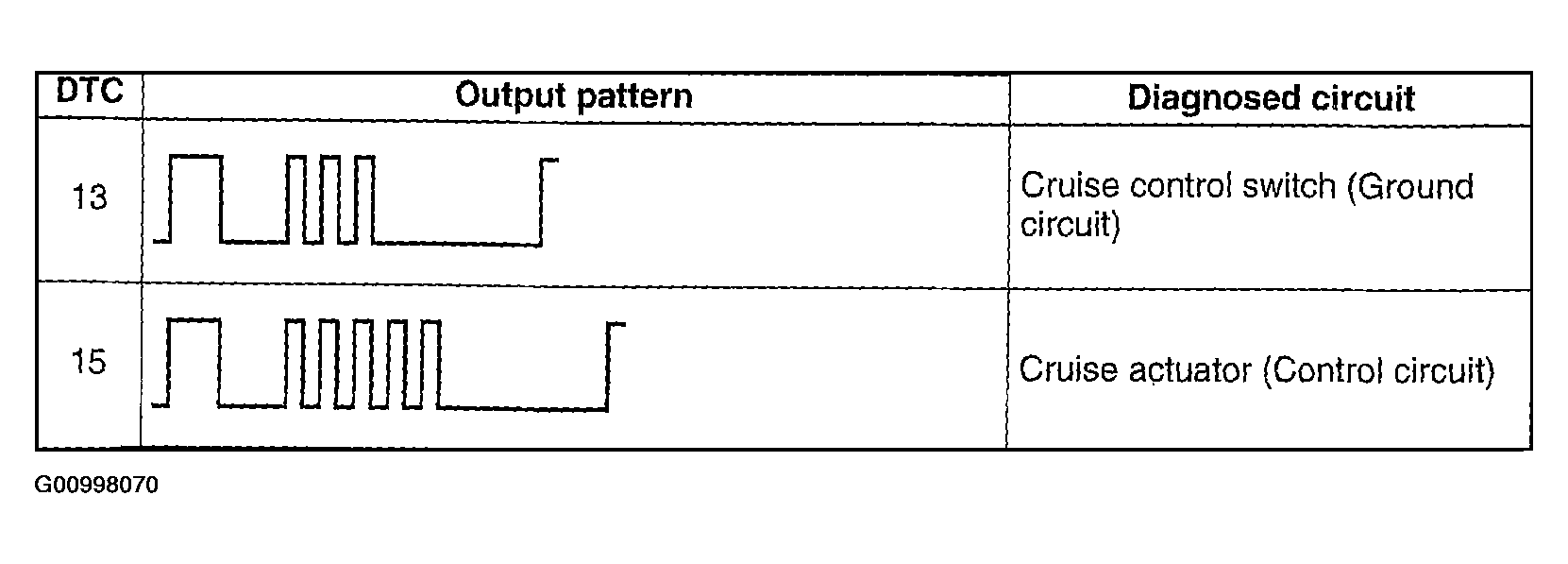

Fig 2: Condition Code List (DTC 13 & 15)

Courtesy of MAZDA MOTORS CORP.

NOTE:

When two or more DTCs are indicated, inspect the malfunction with the smallest number first.
