Sliding Door Lock And Actuator Removal/Installation
- Close the front door glass completely.
- Disconnect the negative battery cable.
- Remove the front door trim. (See SLIDING DOOR LOCK AND OPENER REMOVAL/INSTALLATION .)
- Disconnect the front door lock actuator connector.
- Disconnect the rods and the cables.
- Remove the bolts, and remove the sliding door remote controller.

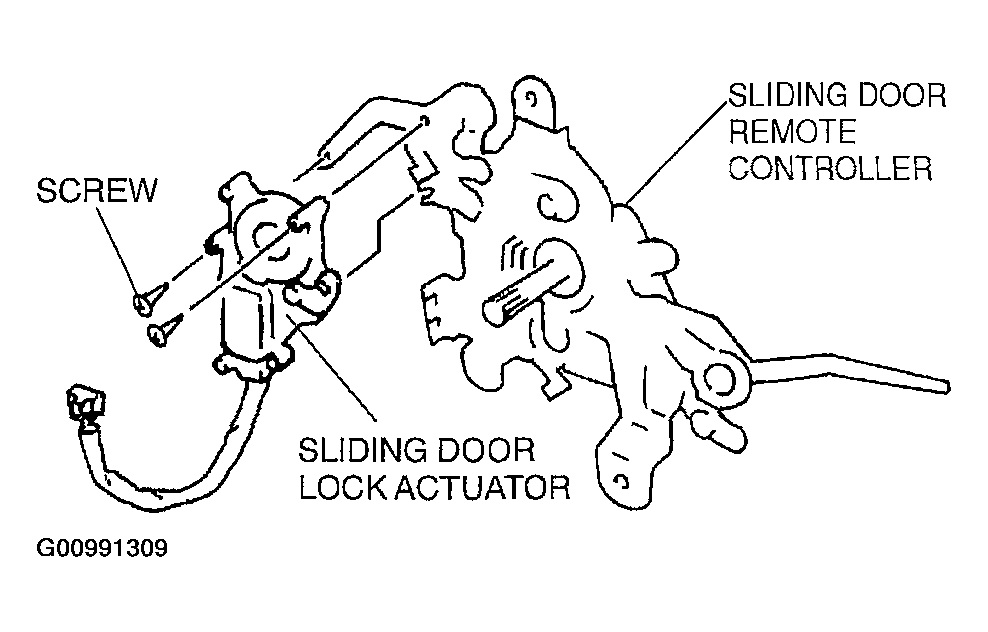

- Remove the screws, and remove the sliding door lock actuator from the sliding door remote controller.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
