Rear Tilt Motor Inspection

Disconnect the rear tilt motor connector.
Inspect the rear tilt motor operation when B+ is applied to the terminals as shown.
- If not as specified, replace the seat cushion frame.

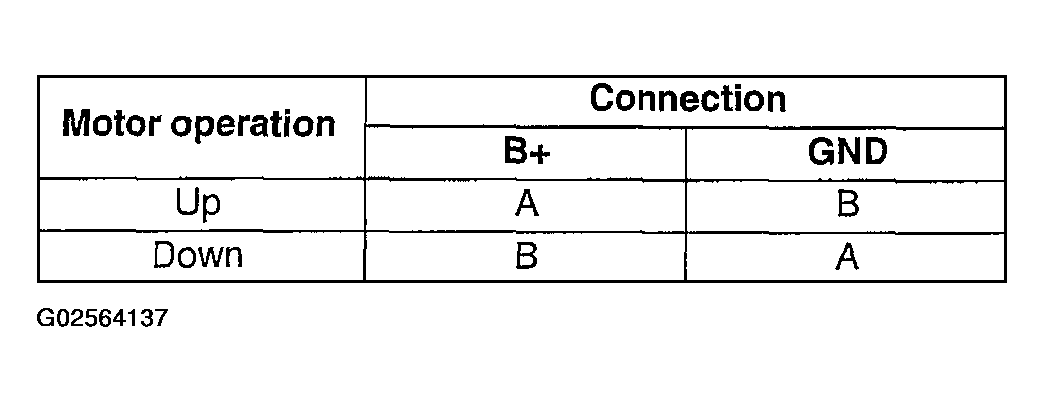

Fig 1: Identifying Rear Tilt Motor Operation
Courtesy of MAZDA MOTORS CORP.

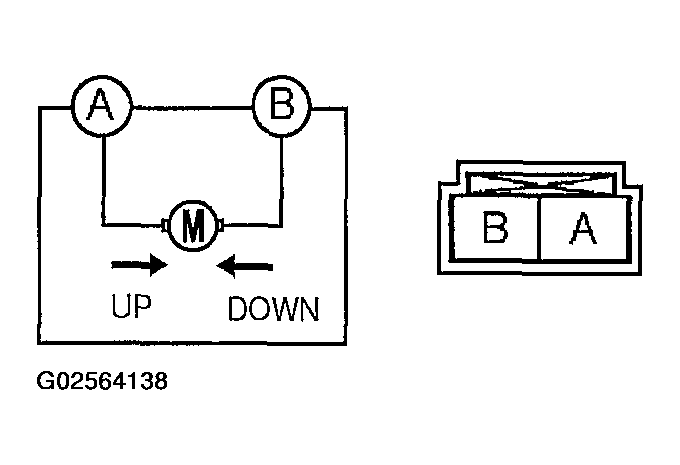

Fig 2: Identifying Rear Tilt Motor Circuit, Terminals & Connector View
Courtesy of MAZDA MOTORS CORP.
