Third-Row Seat Removal/Installation: Striker

  1. Remove the rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
  2. Remove the nuts and then remove the striker.
  3. Install in the reverse order of removal.

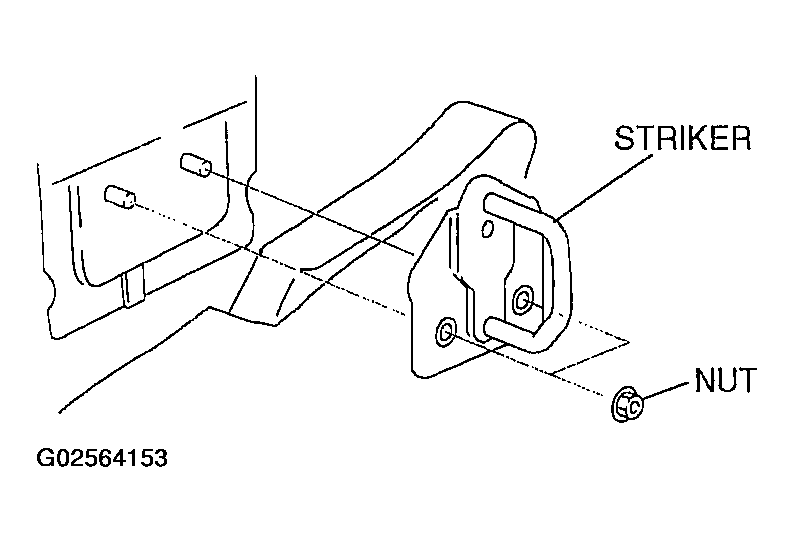

    Fig 1: Removing/Installing Third Row Seat Striker
    G02564153Courtesy of MAZDA MOTORS CORP.
