Sunroof Unit Disassembly/Assembly: Notes
- Disconnect the negative battery cable.
- Remove the deflector.
- Remove the glass panel.

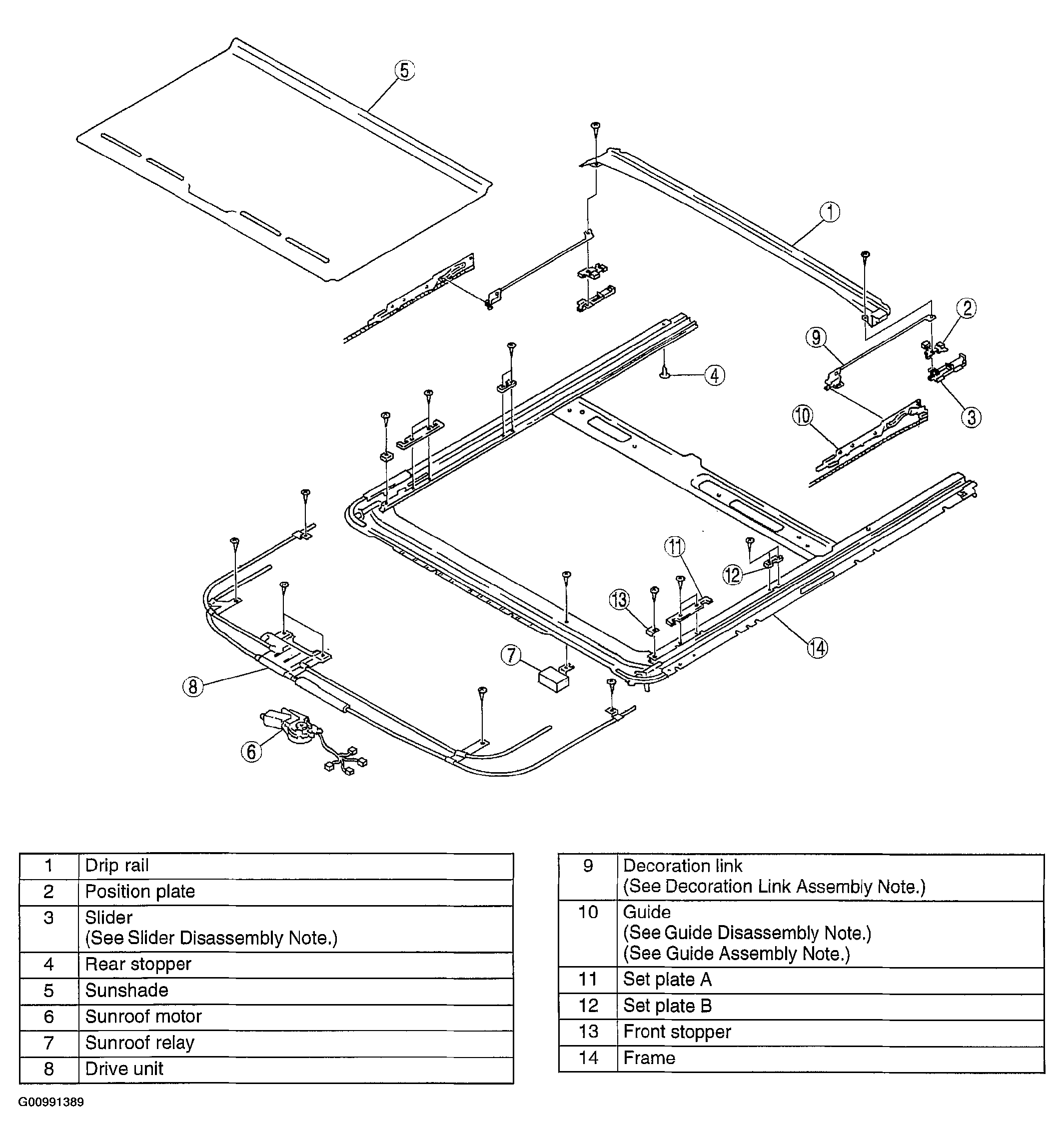

- Disassemble in the order indicated in the figure.
Courtesy of MAZDA MOTORS CORP.
- Assemble in the reverse order of disassembly.
