Abs System Diagram
Abs System Diagram

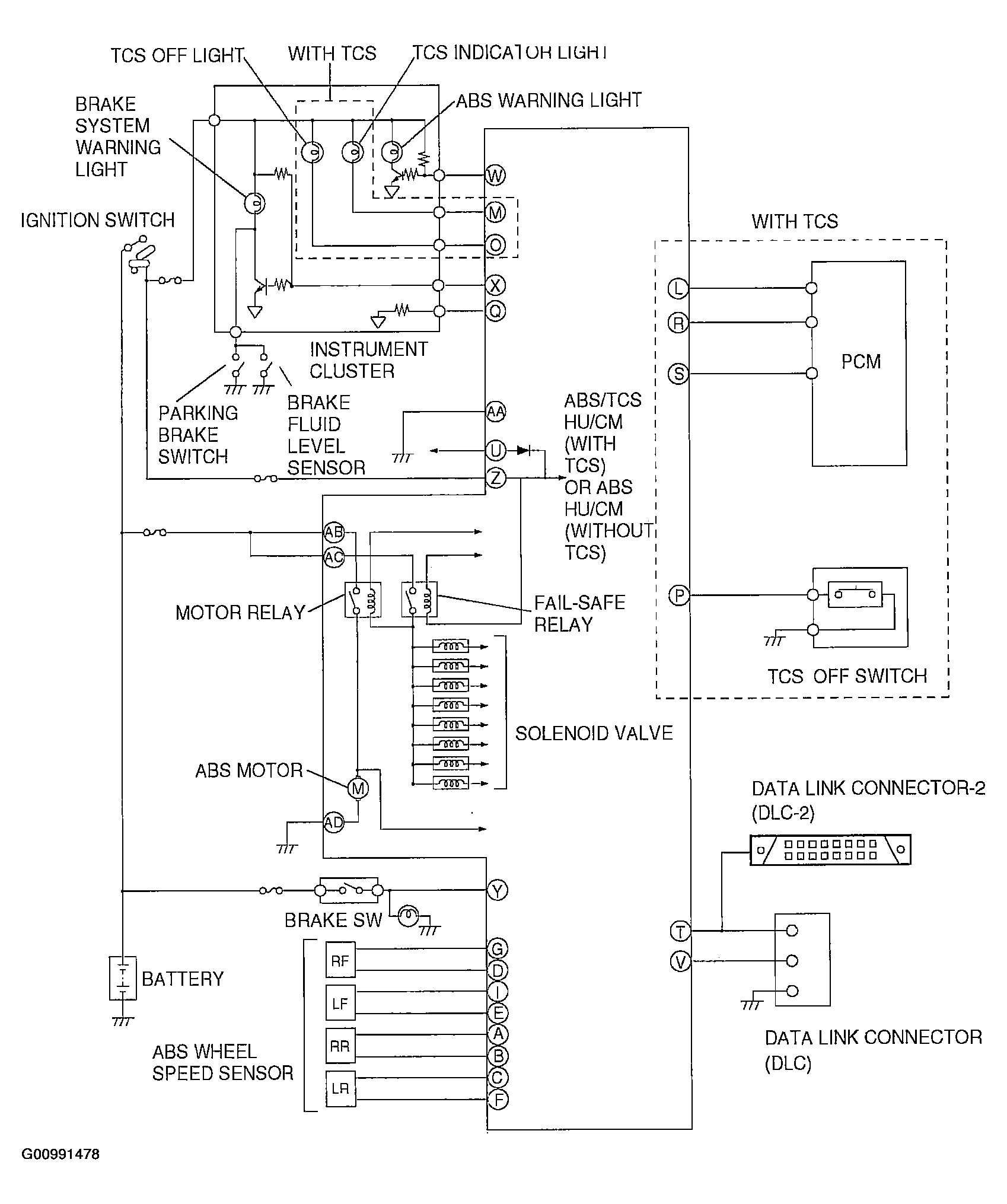

Fig 1: ABS System Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
