Front Abs Wheel-Speed Sensor Removal/Installation

For left side, remove the air cleaner and air filter. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION
Remove in the order indicated in the illustration.
Install in the reverse order of removal.

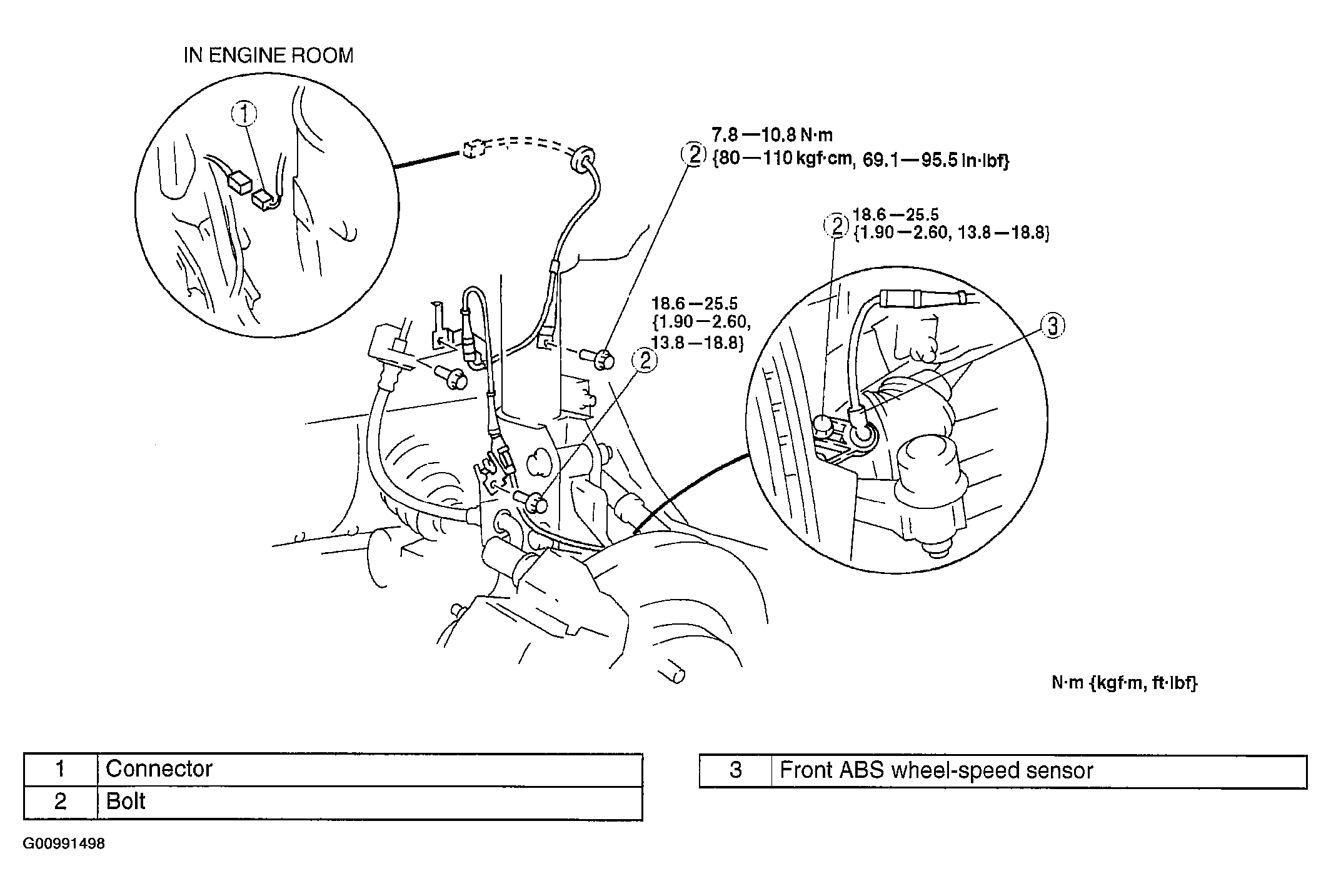

Fig 1: Removing/Installing Front ABS Wheel-Speed Sensor
Courtesy of MAZDA MOTORS CORP.
