Symptom Troubleshooting [Brake System)
›
Symptom Troubleshooting
›
With TCS
With TCS

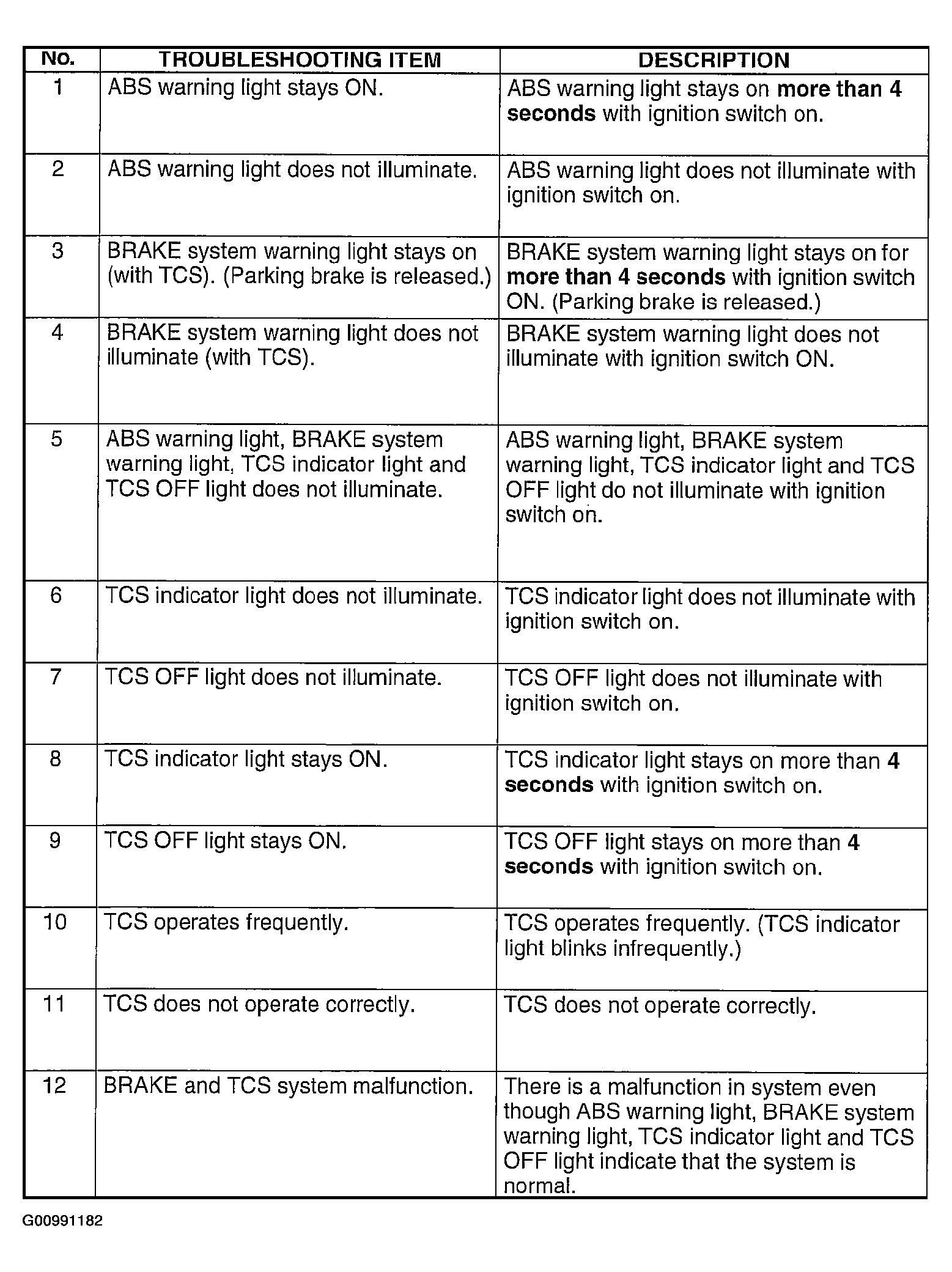

Fig 1: Symptom Troubleshooting - With TCS
Courtesy of MAZDA MOTORS CORP.

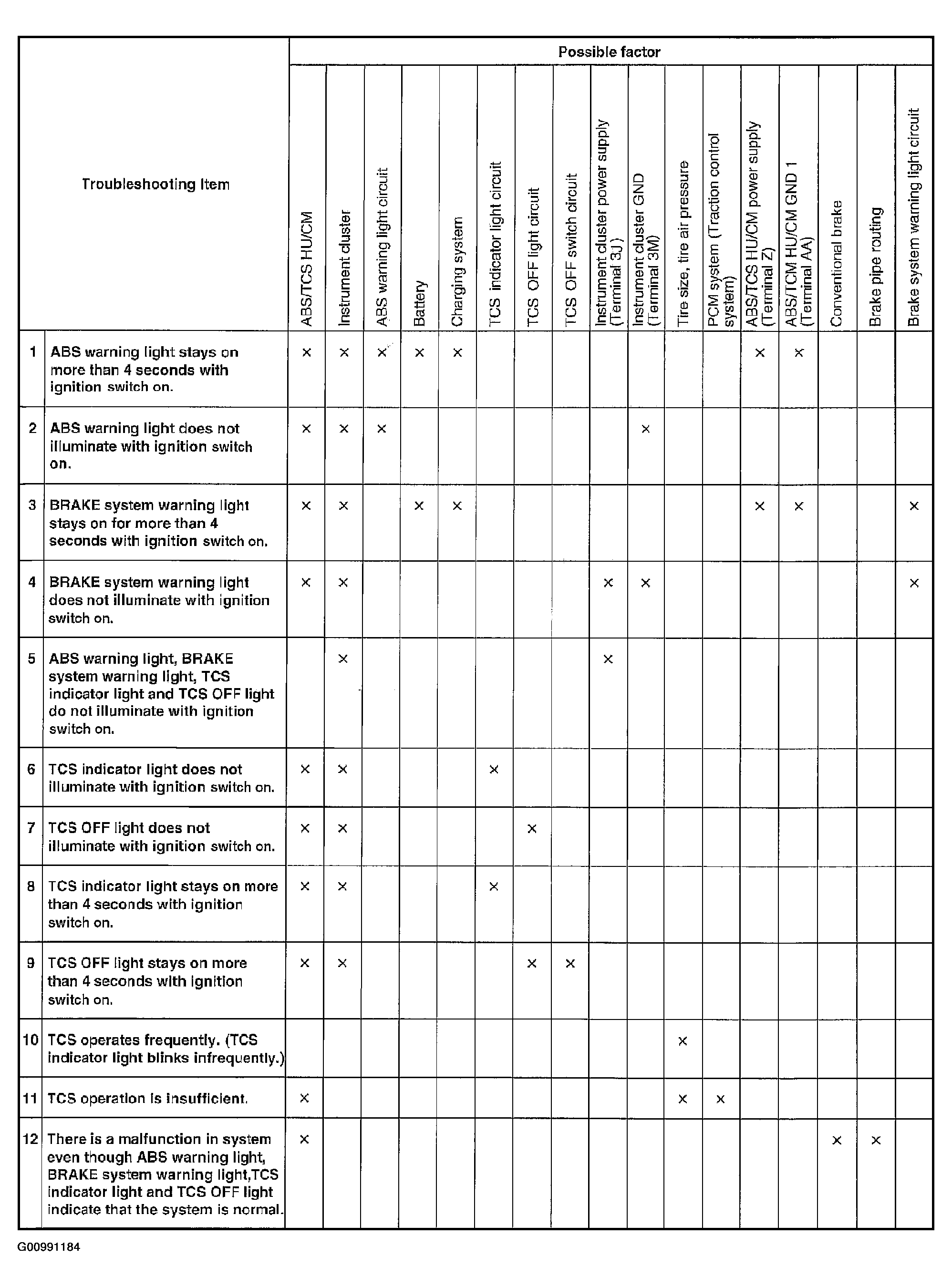

Fig 2: Troubleshooting & Possible Factors - With TCS
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
