TCS Off Switch Removal/Installation

  1. Press the hooks of the TCS OFF switch and pull the switch out.
  2. Disconnect the connector.
  3. Install in the reverse order of removal

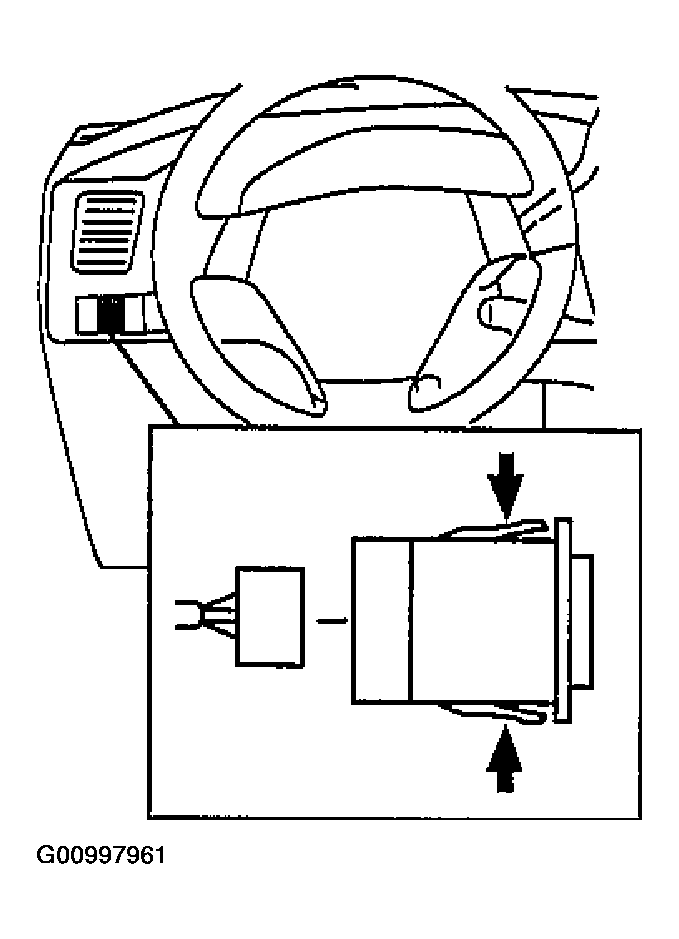

    Fig 1: Removing/Installing TCS OFF Switch
    G00997961Courtesy of MAZDA MOTORS CORP.
