Wiper & Washer Switch Connector End View
Wiper & Washer Switch Connector End View

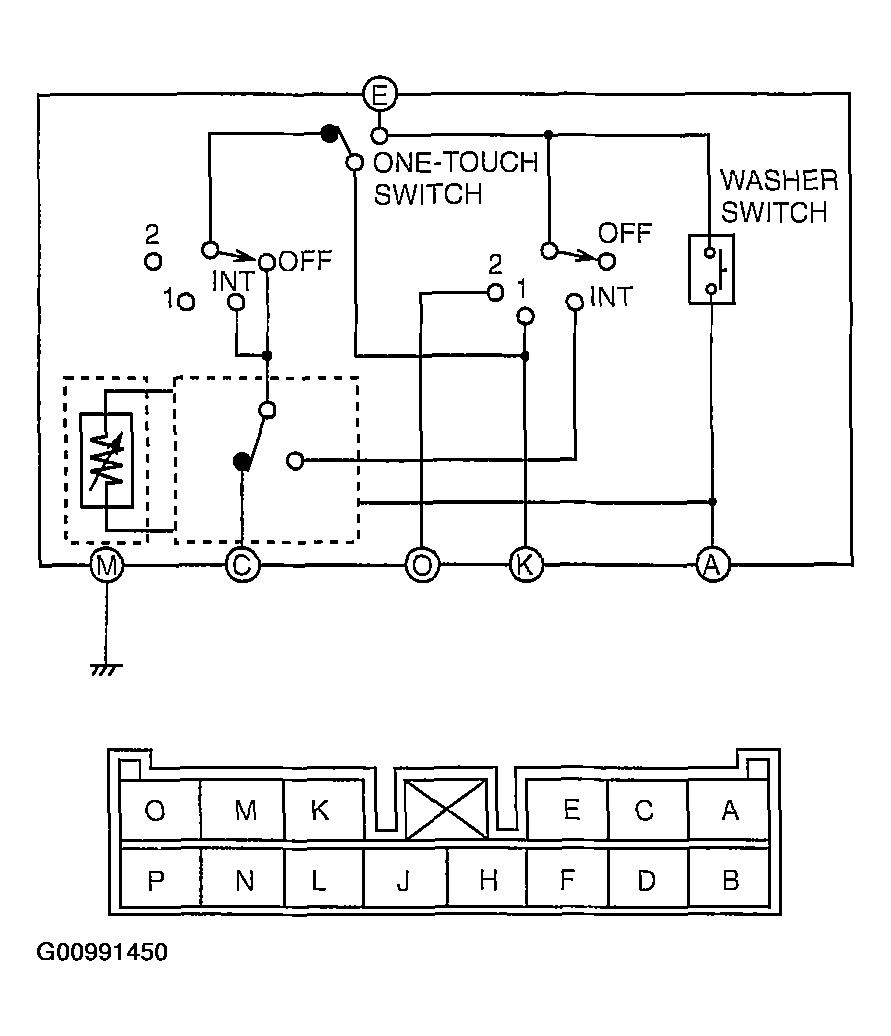

Fig 1: Wiper & Washer Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
