Fuel System Location Index
›
Engine Room Side
Engine Room Side

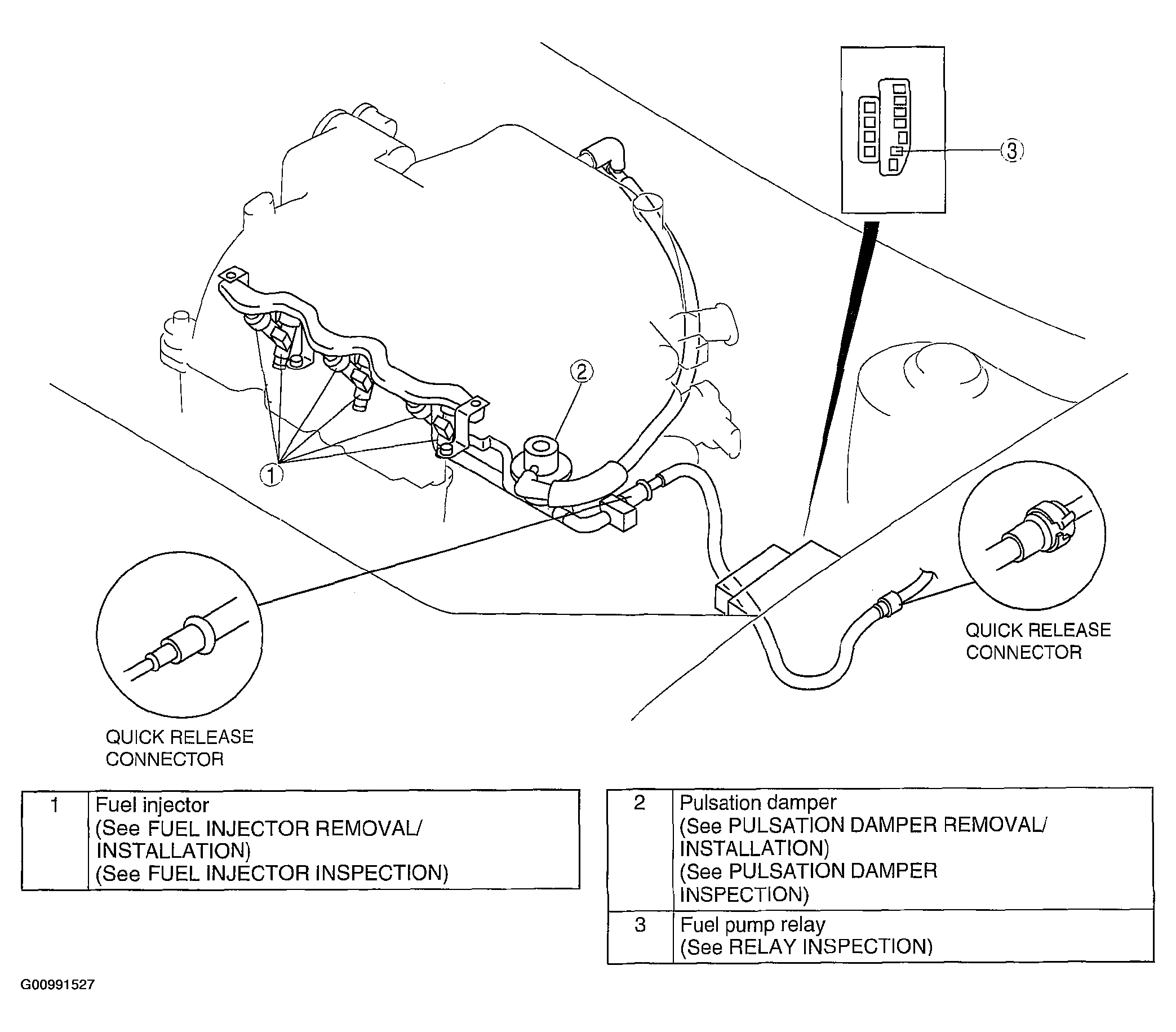

Fig 1: Fuel System Location Index (Engine Room Side)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
