Joint Hose Installation Note

Fit the joint hose onto the respective fittings, and install clamps as shown.

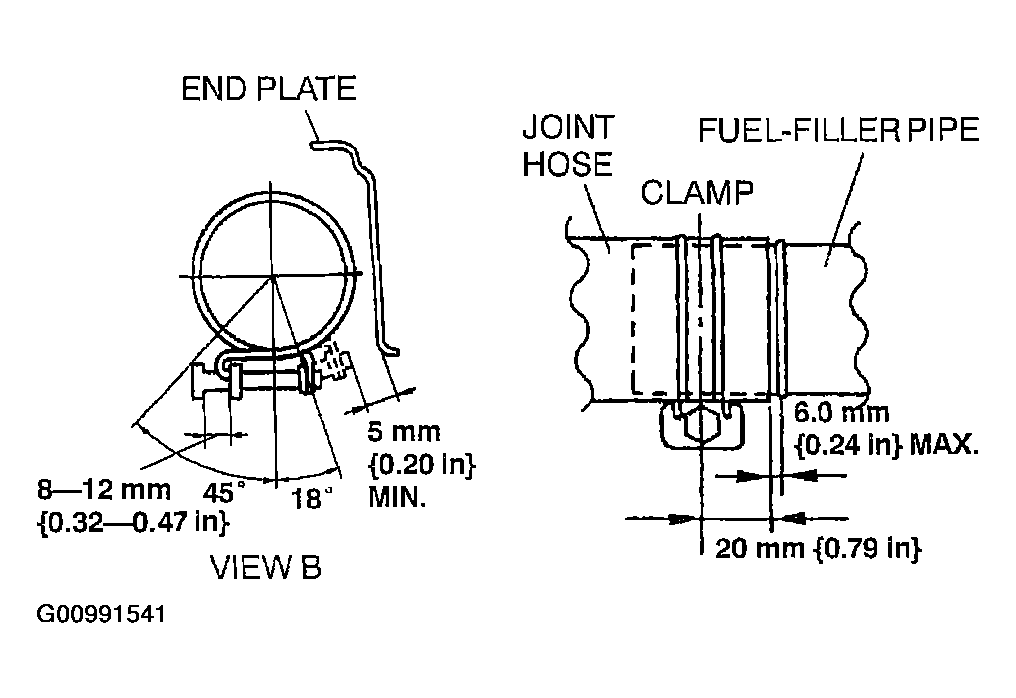

Fig 1: Installing Joint Hose On Fuel Tank
Courtesy of MAZDA MOTORS CORP.

Fig 2: Installing Joint Hose On Filler Pipe
Courtesy of MAZDA MOTORS CORP.
