Engine Technical Data

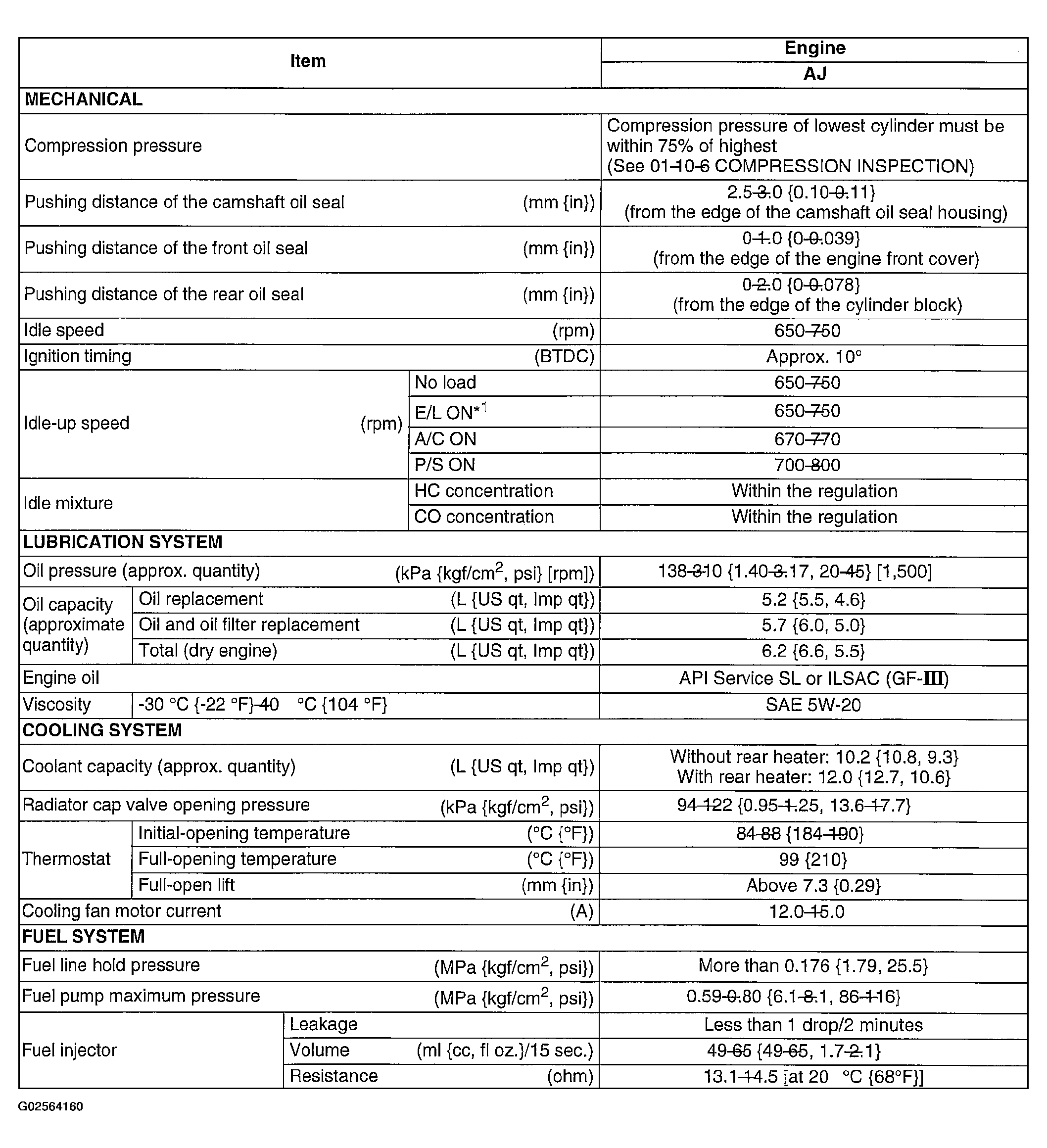

Fig 1: Engine Technical Data Table (1 Of 2)
G02564160Courtesy of MAZDA MOTORS CORP.

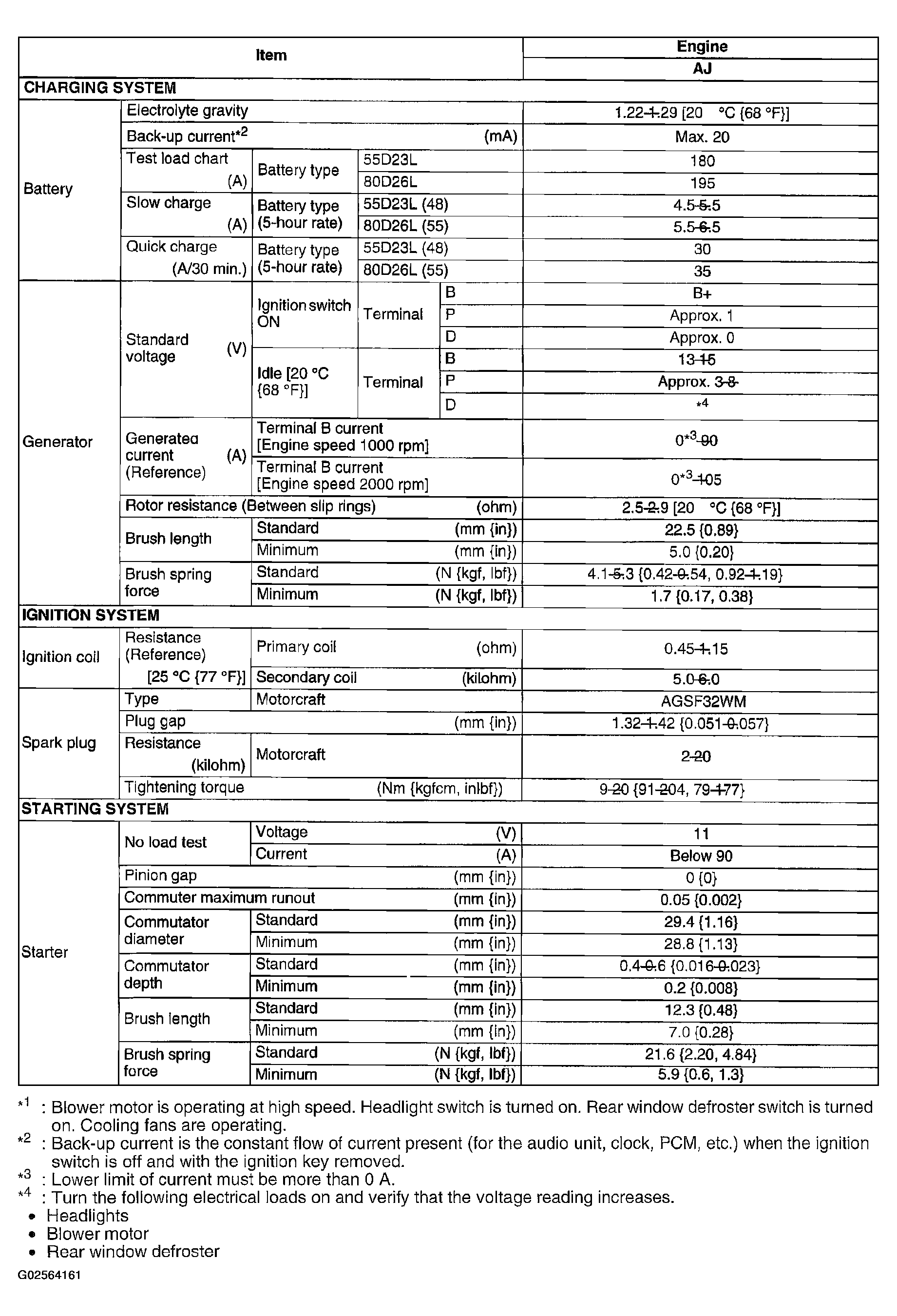

Fig 2: Engine Technical Data Table (2 Of 2)
G02564161Courtesy of MAZDA MOTORS CORP.
