Inspection Using An Oscilloscope (Reference)
›
Cooling fan control signal
Cooling fan control signal

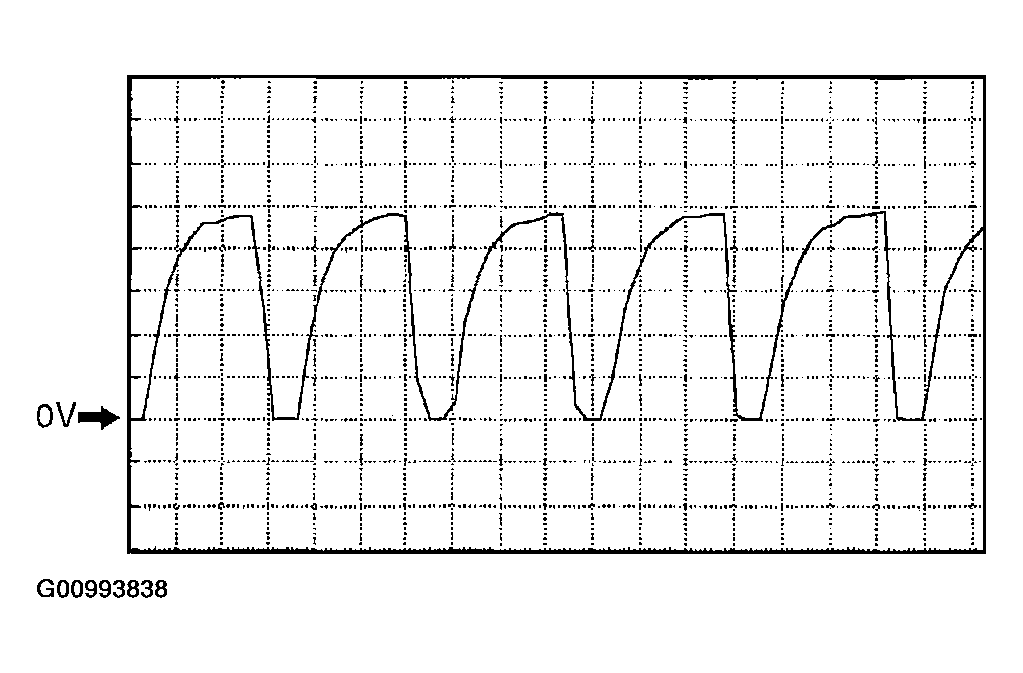

Fig 1: Cooling Fan Control Signal Inspection By Using Oscilloscope (Reference)
Courtesy of MAZDA MOTORS CORP.
PCM terminal: 44(+)-103(-)
Oscilloscope setting: 1V/DIV (Y), 10ms/DIV (X), DC range
Vehicle condition: idle after warm up
Courtesy of MAZDA MOTORS CORP.
