Purge control signal

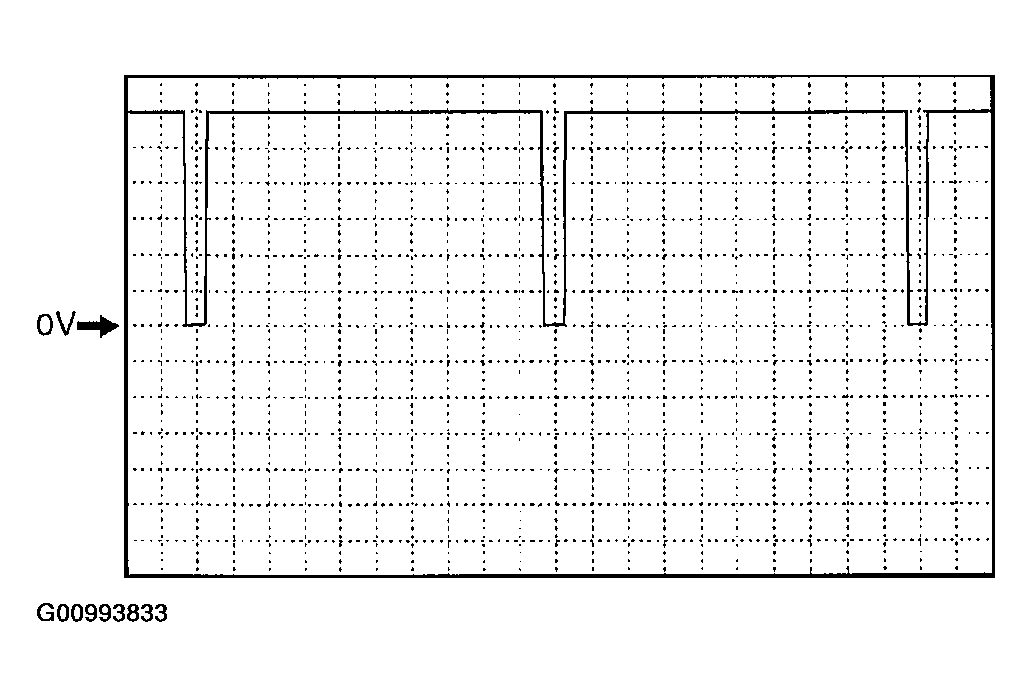

Fig 1: Purge Control Signal Inspection By Using Oscilloscope (Reference)

G00993833

Courtesy of MAZDA MOTORS CORP.

PCM terminal: 18(+)-103(-)
Oscilloscope setting: 2V/DIV (Y), 10ms/DIV (X), DC range
Vehicle condition: idle after warm up
