Inspection Using An Oscilloscope (Reference)
›
Vehicle speed signal
Vehicle speed signal

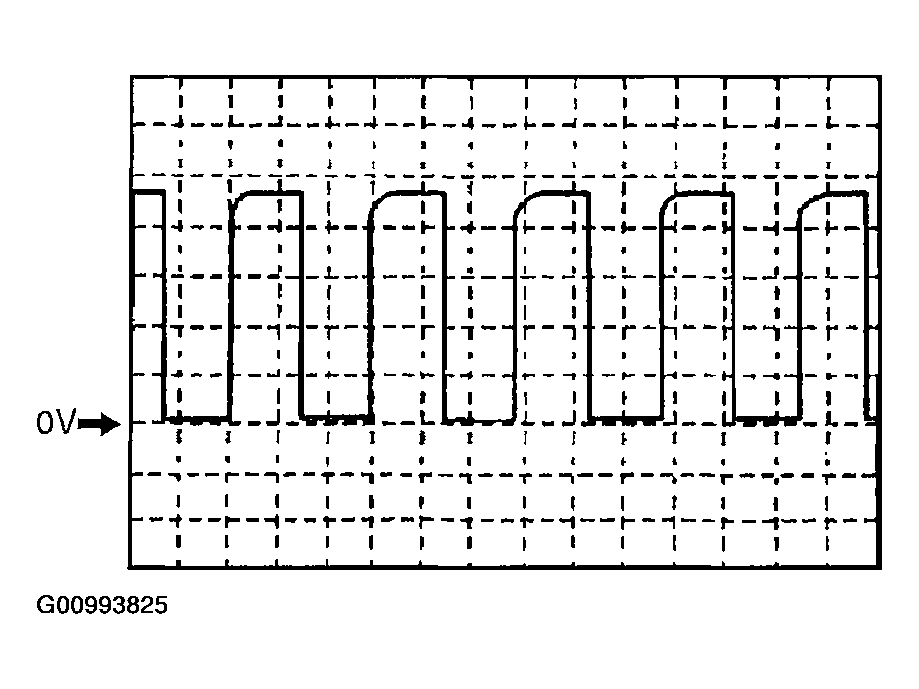

Fig 1: Vehicle Speed Signal Inspection By Using Oscilloscope (Reference)
Courtesy of MAZDA MOTORS CORP.
PCM terminal: 58(+)-24(-)
Oscilloscope setting: 1V/DIV (Y), 25ms/DIV(X), DC range
Vehicle condition: Driving speed 60 km/h [37 mph]
Courtesy of MAZDA MOTORS CORP.
