Diagnostic Procedure

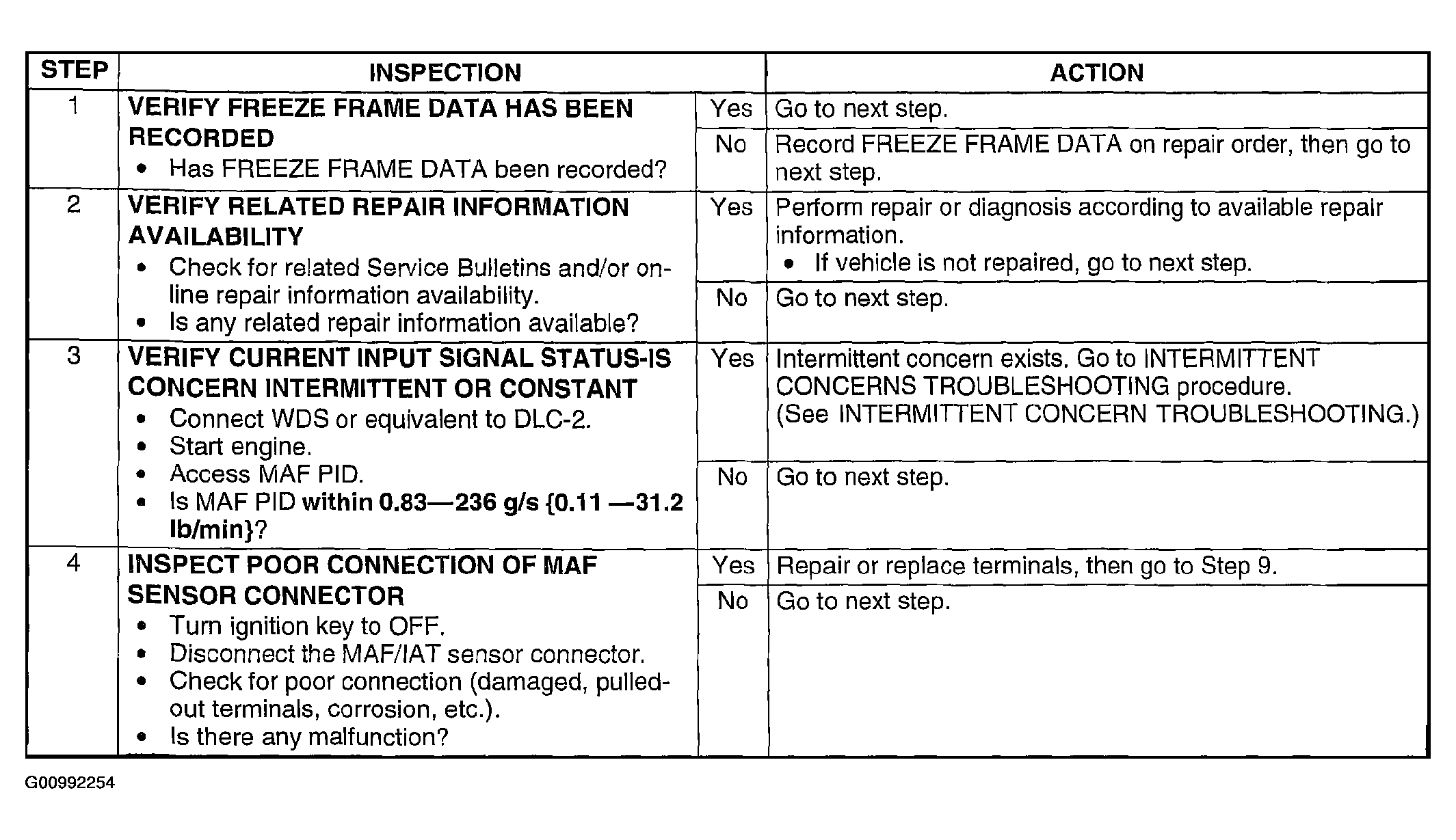

Fig 1: DTC P0102 Diagnostic Procedure Chart (Step 1-4)
G00992254Courtesy of MAZDA MOTORS CORP.

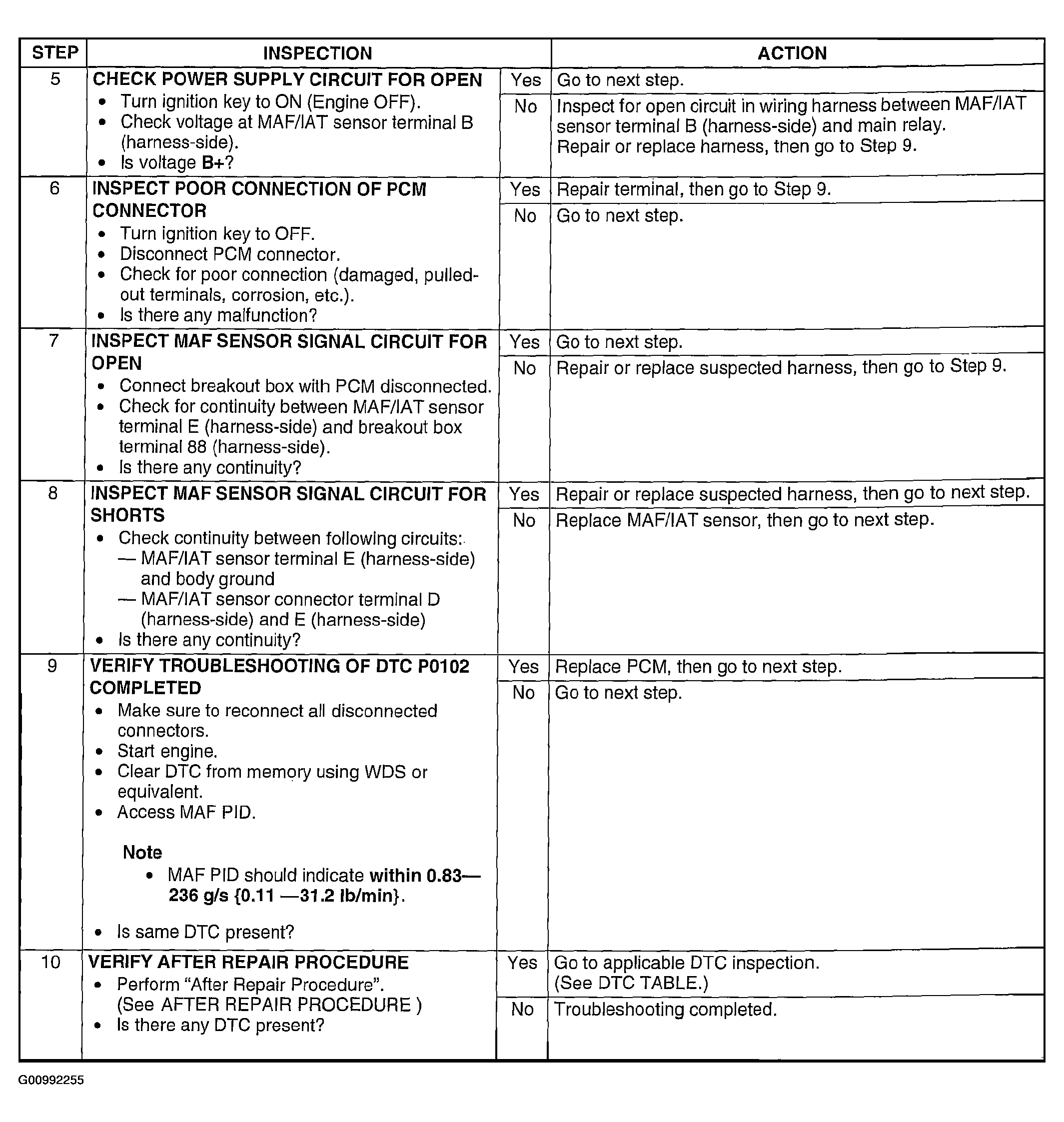

Fig 2: DTC P0102 Diagnostic Procedure Chart (Step 5-10)
G00992255Courtesy of MAZDA MOTORS CORP.
