Diagnostic Procedure

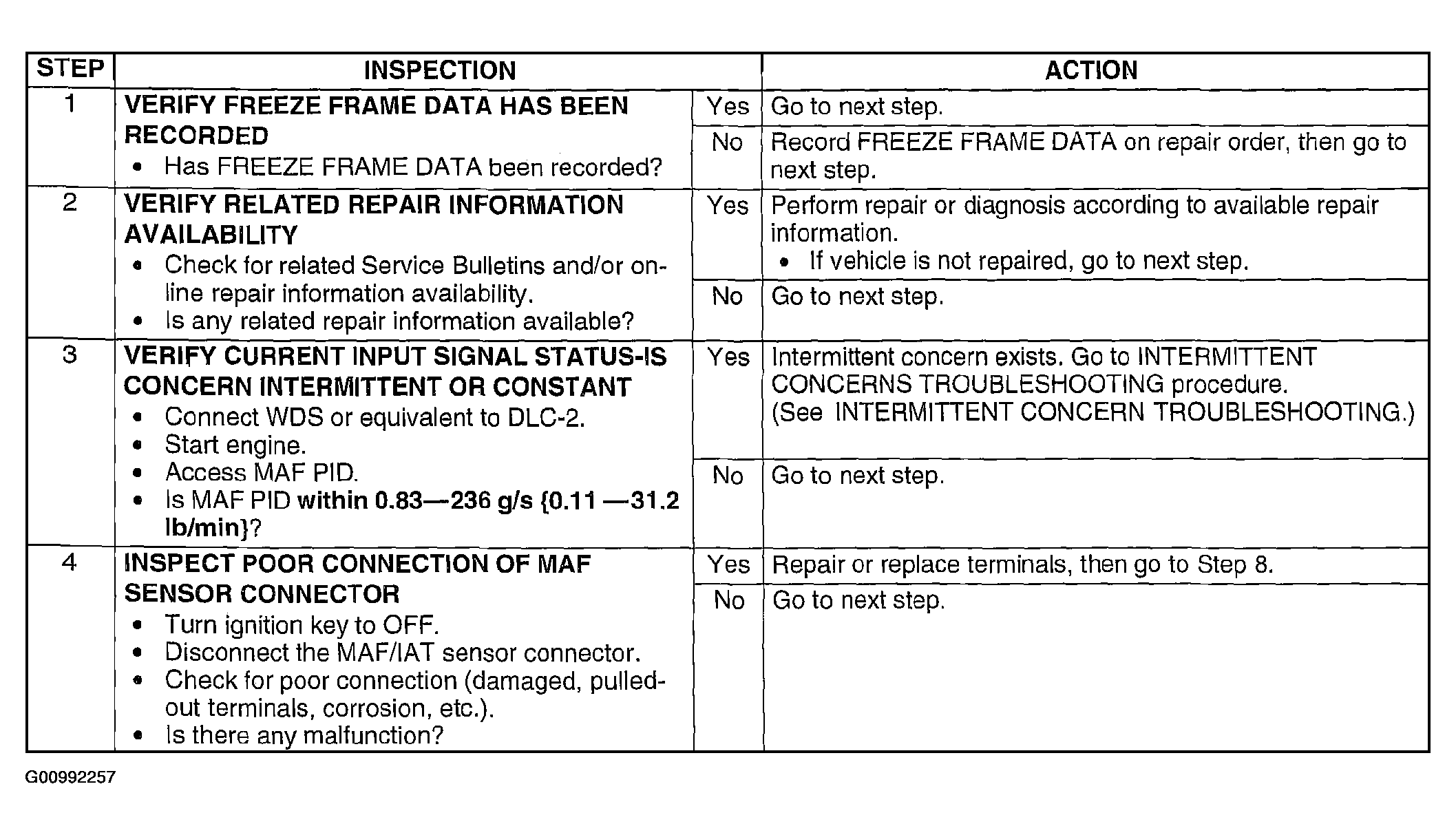

Fig 1: DTC P0103 Diagnostic Procedure Chart (Step 1-4)
G00992257Courtesy of MAZDA MOTORS CORP.

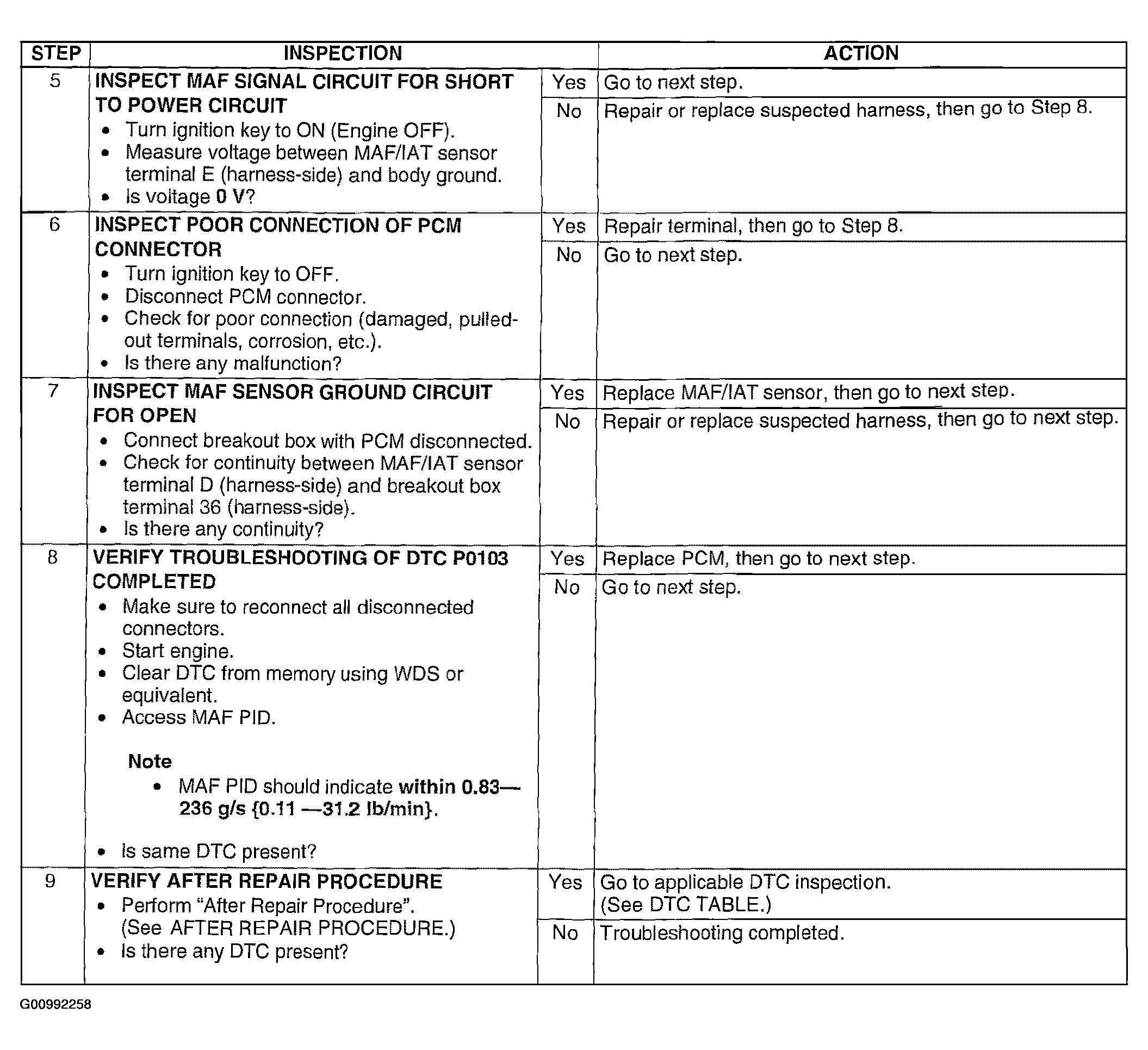

Fig 2: DTC P0103 Diagnostic Procedure Chart (Step 5-9)
G00992258Courtesy of MAZDA MOTORS CORP.
