Diagnostic Procedure

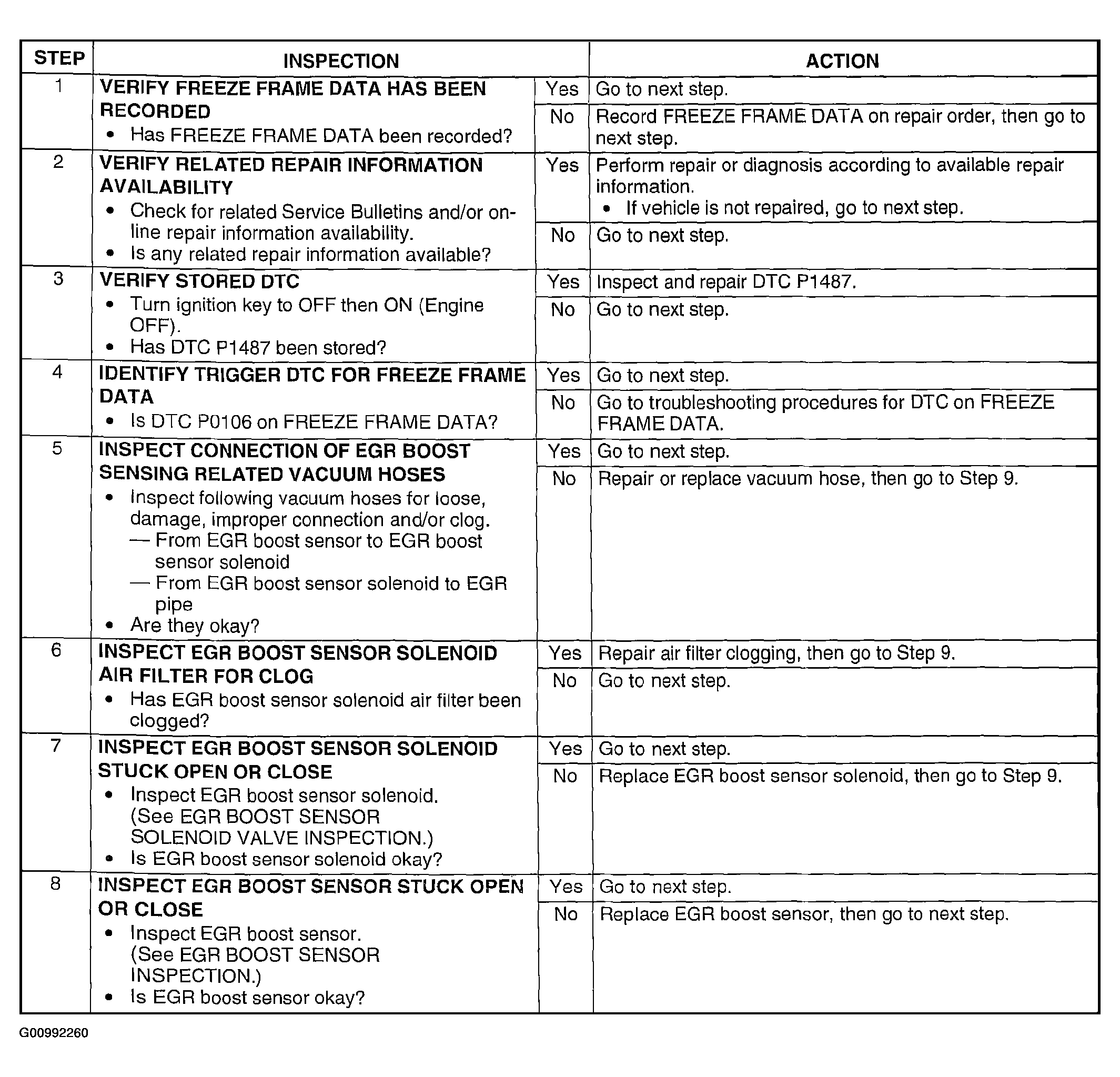

Fig 1: DTC P0106 Diagnostic Procedure Chart (Step 1-8)
G00992260Courtesy of MAZDA MOTORS CORP.

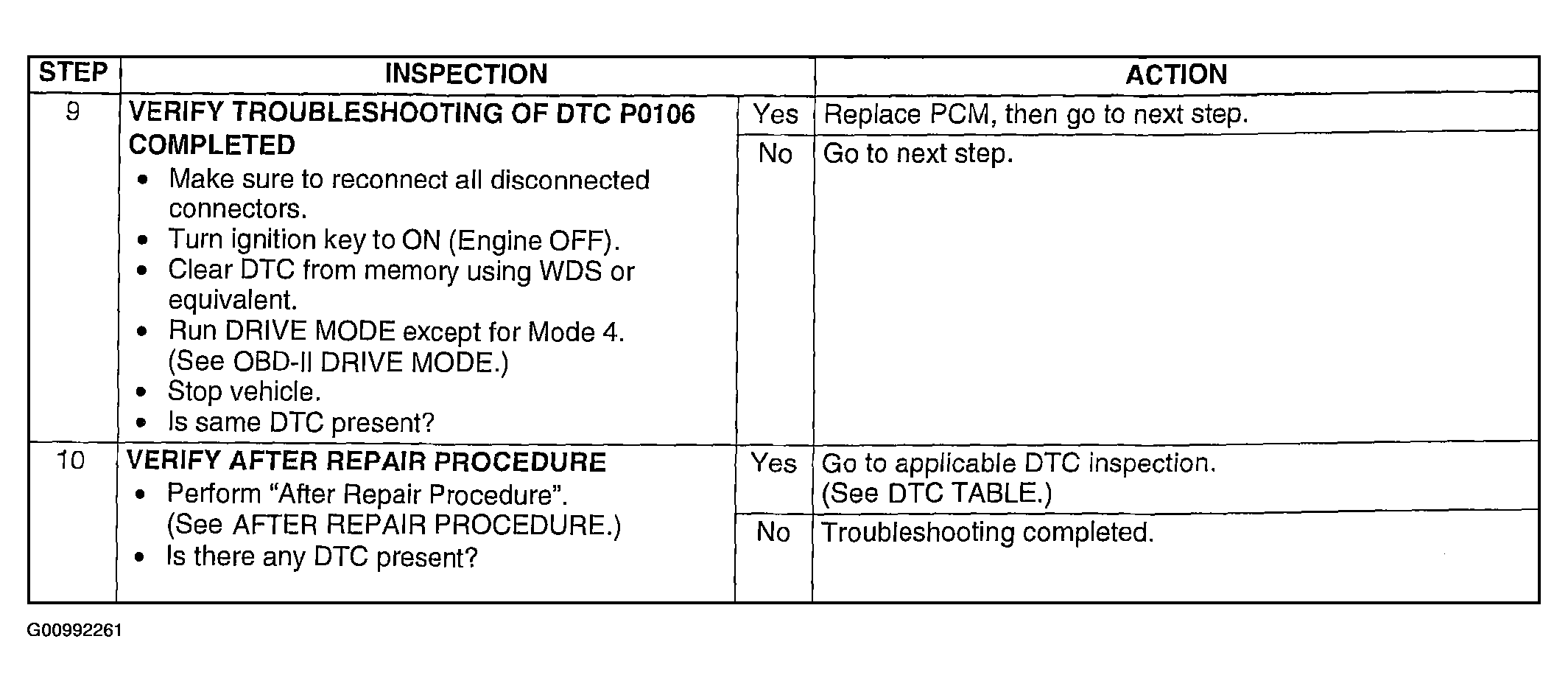

Fig 2: DTC P0106 Diagnostic Procedure Chart (Step 9-10)
G00992261Courtesy of MAZDA MOTORS CORP.
