DTC P0106: EGR Boost Sensor Circuit Performance Problem
›
Notes
DTC P0106: EGR Boost Sensor Circuit Performance Problem: Notes

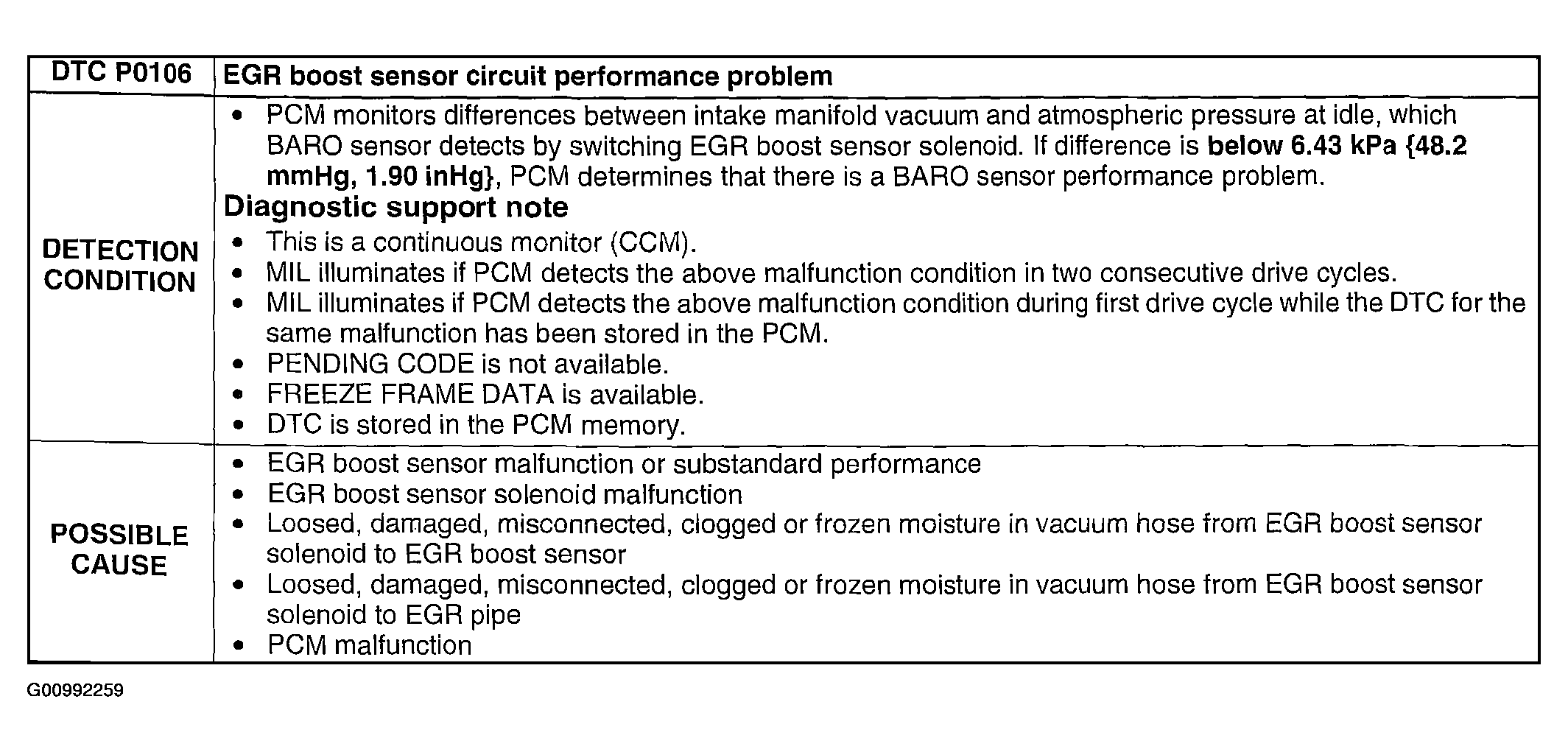

Fig 1: DTC P0106 Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
