Diagnostic Procedure

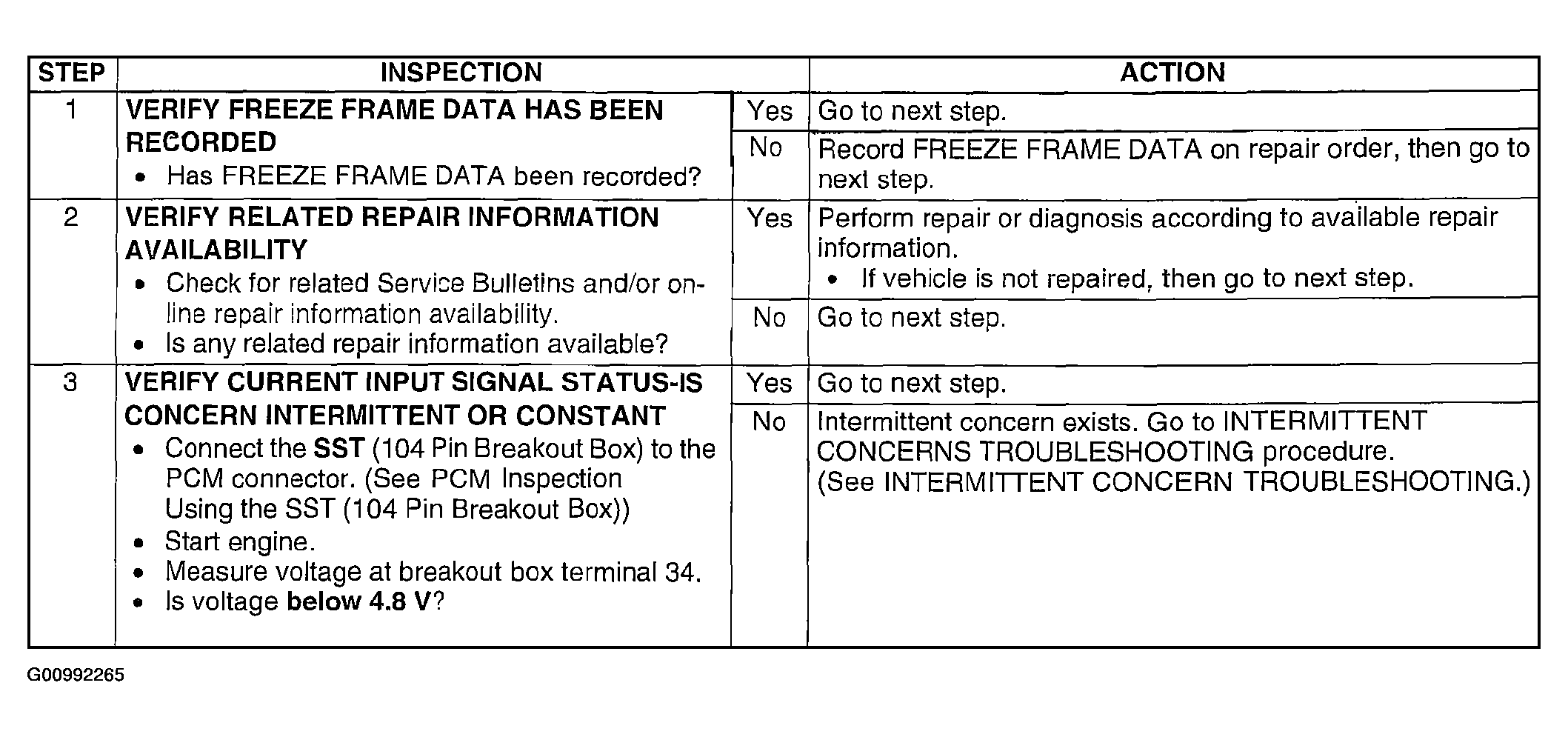

Fig 1: DTC P0108 Diagnostic Procedure Chart (Step 1-3)
G00992265Courtesy of MAZDA MOTORS CORP.

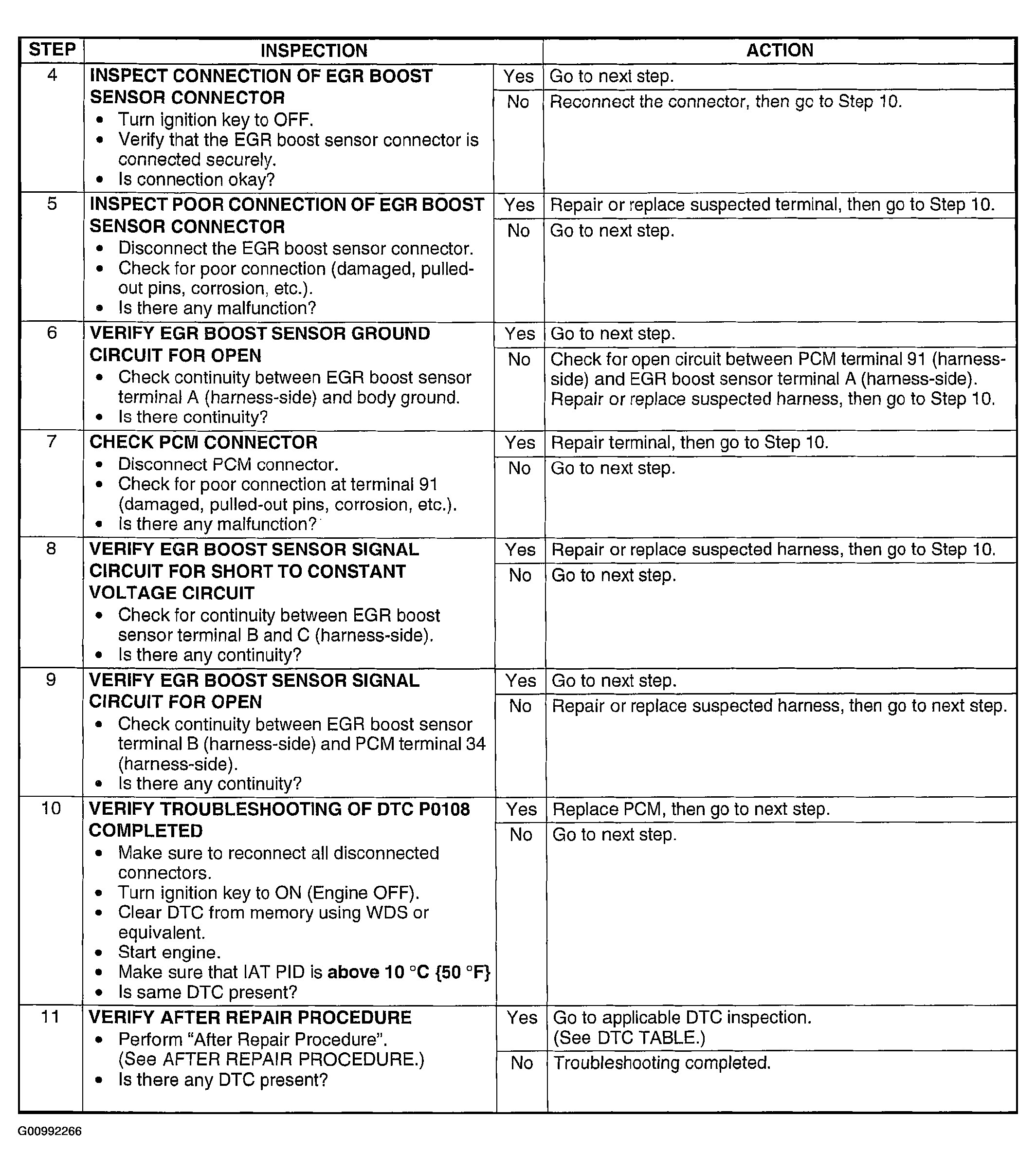

Fig 2: DTC P0108 Diagnostic Procedure Chart (Step 4-11)
G00992266Courtesy of MAZDA MOTORS CORP.
