DTC P0116: ECT Circuit Performance Problem
›
Diagnostic Procedure
Diagnostic Procedure

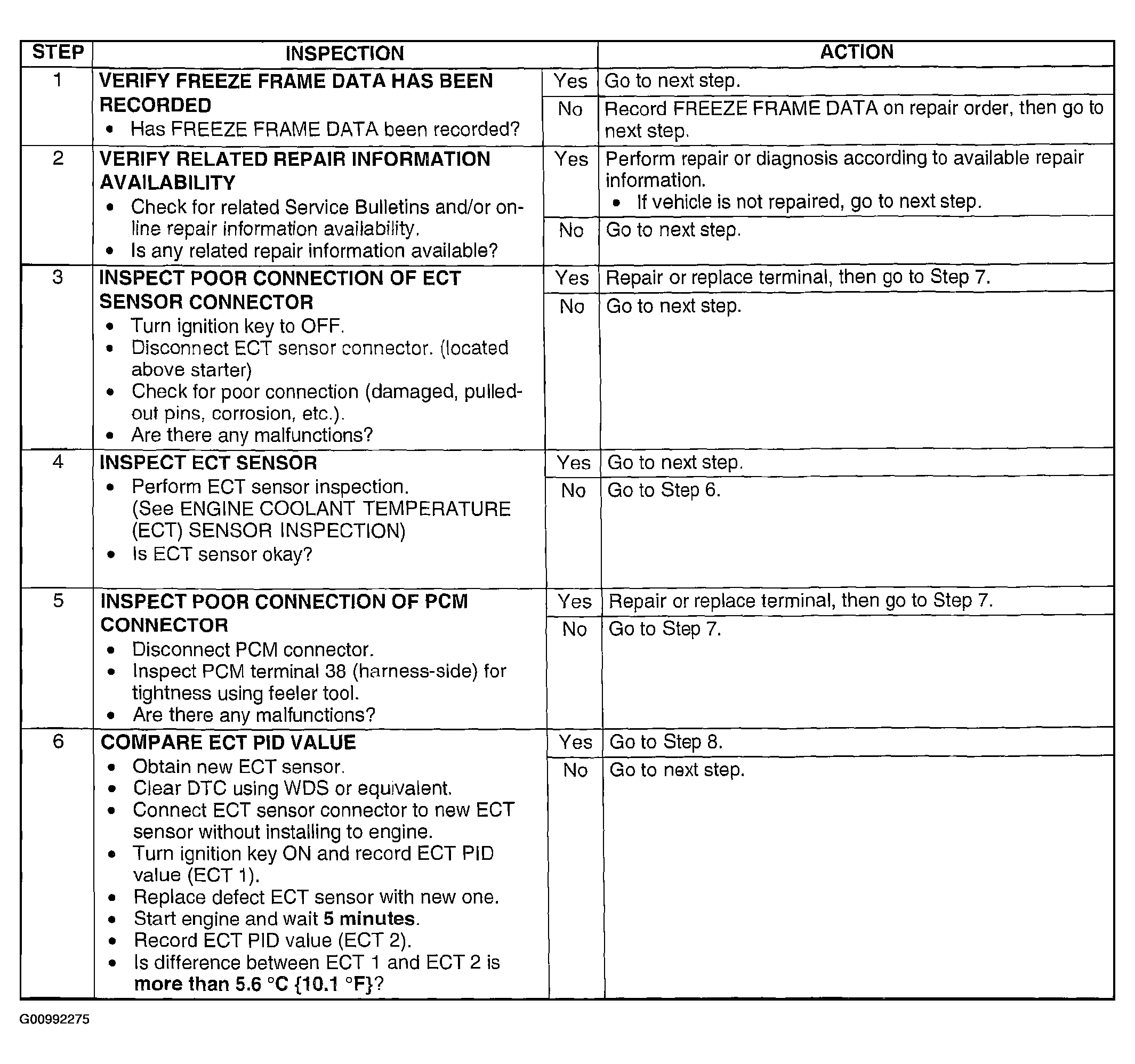

Fig 1: DTC P0116 Diagnostic Procedure Chart (Step 1-6)
Courtesy of MAZDA MOTORS CORP.

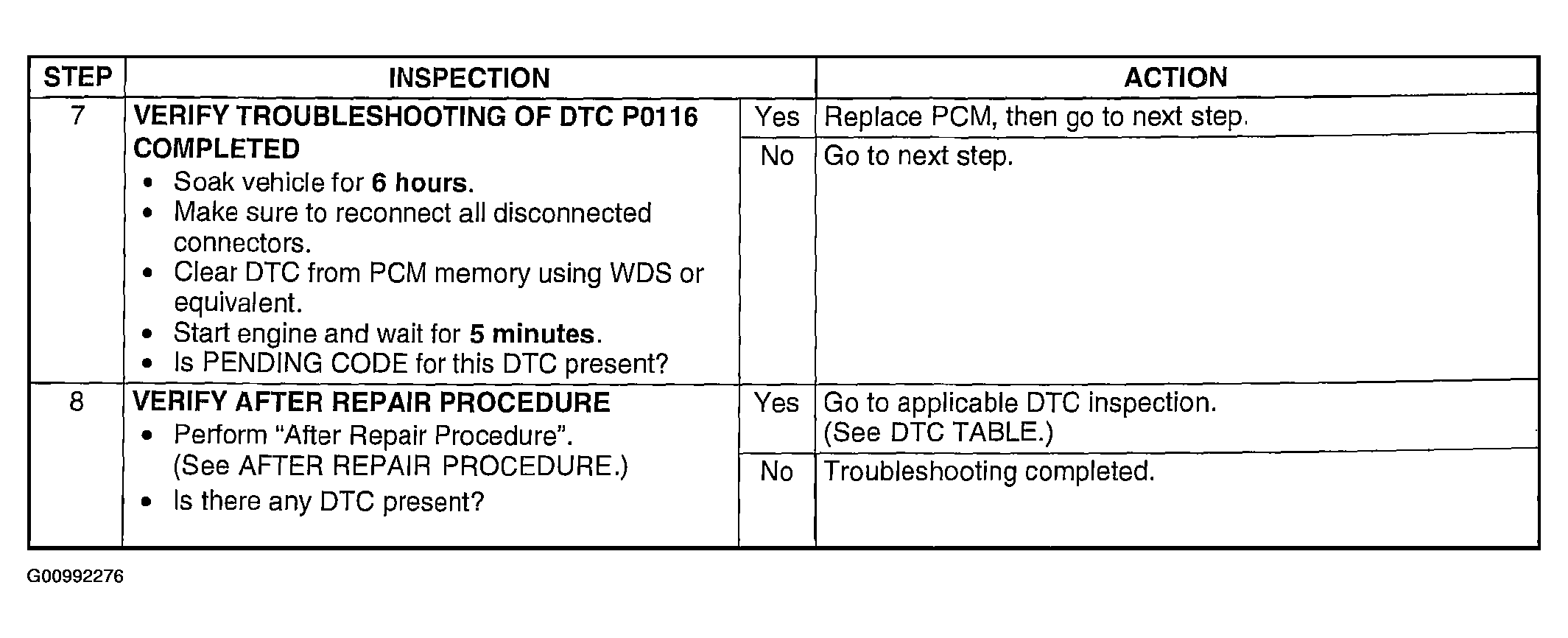

Fig 2: DTC P0116 Diagnostic Procedure Chart (Step 7-8)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
