Diagnostic Procedure

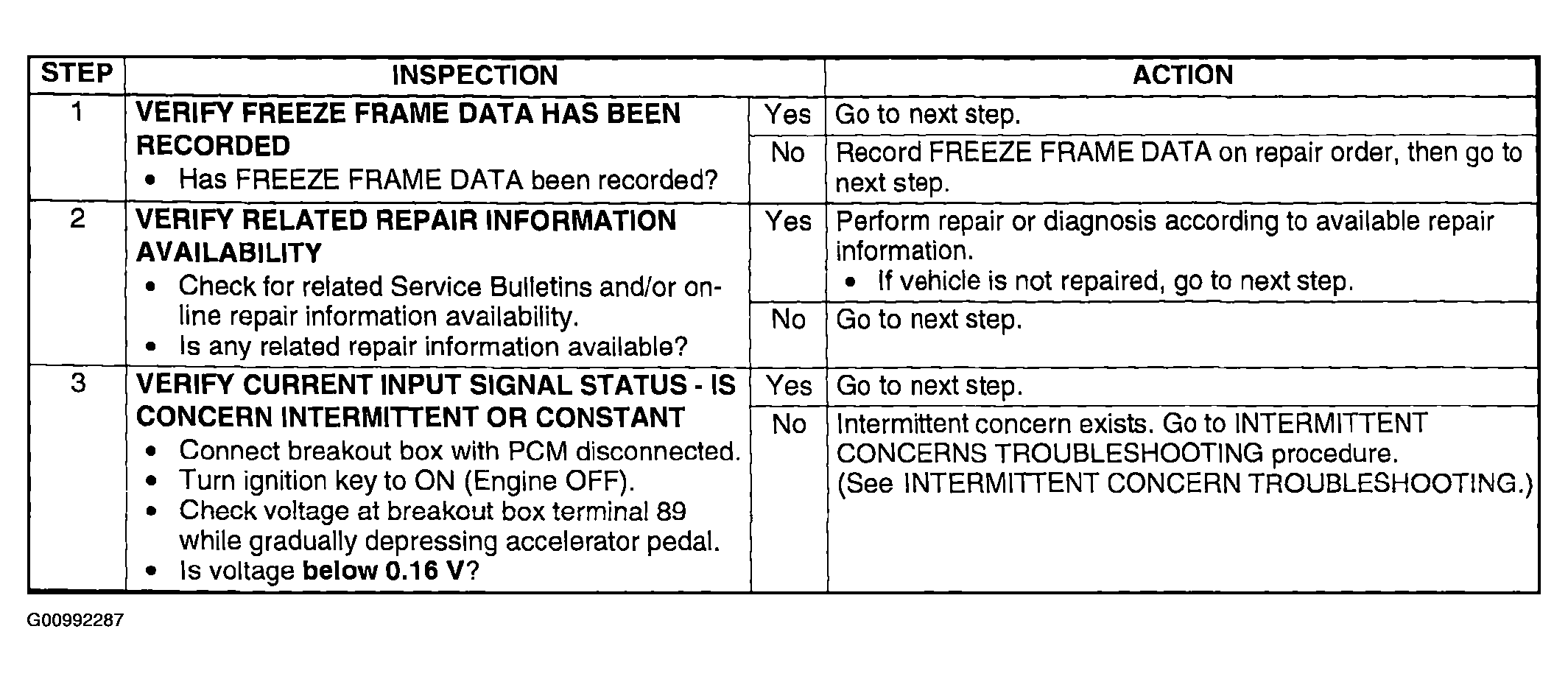

Fig 1: DTC P0122 Diagnostic Procedure Chart (Step 1-3)
G00992287Courtesy of MAZDA MOTORS CORP.

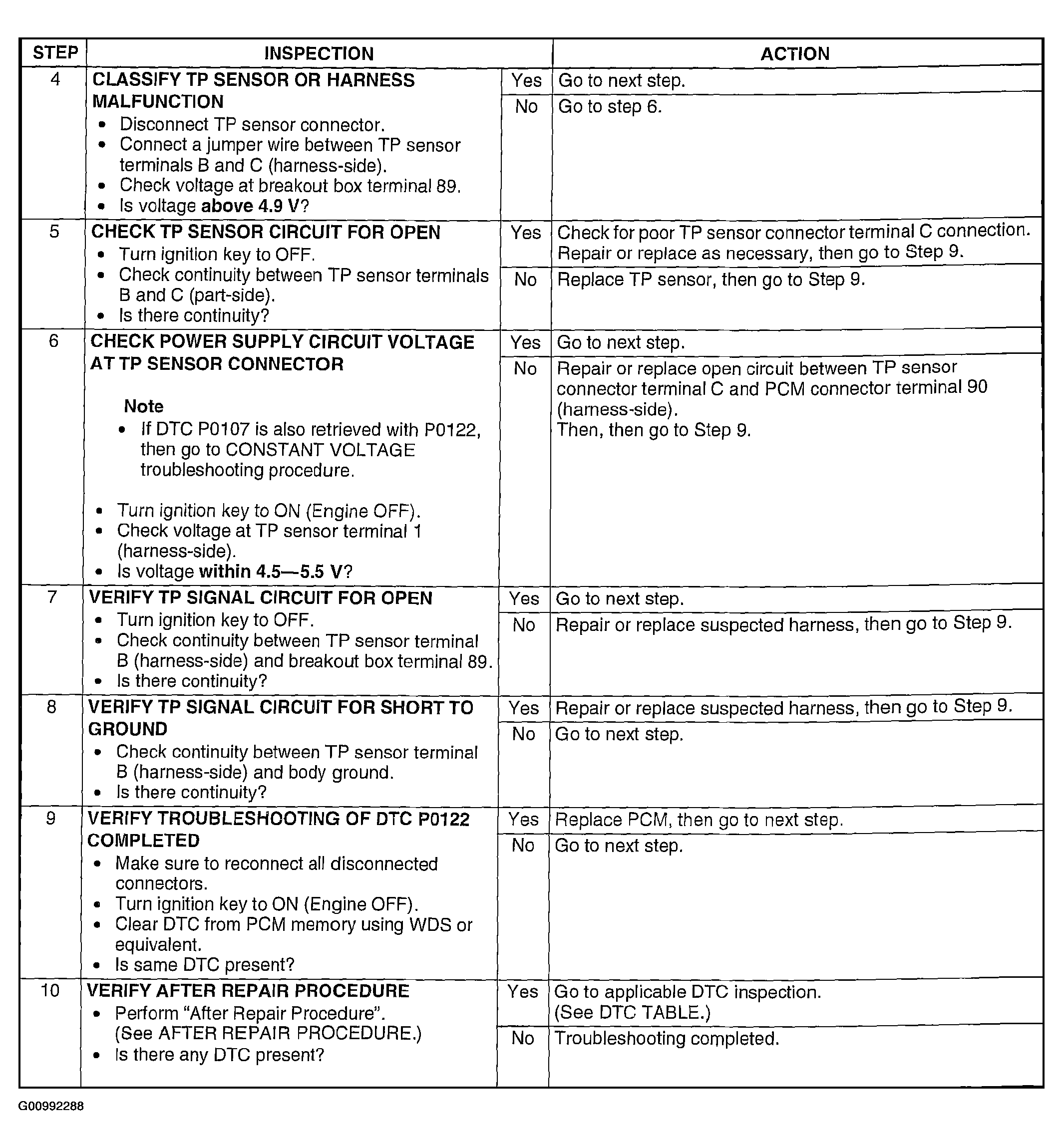

Fig 2: DTC P0122 Diagnostic Procedure Chart (Step 4-10)
G00992288Courtesy of MAZDA MOTORS CORP.
