Diagnostic Procedure

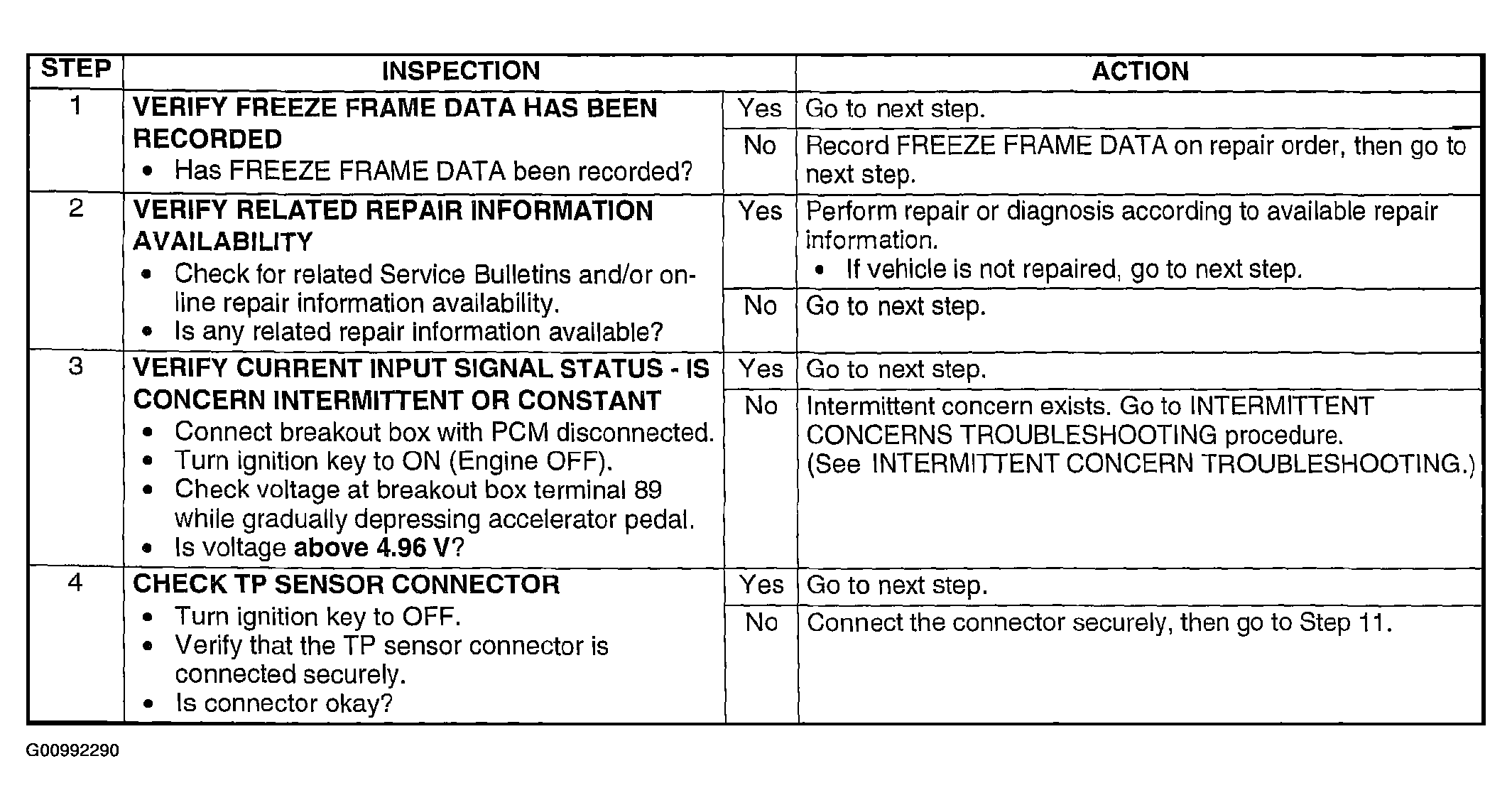

Fig 1: DTC P0123 Diagnostic Procedure Chart (Step 1-4)
G00992290Courtesy of MAZDA MOTORS CORP.

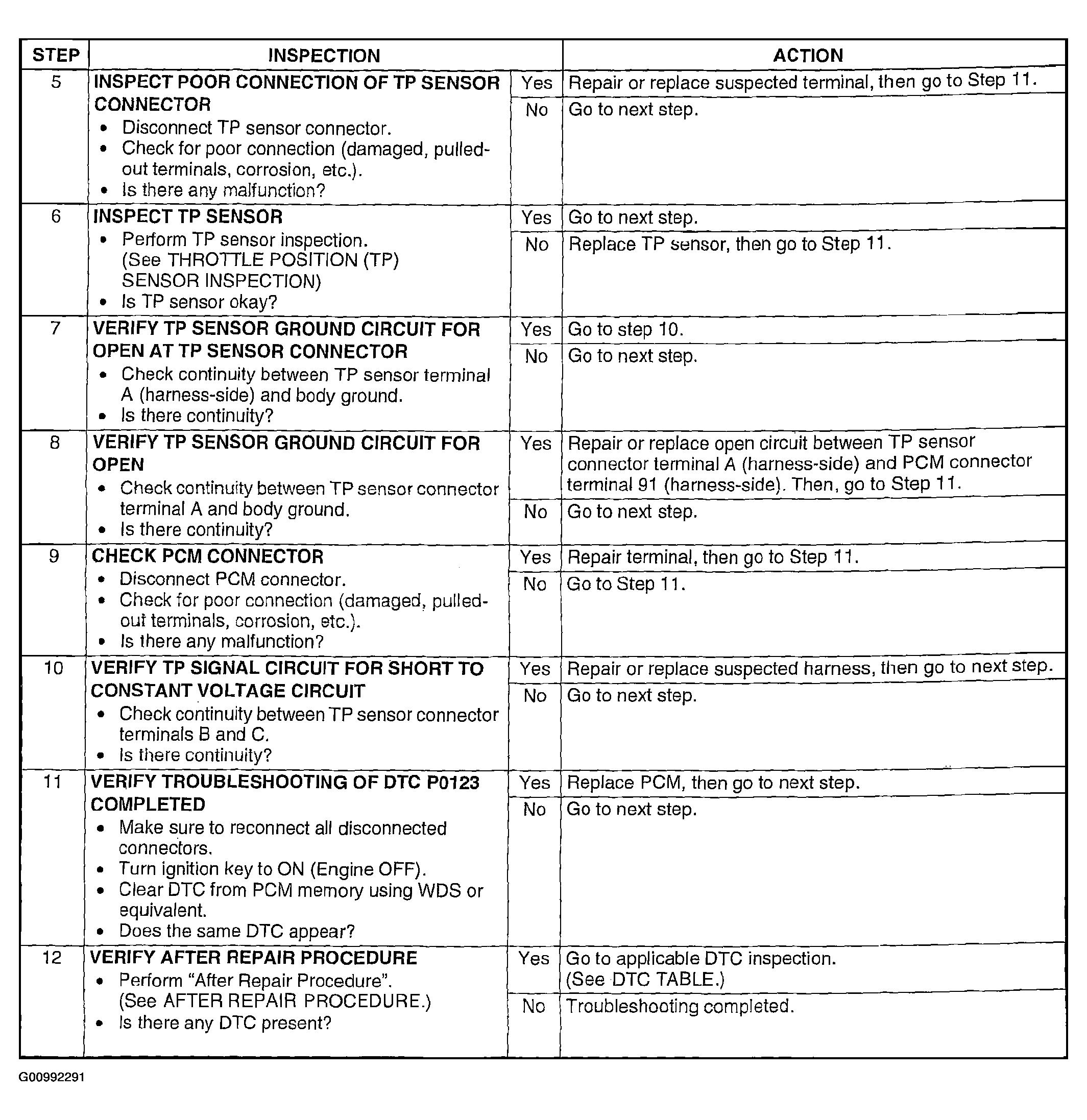

Fig 2: DTC P0123 Diagnostic Procedure Chart (Step 5-12)
G00992291Courtesy of MAZDA MOTORS CORP.
