DTC P0300: Random Misfire Detected
›
Diagnostic Procedure
Diagnostic Procedure

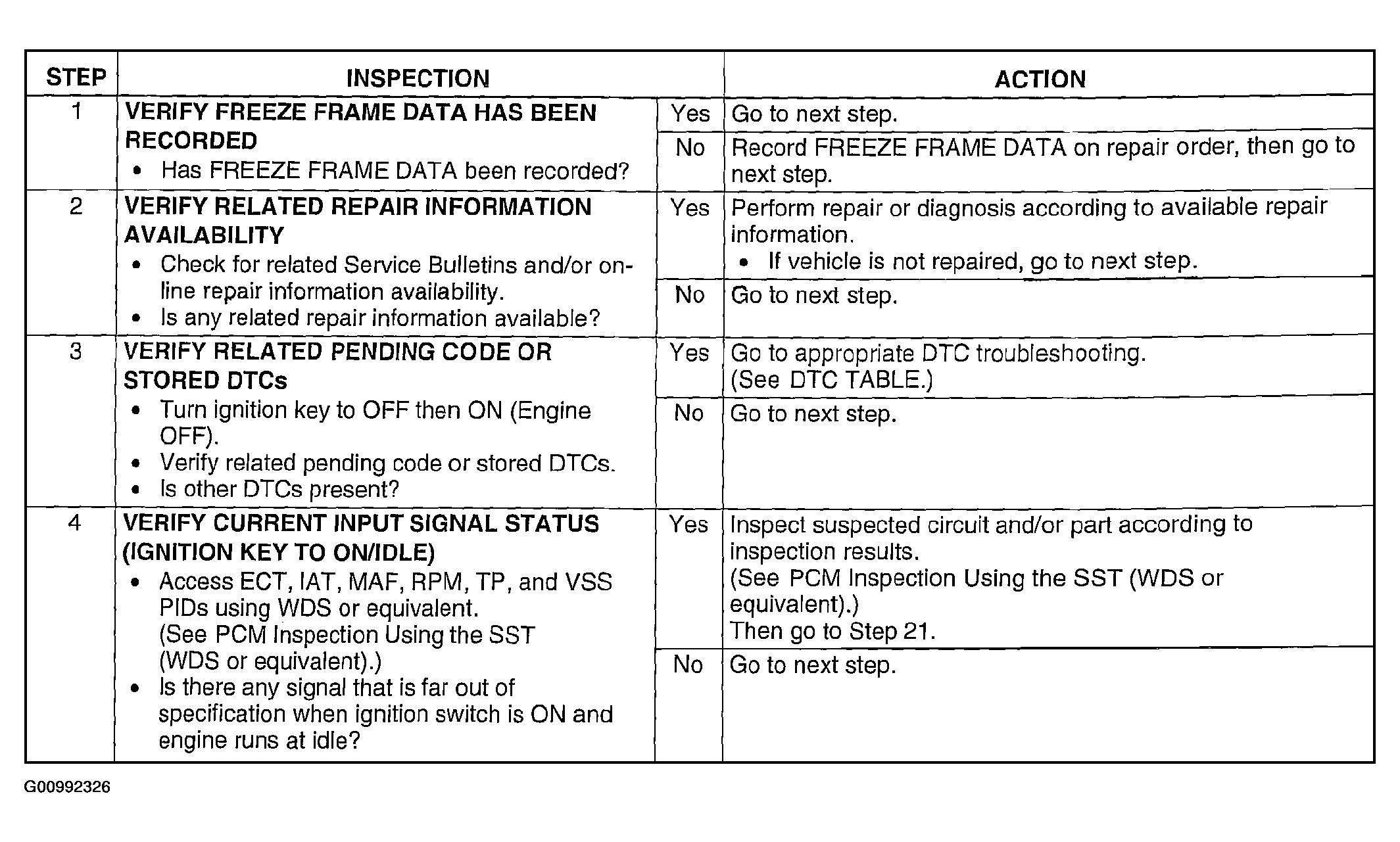

Fig 1: DTC P0300 Diagnostic Procedure Chart (Step 1-4)
Courtesy of MAZDA MOTORS CORP.

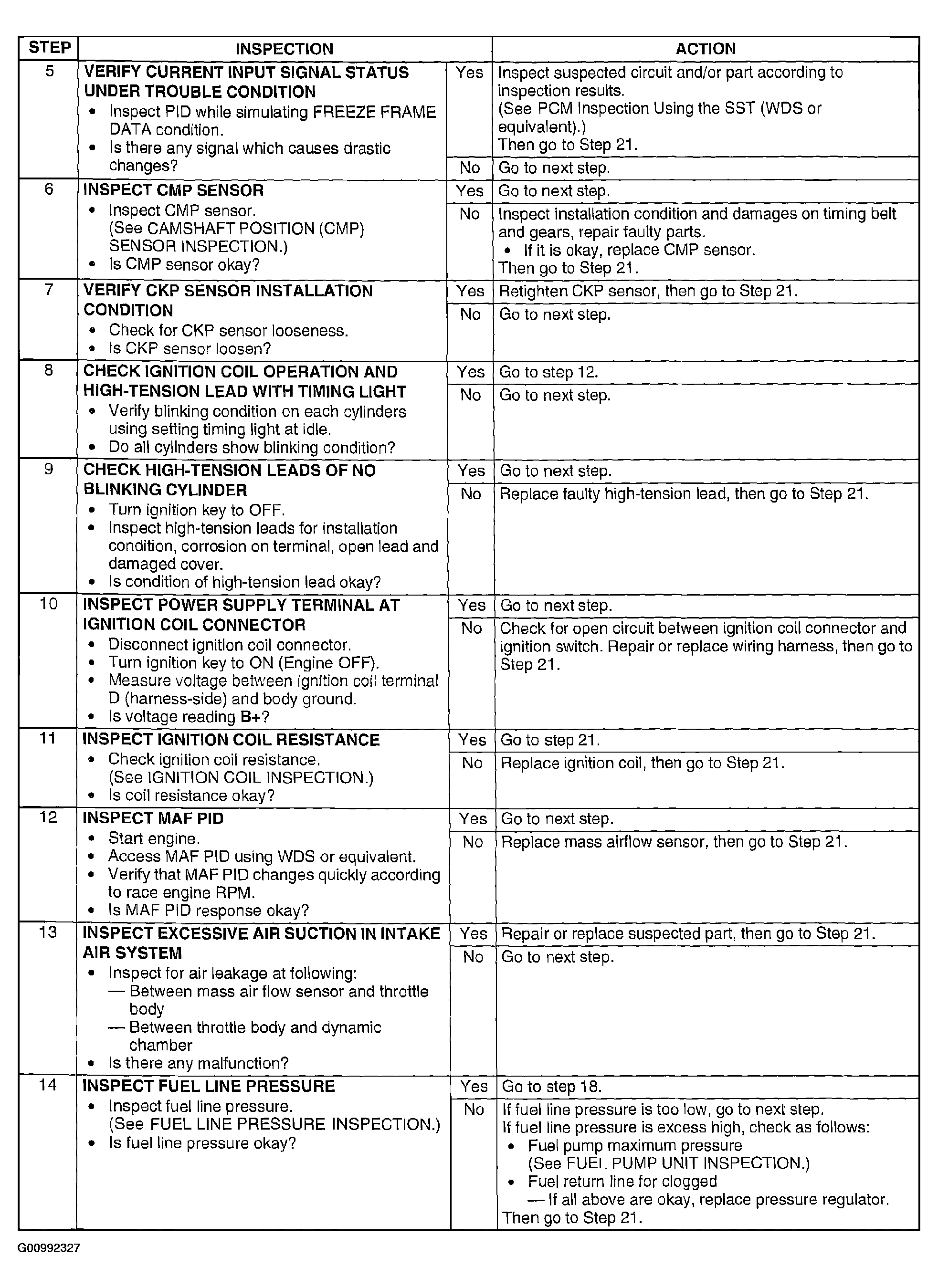

Fig 2: DTC P0300 Diagnostic Procedure Chart (Step 5-14)
Courtesy of MAZDA MOTORS CORP.

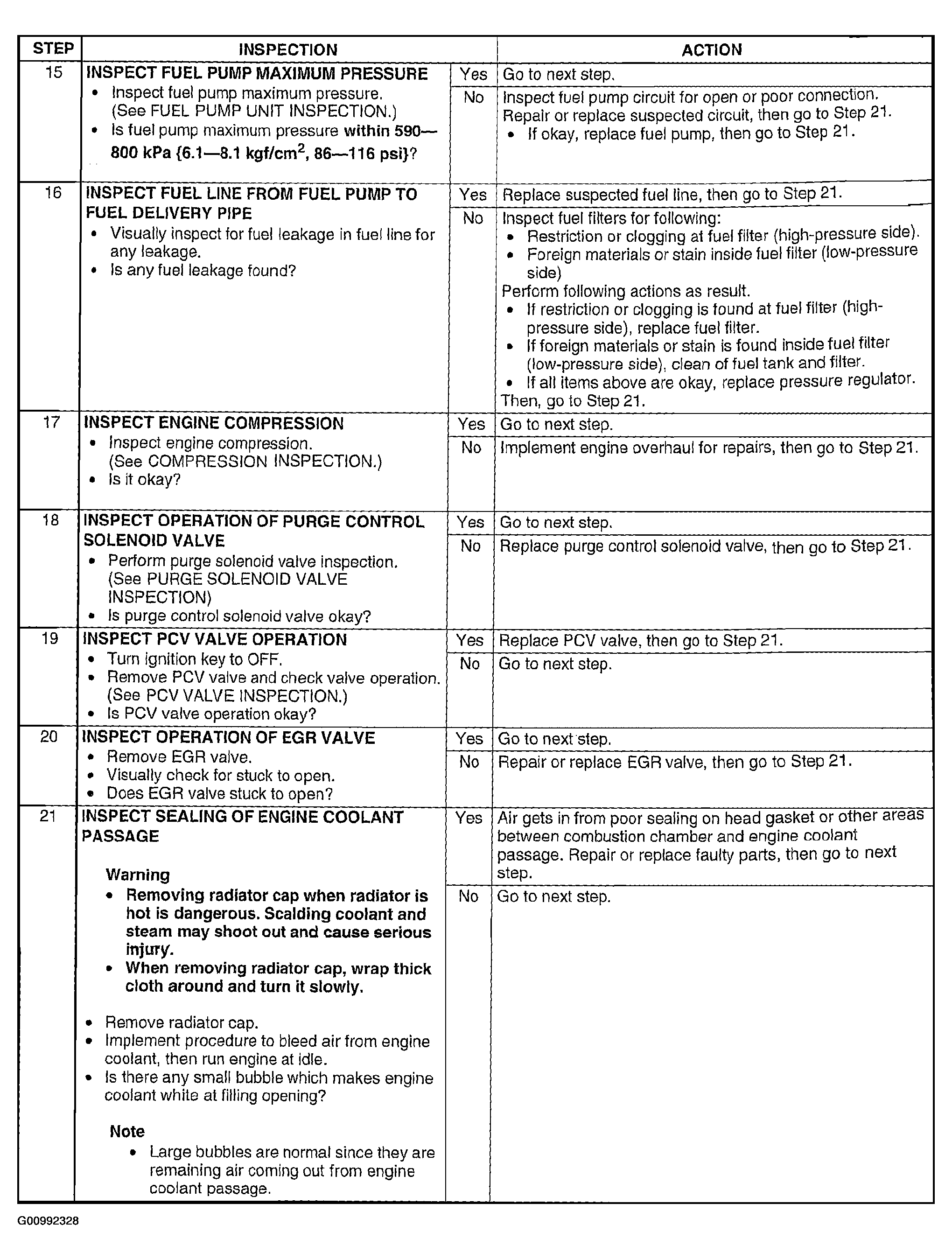

Fig 3: DTC P0300 Diagnostic Procedure Chart (Step 15-21)
Courtesy of MAZDA MOTORS CORP.

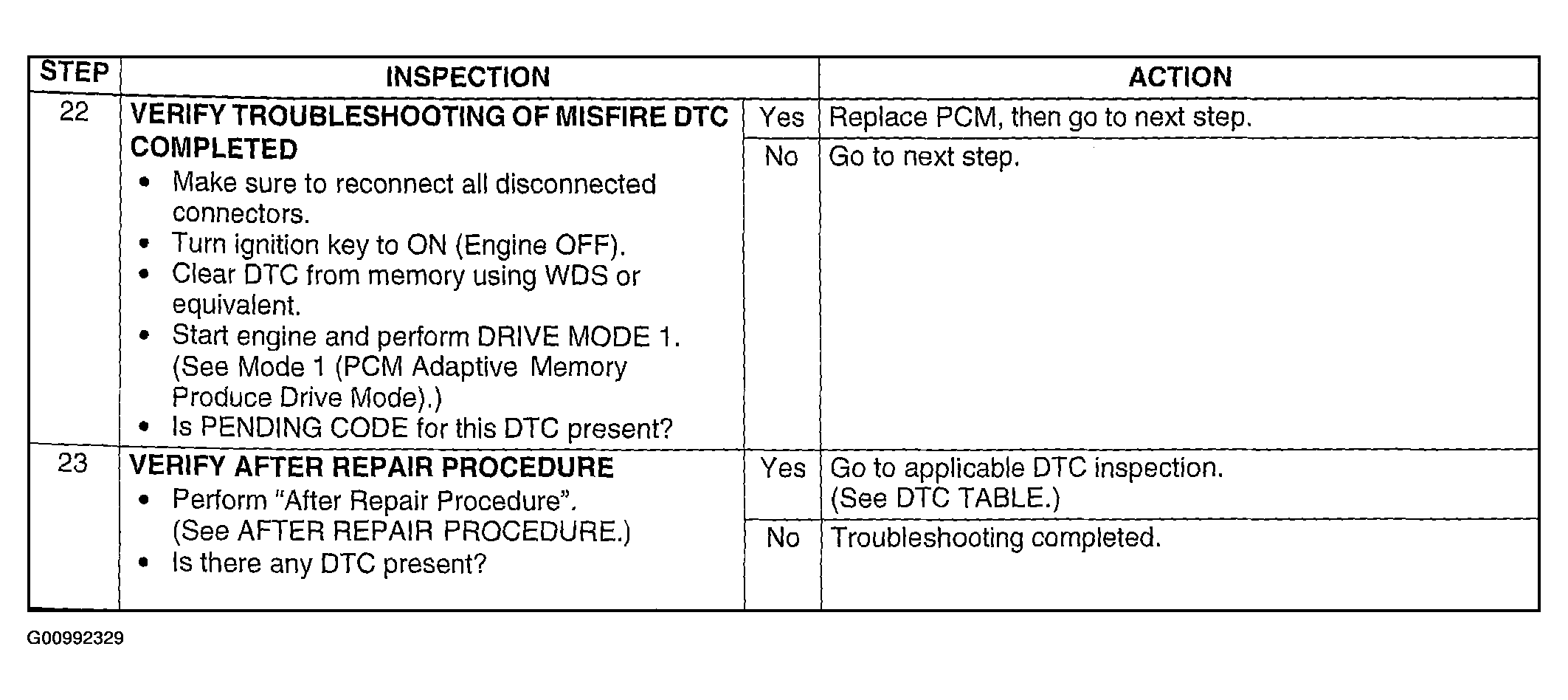

Fig 4: DTC P0300 Diagnostic Procedure Chart (Step 22-23)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
