DTC P0480: Fan Control Module Circuit Malfunction
›
Notes
DTC P0480: Fan Control Module Circuit Malfunction: Notes

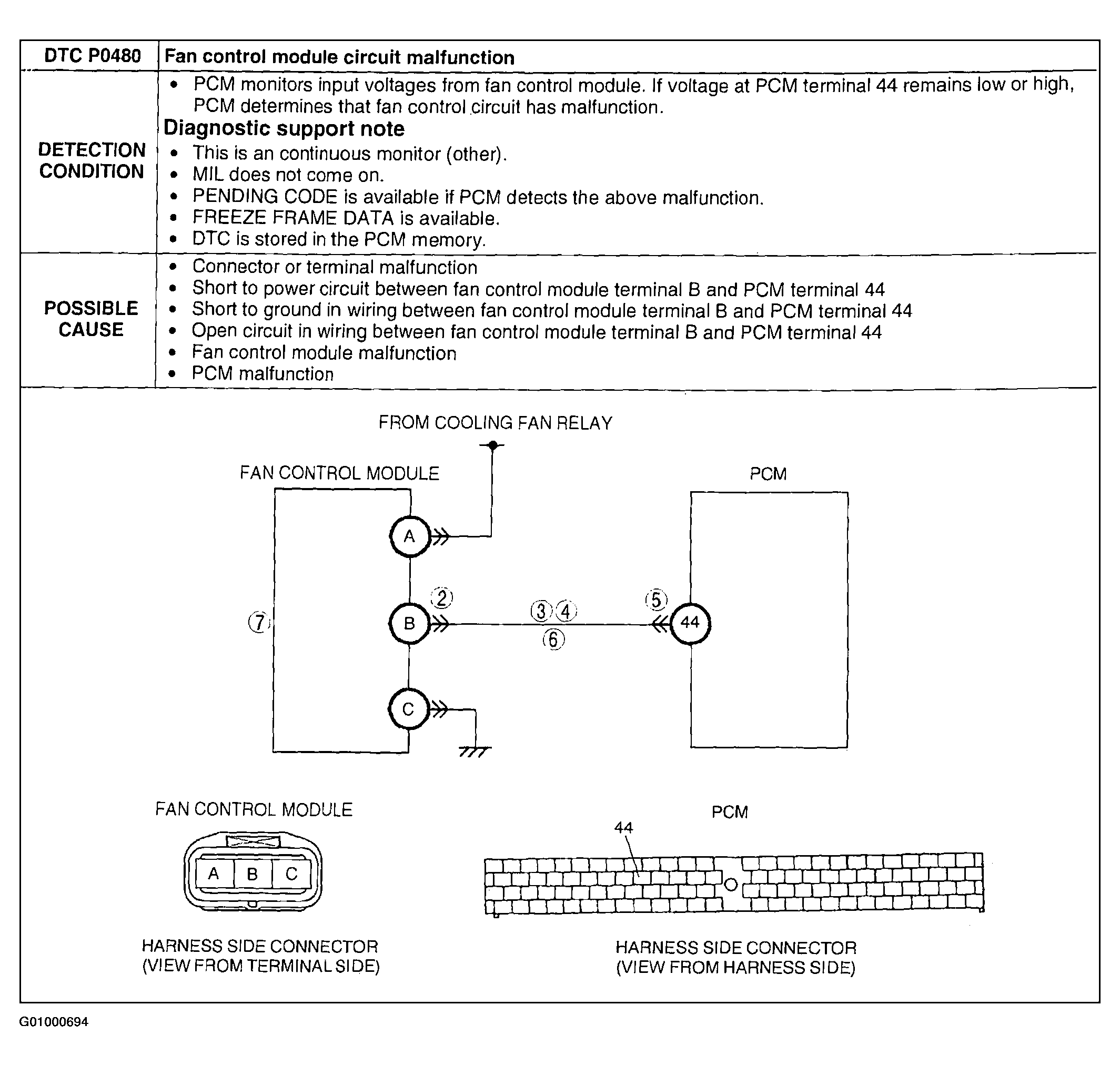

Fig 1: DTC P0480 Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
