Diagnostic Procedure

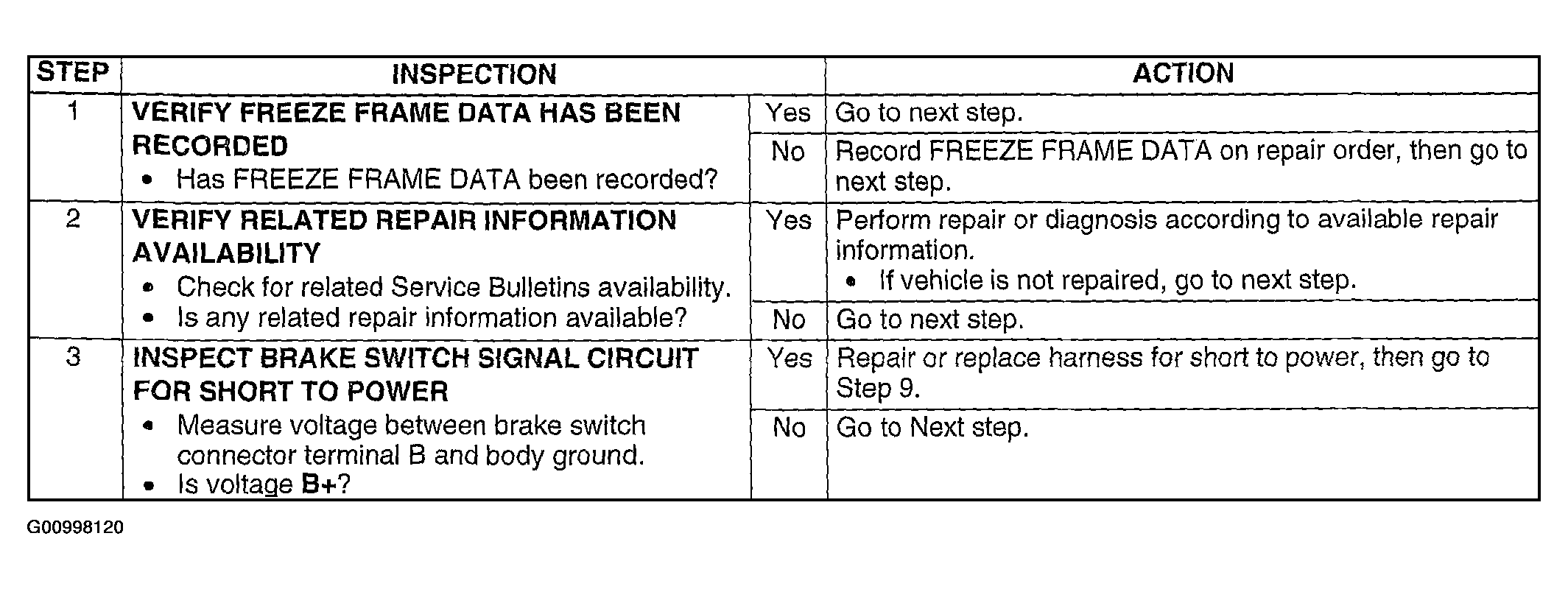

Fig 1: DTC P0703 Diagnostic Procedure Chart (Step 1-3)
G00998120Courtesy of MAZDA MOTORS CORP.

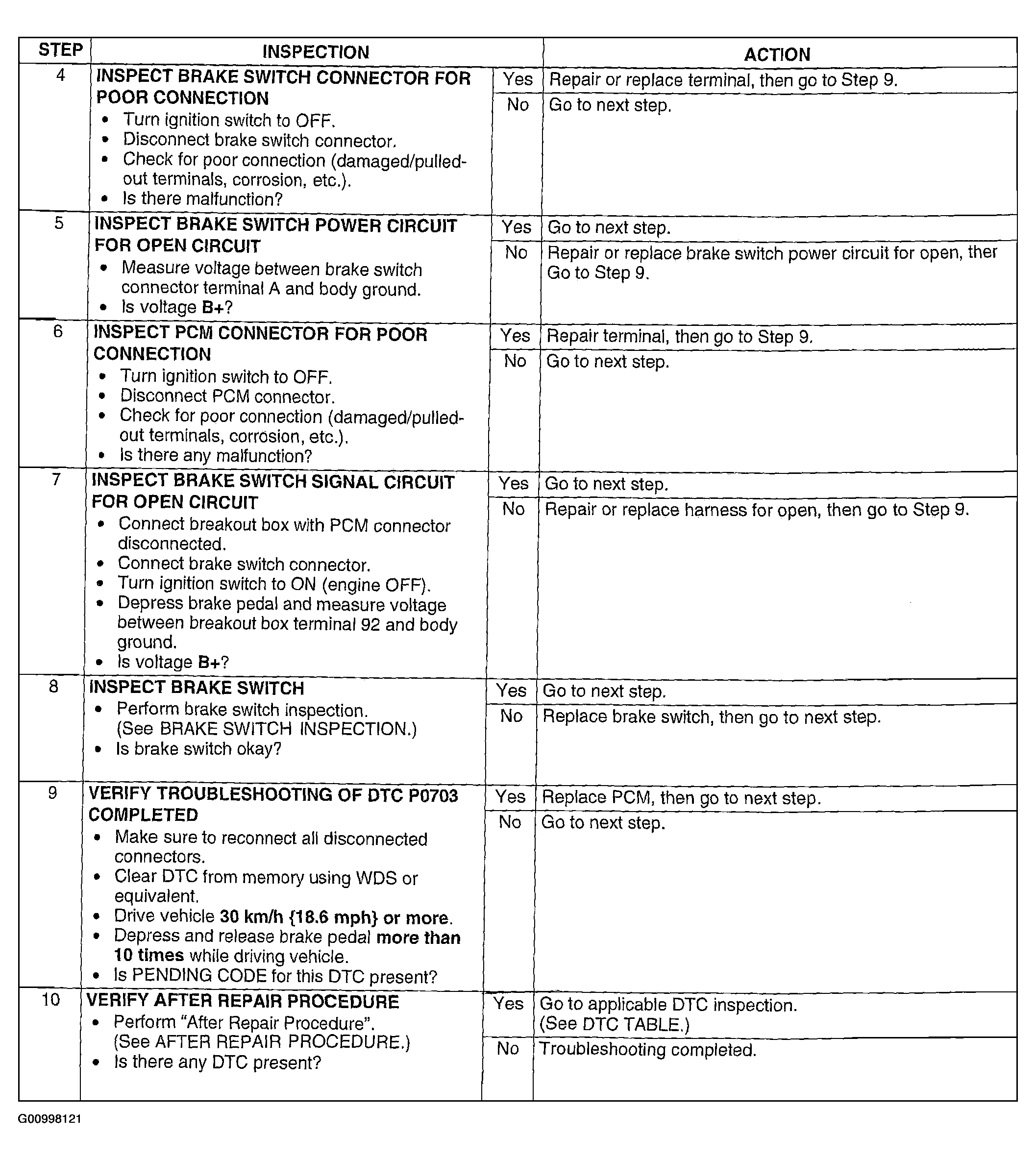

Fig 2: DTC P0703 Diagnostic Procedure Chart (Step 4-10)
G00998121Courtesy of MAZDA MOTORS CORP.
