Diagnostic Procedure

Fig 1: DTC P1602 Diagnostic Procedure Chart (Step 1-11)
G00998130Courtesy of MAZDA MOTORS CORP.

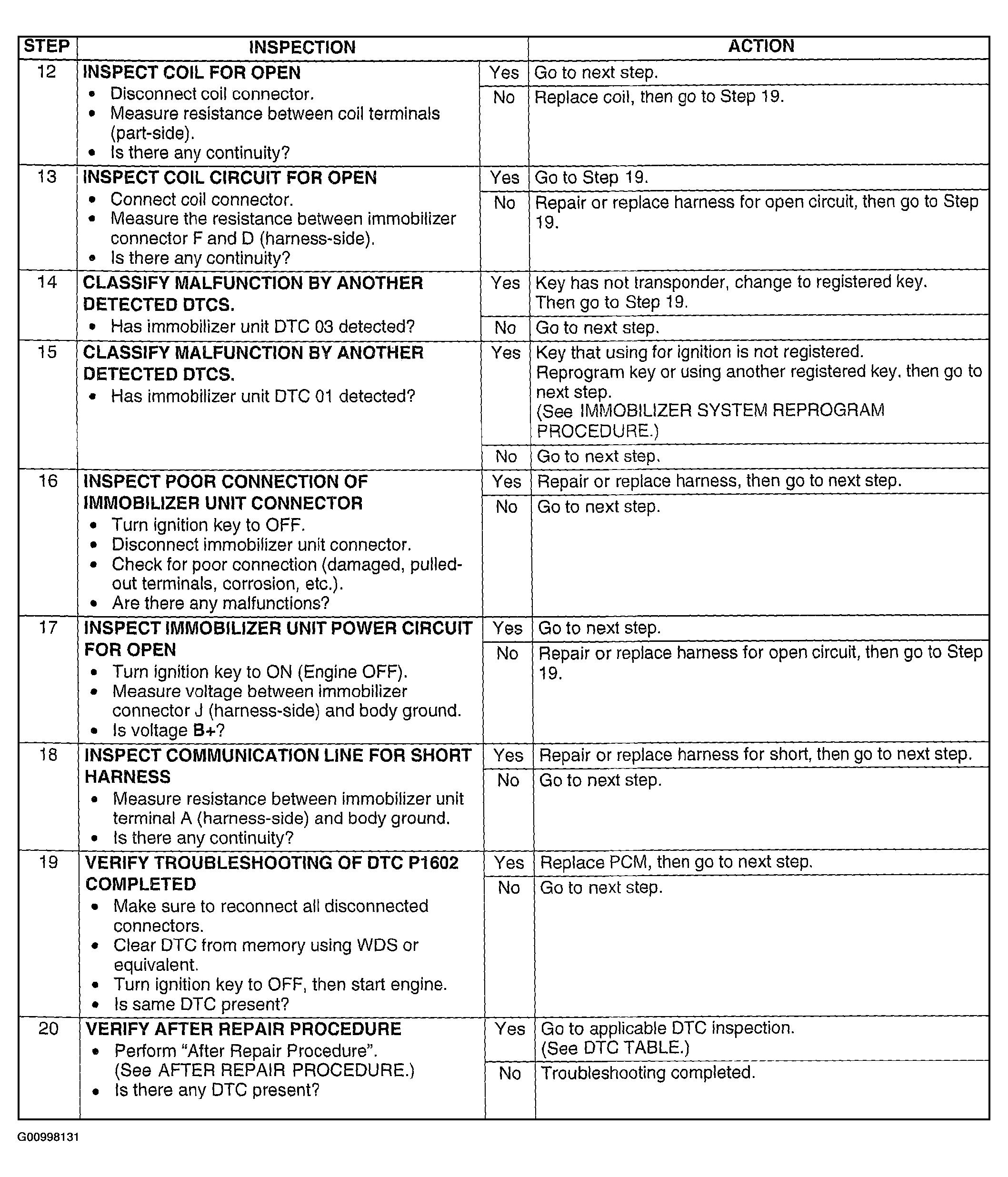

Fig 2: DTC P1602 Diagnostic Procedure Chart (Step 12-20)
G00998131Courtesy of MAZDA MOTORS CORP.
