Diagnostic Procedure

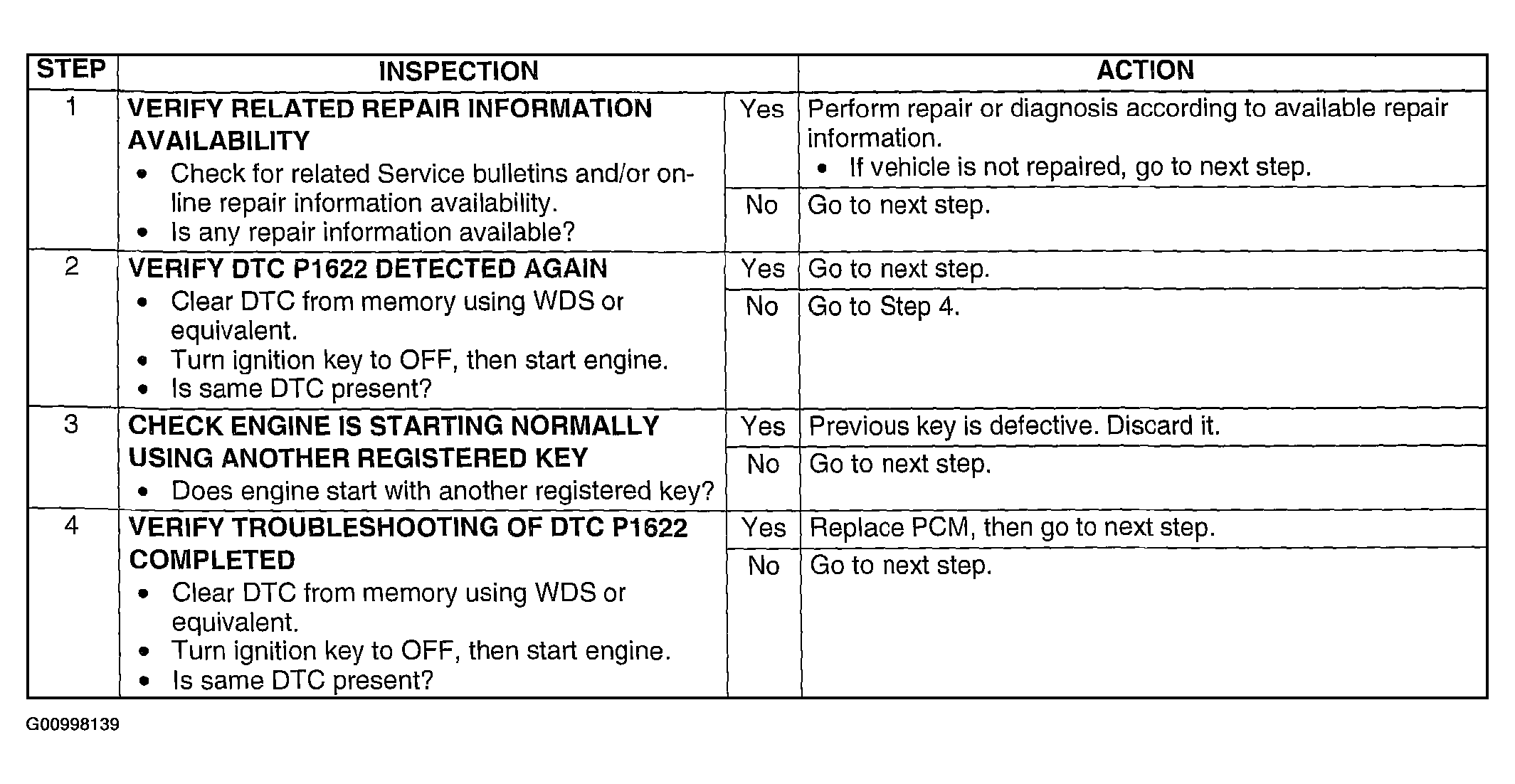

Fig 1: DTC P1622 Diagnostic Procedure Chart (Step 1-4)
G00998139Courtesy of MAZDA MOTORS CORP.

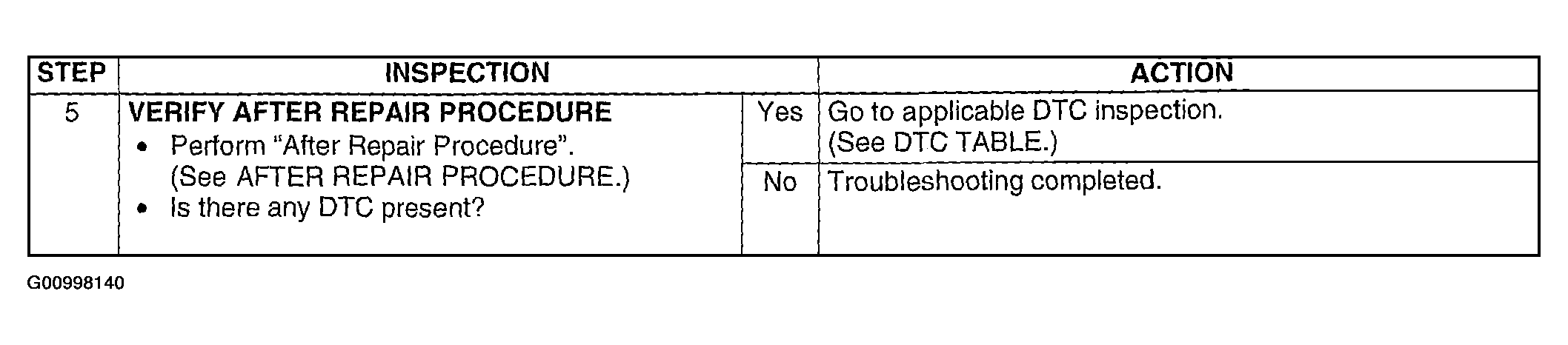

Fig 2: DTC P1622 Diagnostic Procedure Chart (Step 5)
G00998140Courtesy of MAZDA MOTORS CORP.
