Home › Mazda › 2004 › MPV ES › Repair and Diagnosis › Engine Performance › System › On-Board Diagnostic [Engine Control System AJ] › DTC P1633: Battery Overcharge › Diagnostic Procedure

Diagnostic Procedure

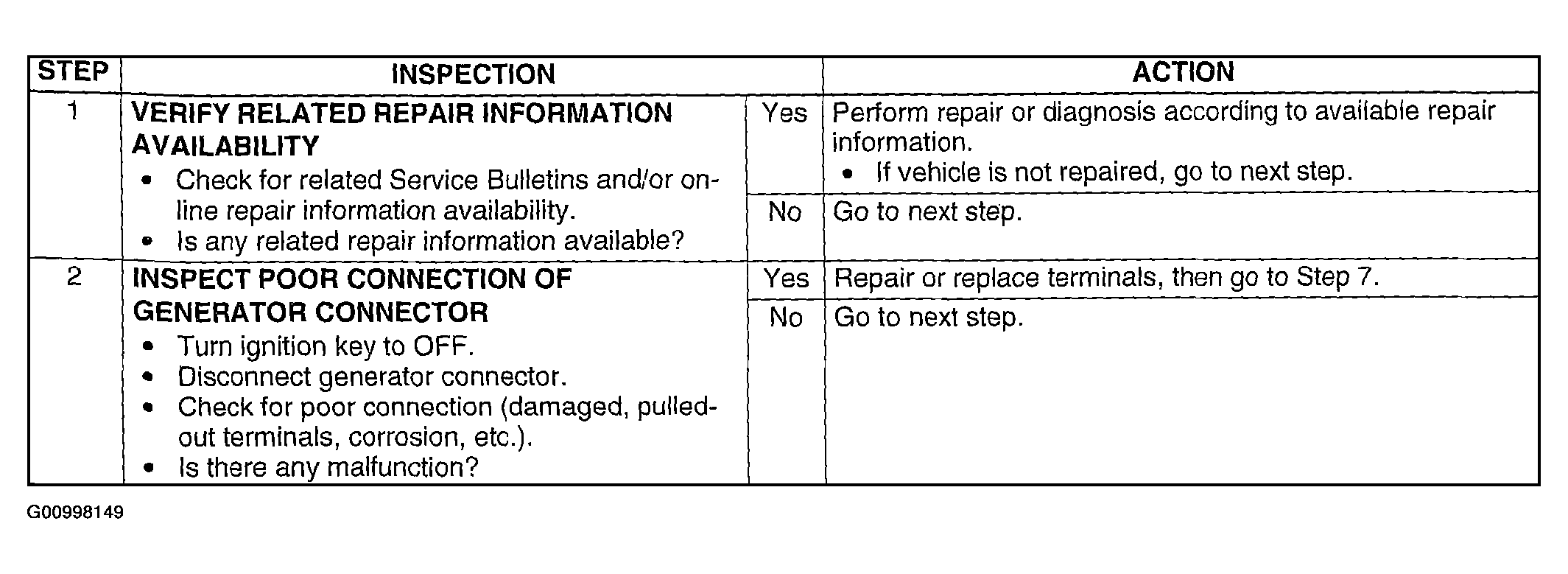

Fig 1: DTC P1633 Diagnostic Procedure Chart (Step 1-2)
G00998149Courtesy of MAZDA MOTORS CORP.

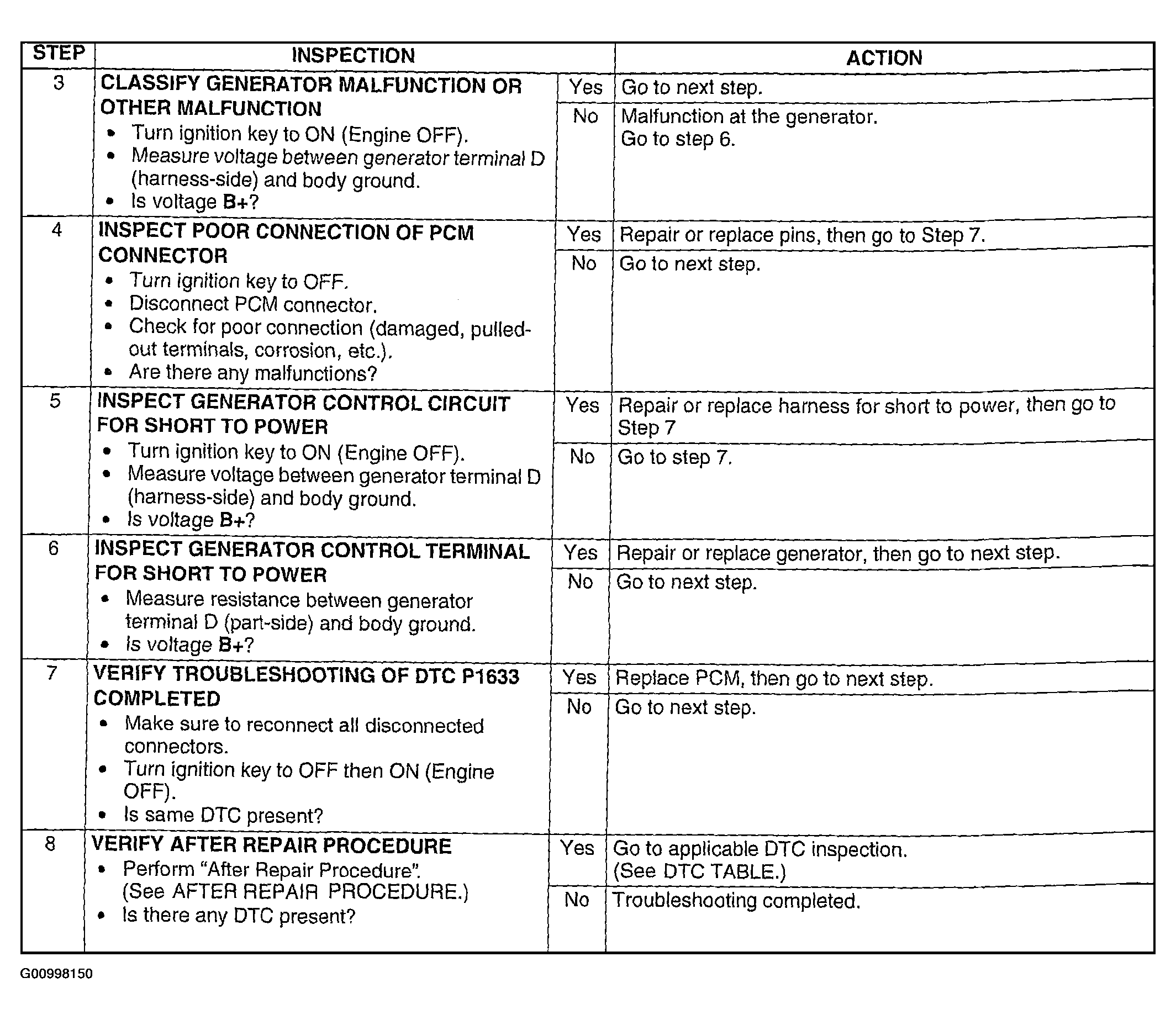

Fig 2: DTC P1633 Diagnostic Procedure Chart (Step 3-8)
G00998150Courtesy of MAZDA MOTORS CORP.
