Diagnostic Procedure

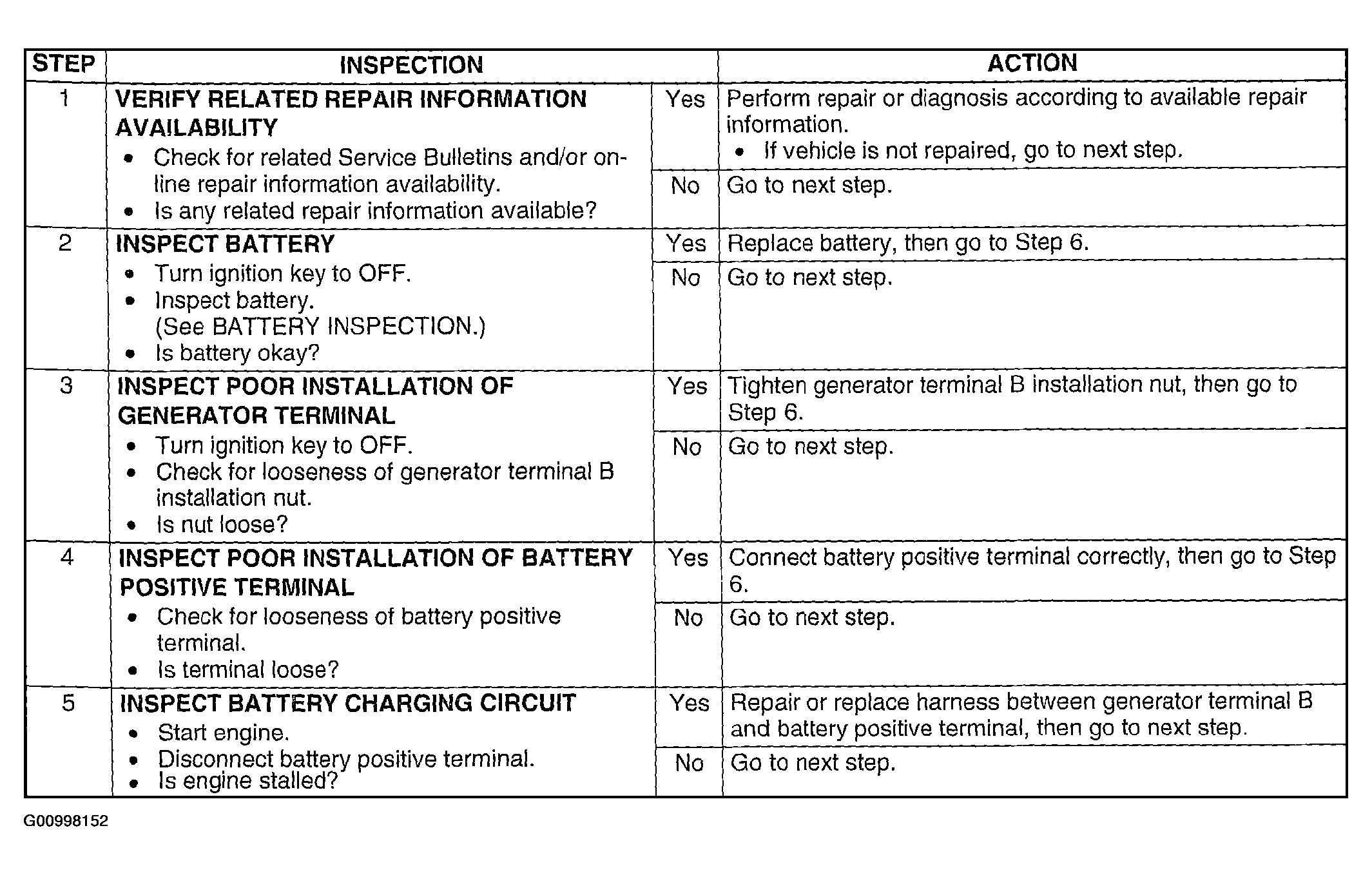

Fig 1: DTC P1634 Diagnostic Procedure Chart (Step 1-5)
G00998152Courtesy of MAZDA MOTORS CORP.

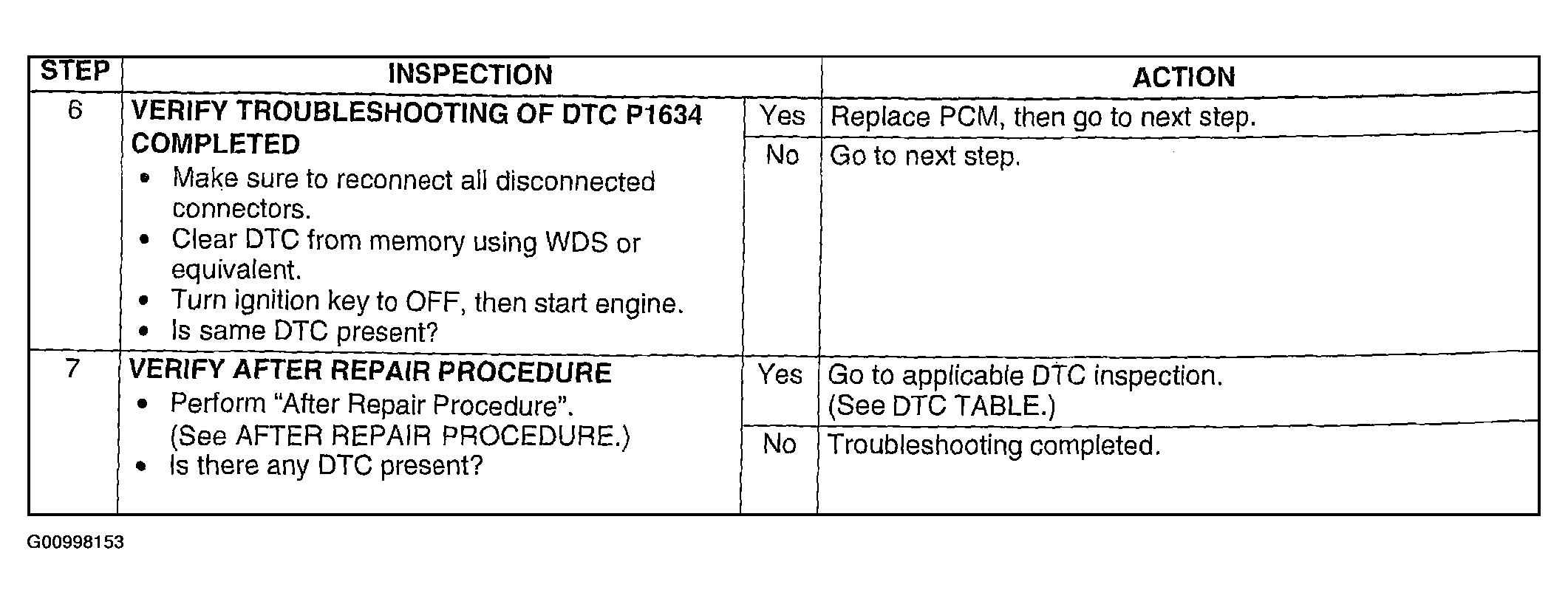

Fig 2: DTC P1634 Diagnostic Procedure Chart (Step 6-7)
G00998153Courtesy of MAZDA MOTORS CORP.
