On-Board Diagnostic [Engine Control System AJ]
›
DTC Table
DTC Table

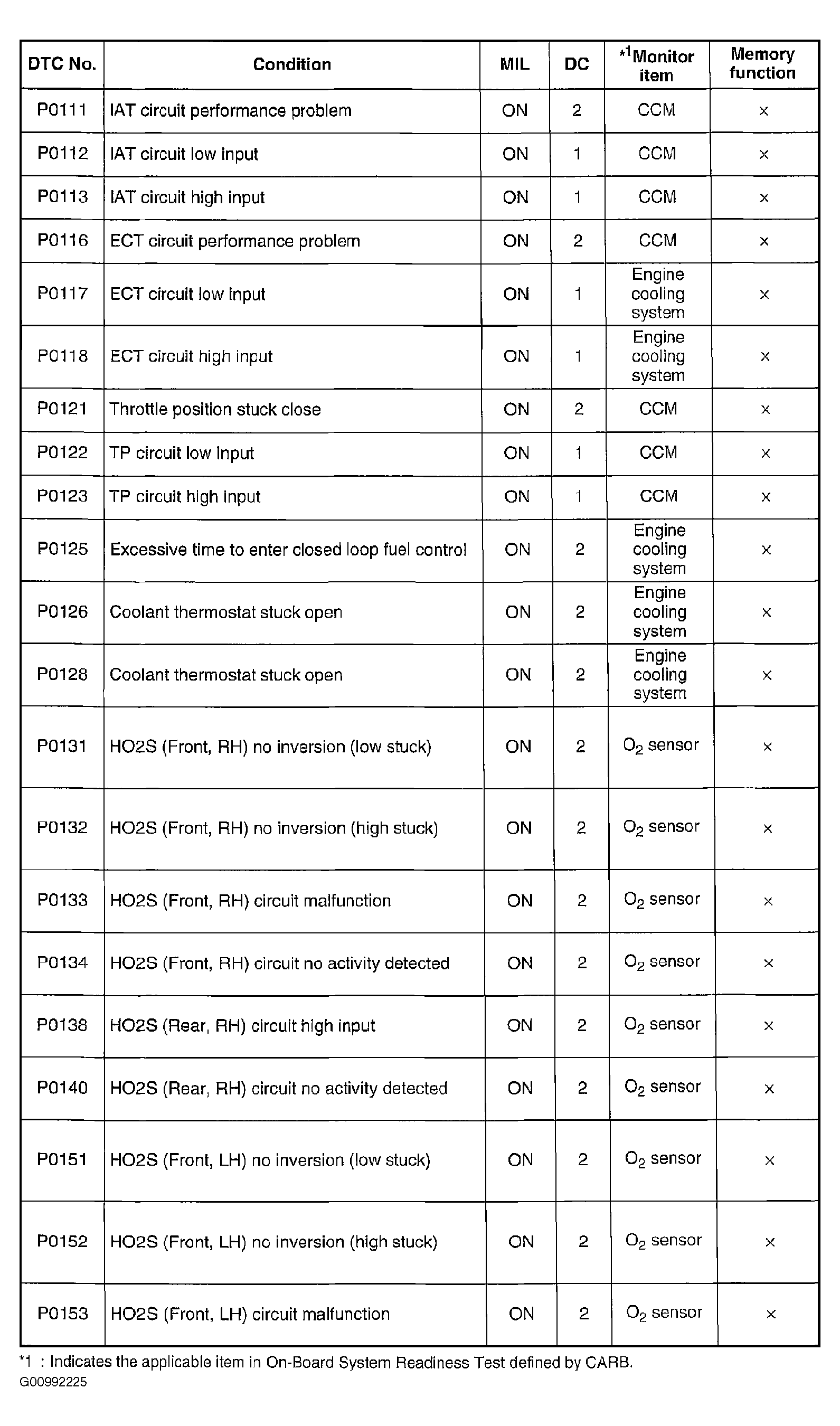

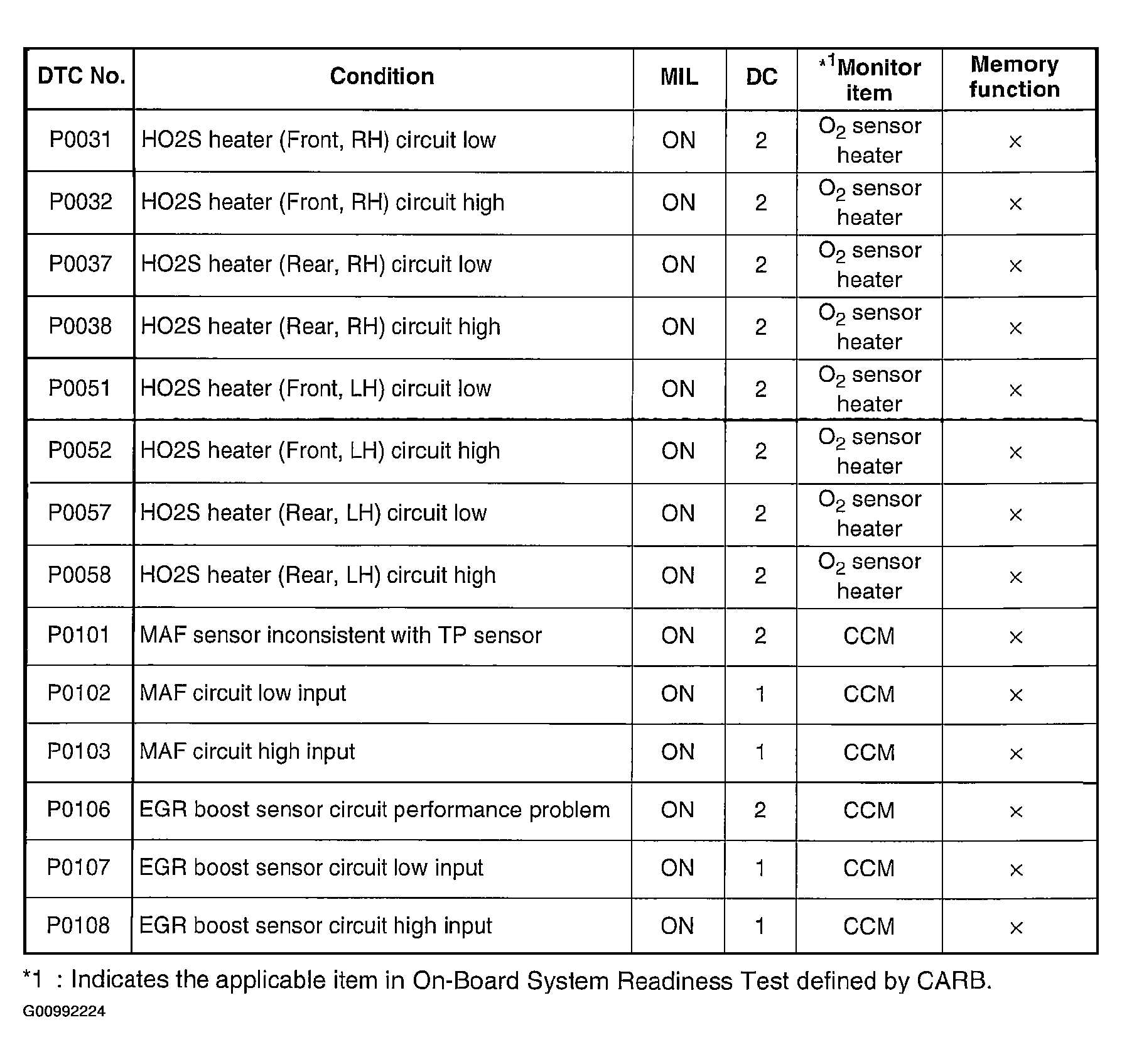

Fig 1: DTC Index Table (1 Of 5)
Courtesy of MAZDA MOTORS CORP.

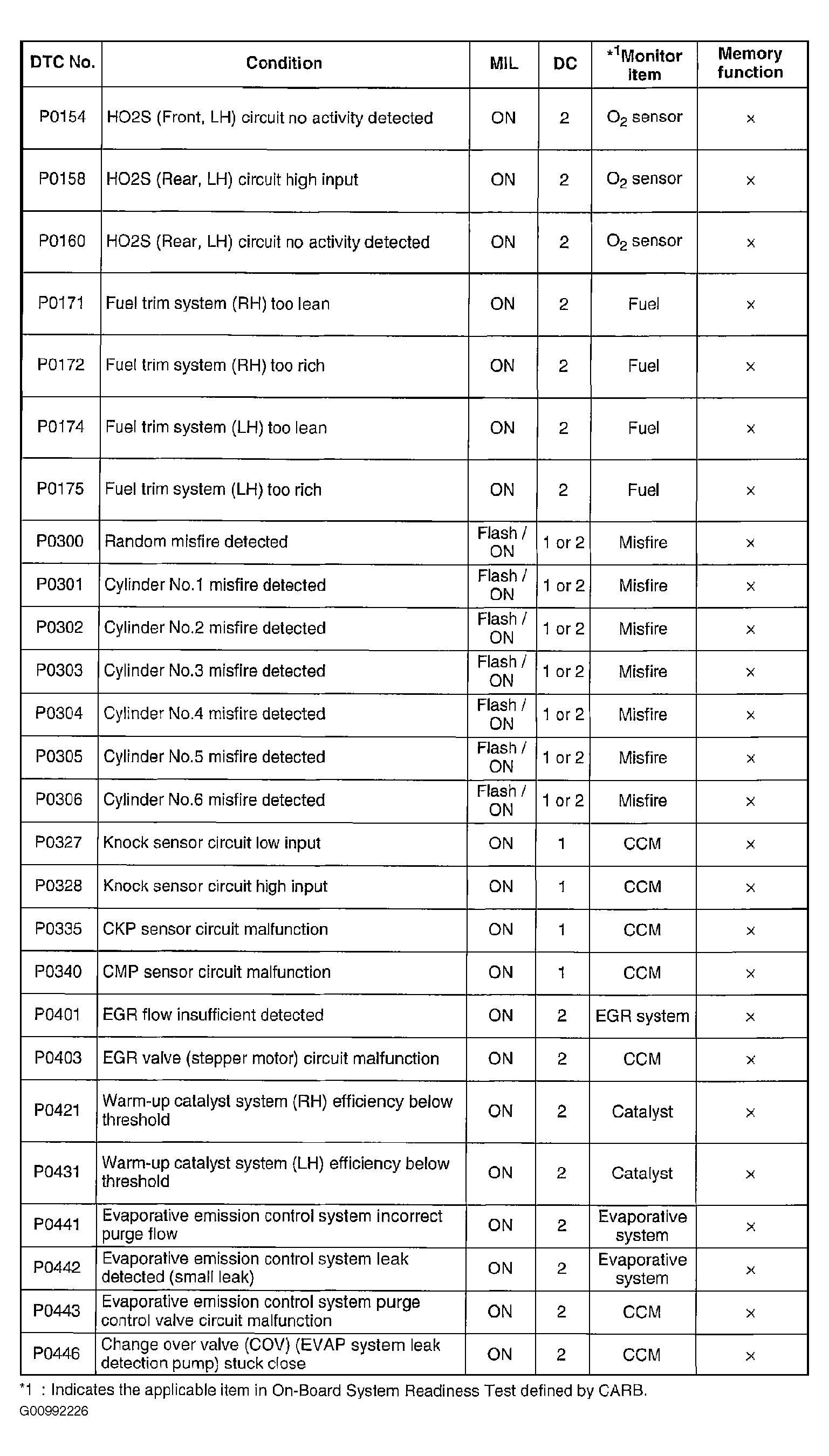

Fig 2: DTC Index Table (2 Of 5)
Courtesy of MAZDA MOTORS CORP.
Fig 3: DTC Index Table (3 Of 5)
Courtesy of MAZDA MOTORS CORP.

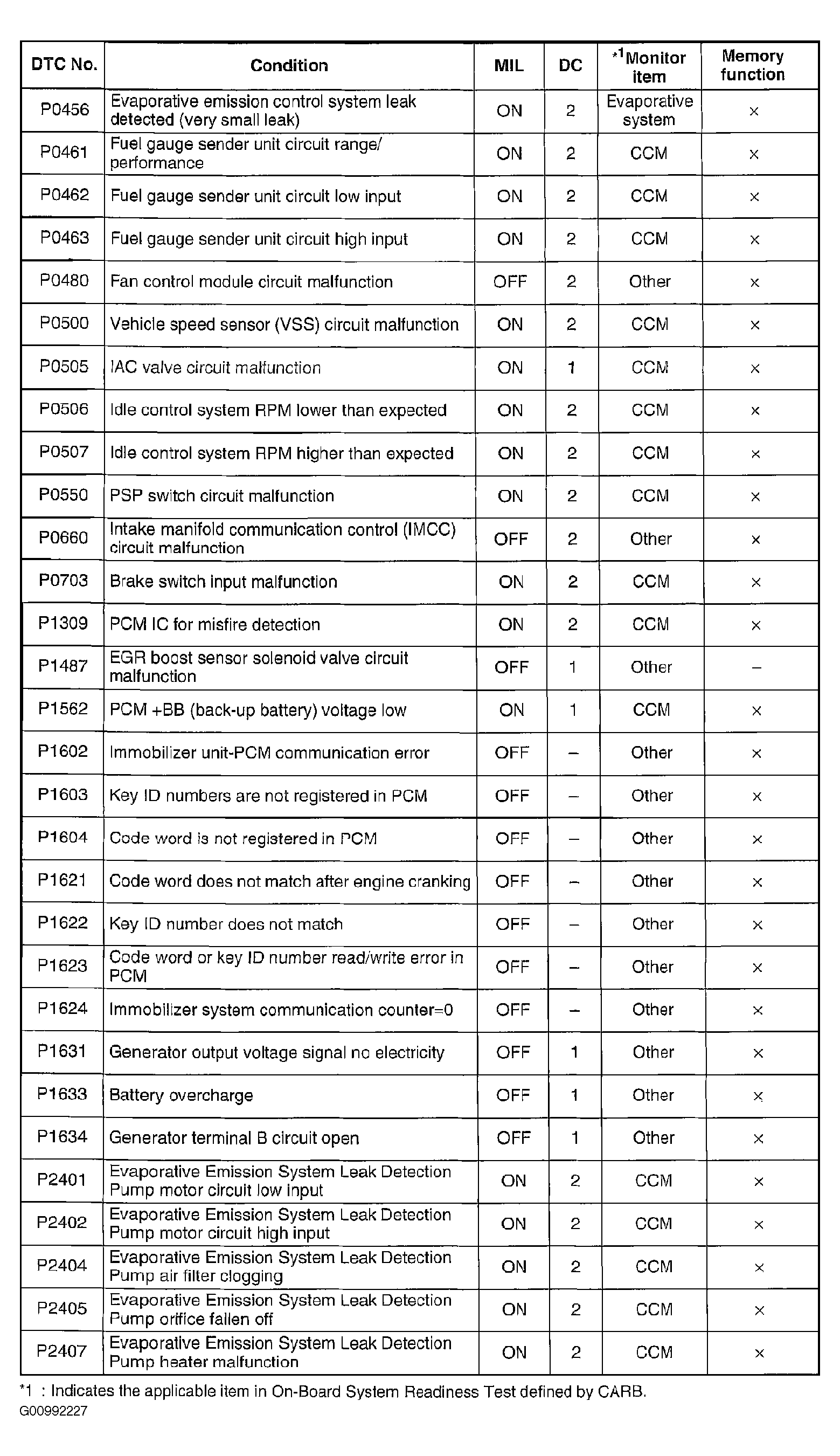

Fig 4: DTC Index Table (4 Of 5)
Courtesy of MAZDA MOTORS CORP.

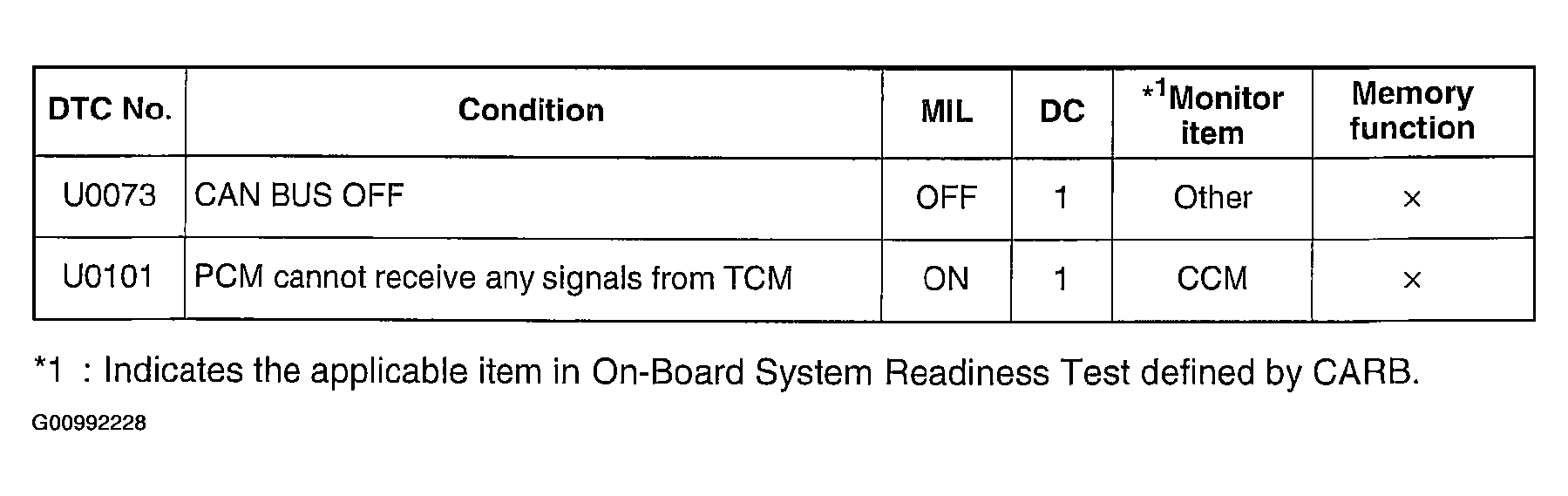

Fig 5: DTC Index Table (5 Of 5)
Courtesy of MAZDA MOTORS CORP.
