Symptom Troubleshooting [Engine Control System AJ]
›
Engine Control System Operation Inspection
›
Evaporative System Test
›
Evaporative system test threshold value
›
Very small leak (mA/s)
Very small leak (mA/s)
If LDP_VSLDV PID value is lower than the table below, a very small leak has been detected.

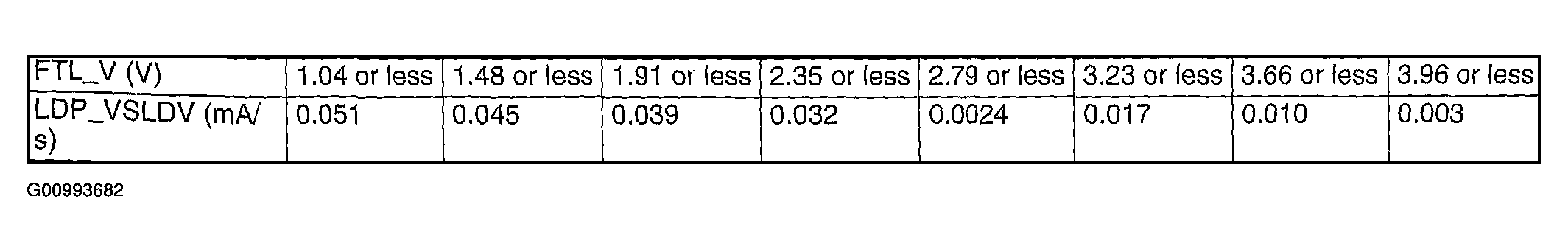

Fig 1: Evaporative System Test Threshold Value - Very Small Leak (mA/s)
Courtesy of MAZDA MOTORS CORP.
