Symptom Troubleshooting [Engine Control System AJ]
›
No. 12 Lack/Loss Of Power-Acceleration/Cruise
›
Diagnostic Procedure
Diagnostic Procedure

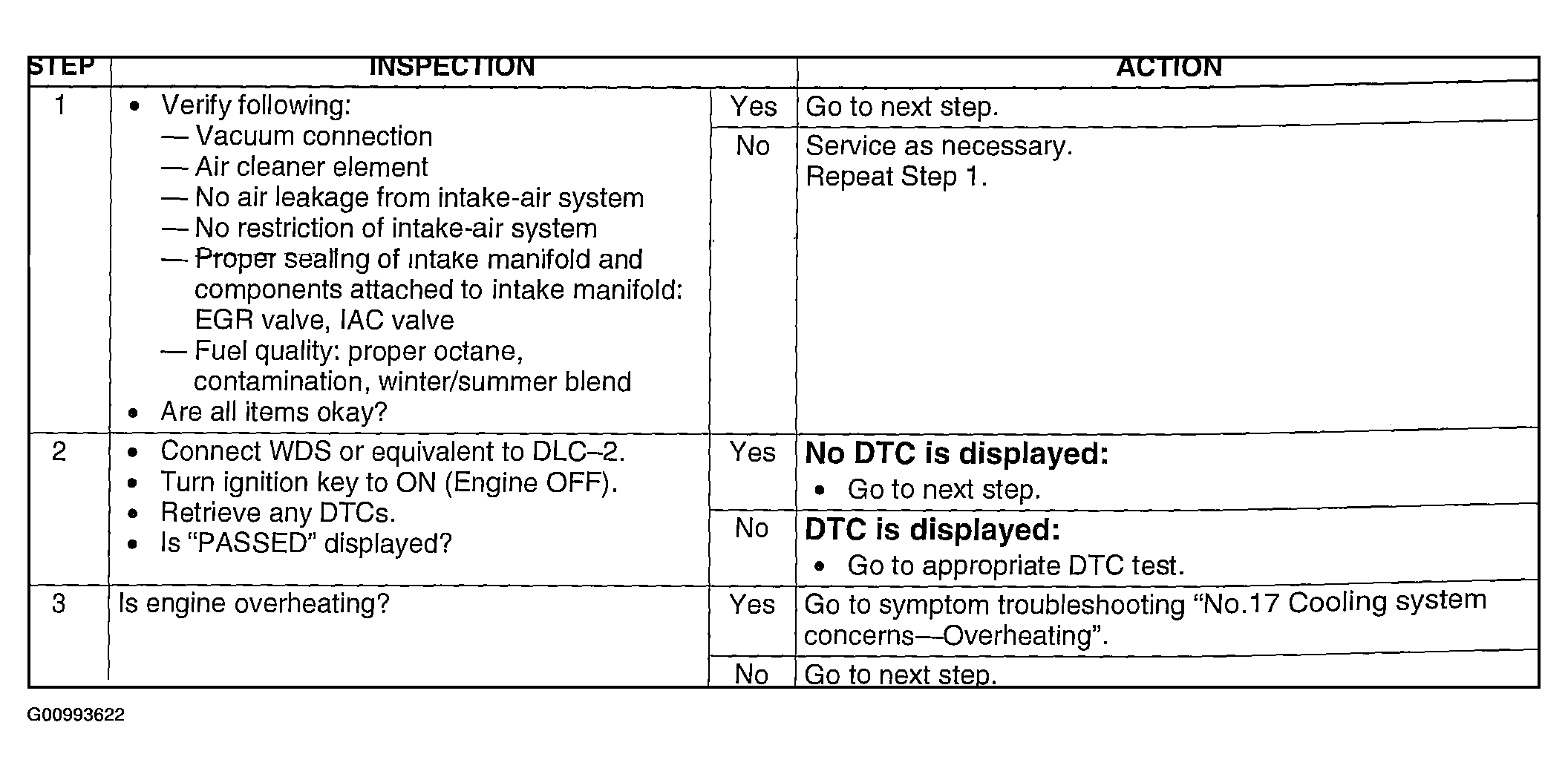

Fig 1: Symptom No.12 Diagnostic Procedure Chart (Step 1-3)
Courtesy of MAZDA MOTORS CORP.

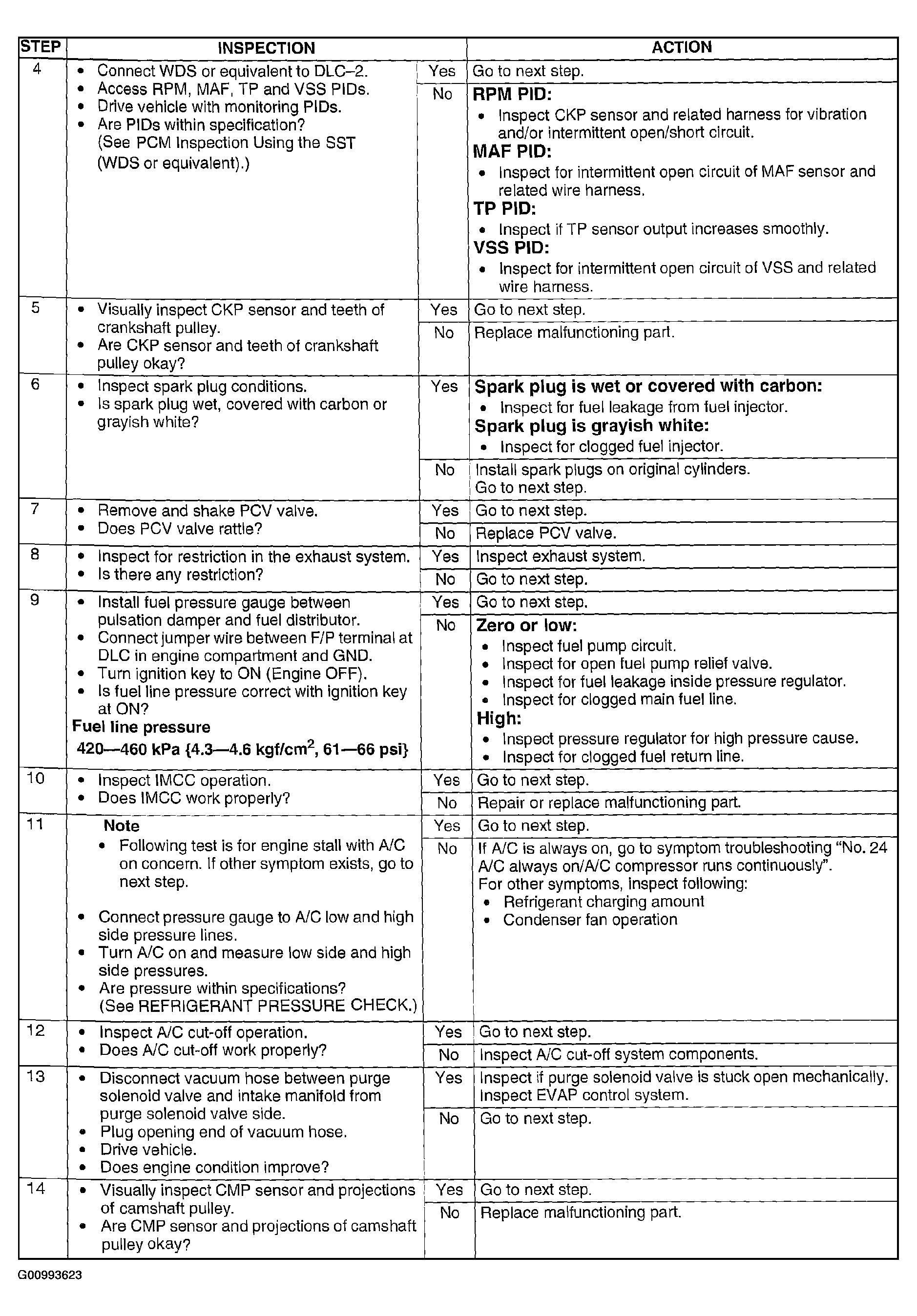

Fig 2: Symptom No.12 Diagnostic Procedure Chart (Step 4-14)
Courtesy of MAZDA MOTORS CORP.

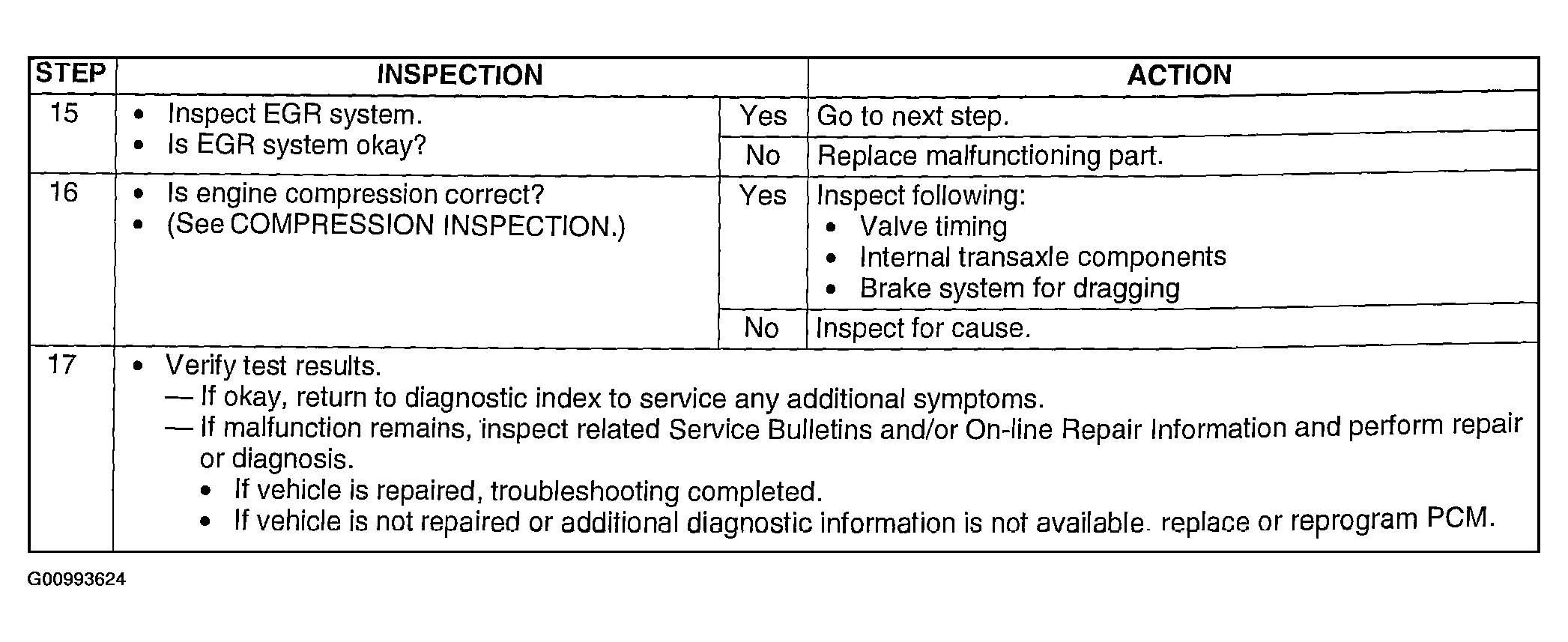

Fig 3: Symptom No.12 Diagnostic Procedure Chart (Step 15-17)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
