Diagnostic Procedure

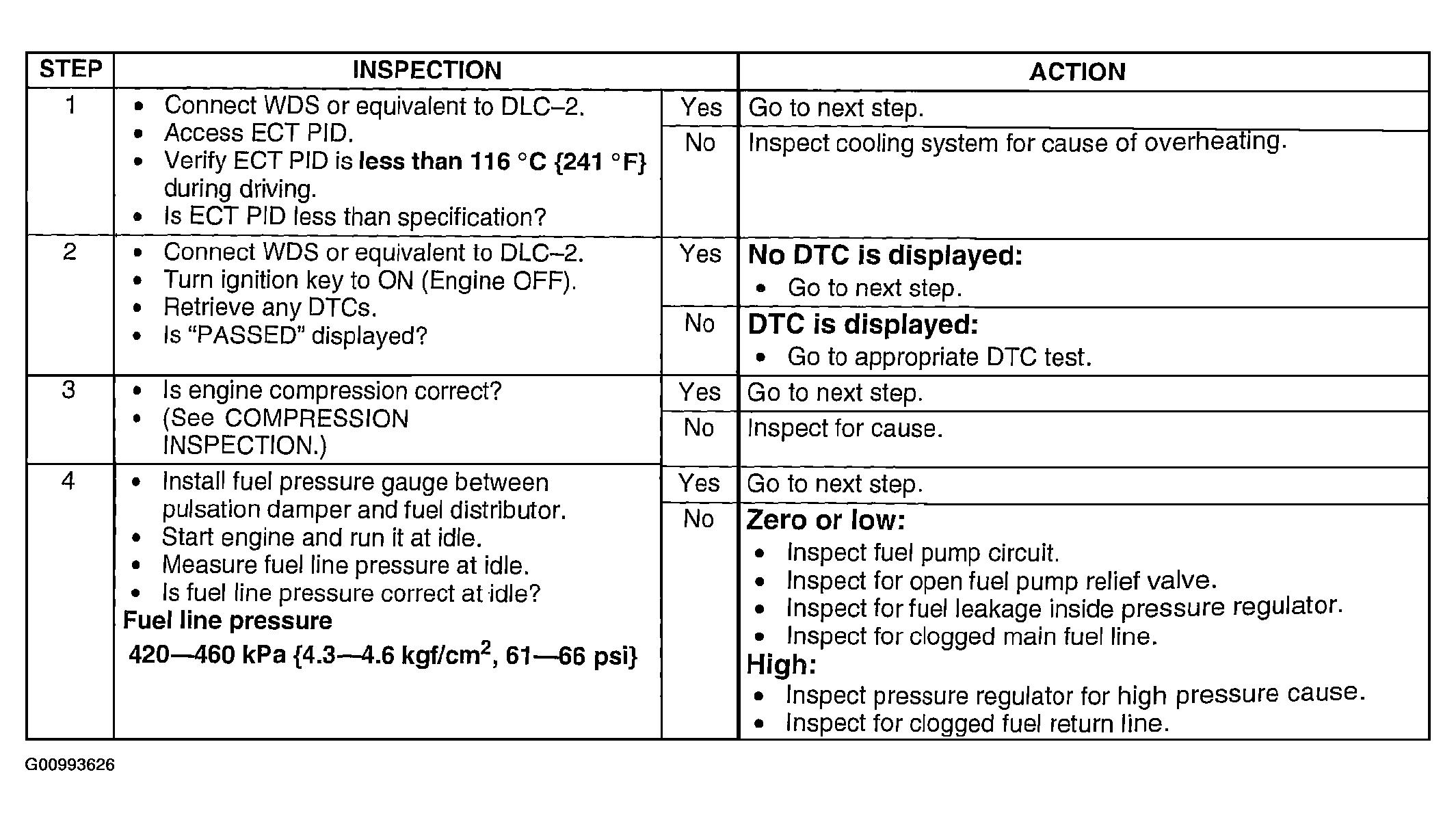

Fig 1: Symptom No.13 Diagnostic Procedure Chart (Step 1-4)
G00993626Courtesy of MAZDA MOTORS CORP.

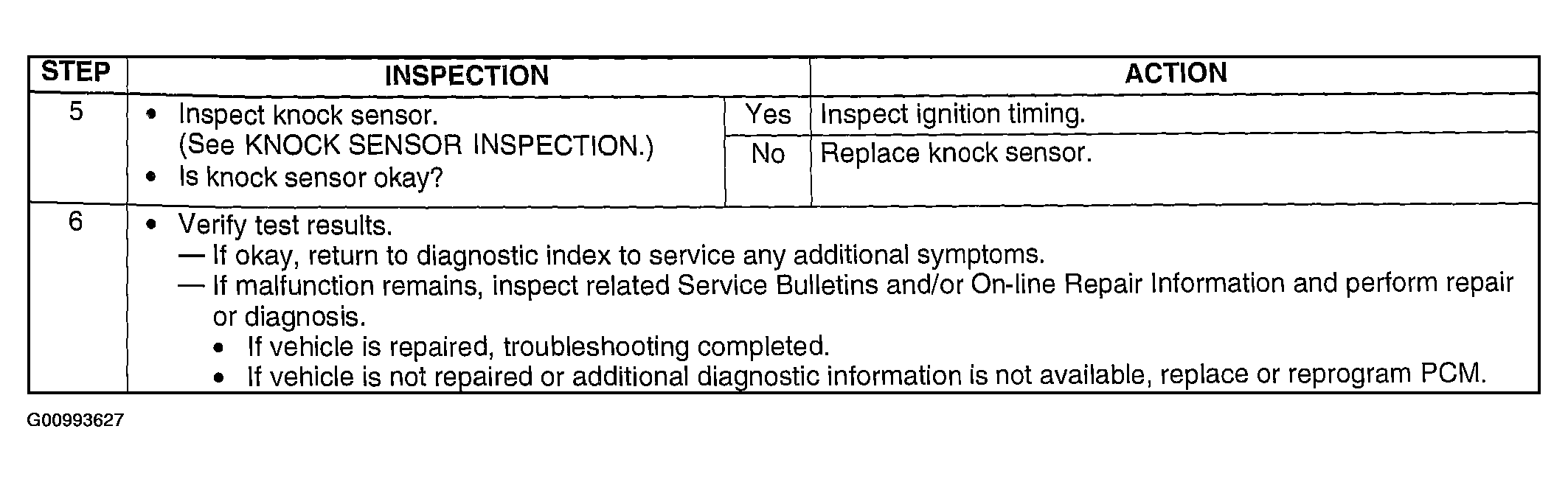

Fig 2: Symptom No.13 Diagnostic Procedure Chart (Step 5-6)
G00993627Courtesy of MAZDA MOTORS CORP.
