Symptom Troubleshooting [Engine Control System AJ]
›
No. 21 Engine Noise
›
Diagnostic Procedure
Diagnostic Procedure

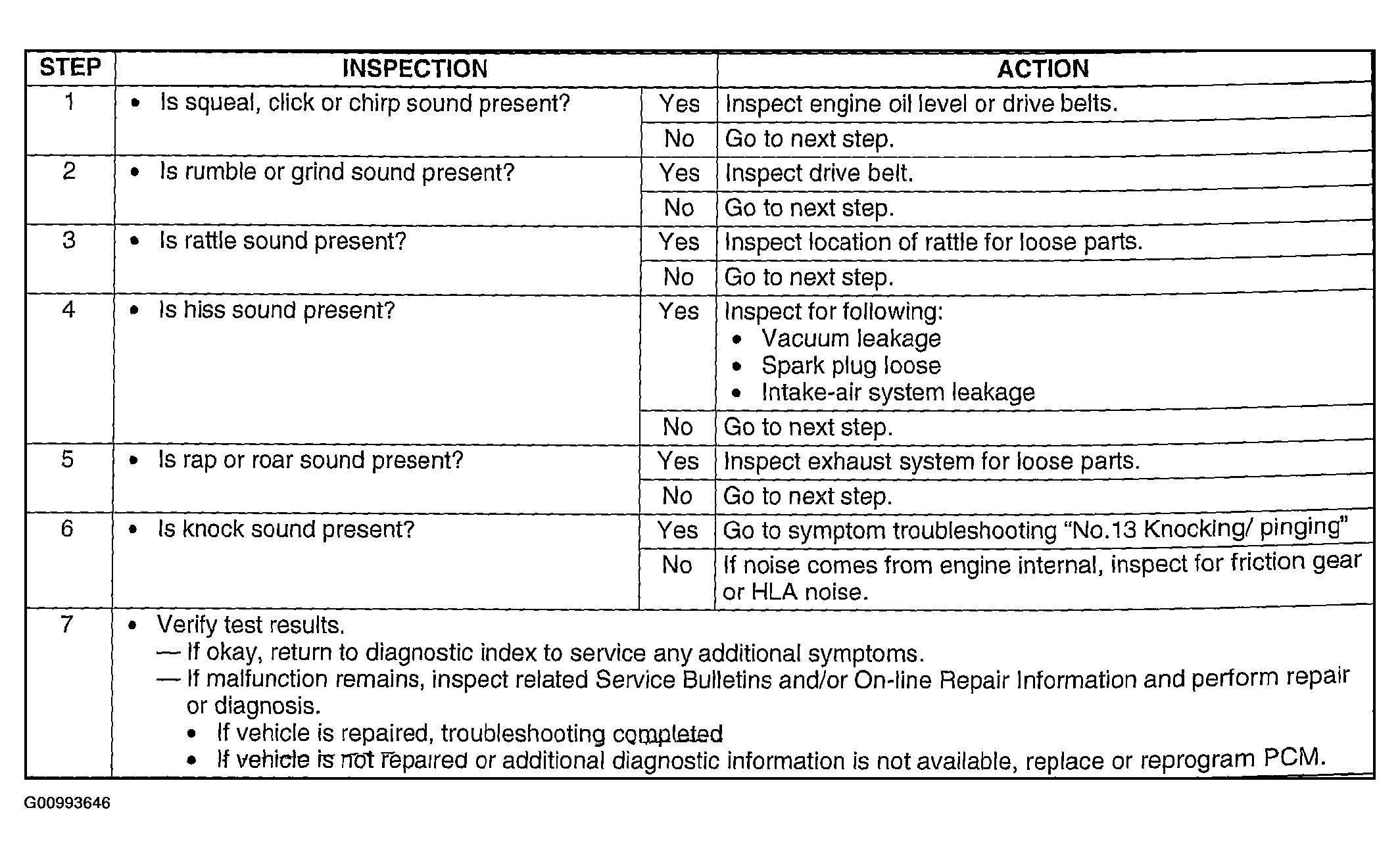

Fig 1: Symptom No.21 Diagnostic Procedure Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
