Symptom Troubleshooting [Engine Control System AJ]
›
No. 5 Engine Stalls-After Start/At Idle
›
Diagnostic Procedure
Diagnostic Procedure

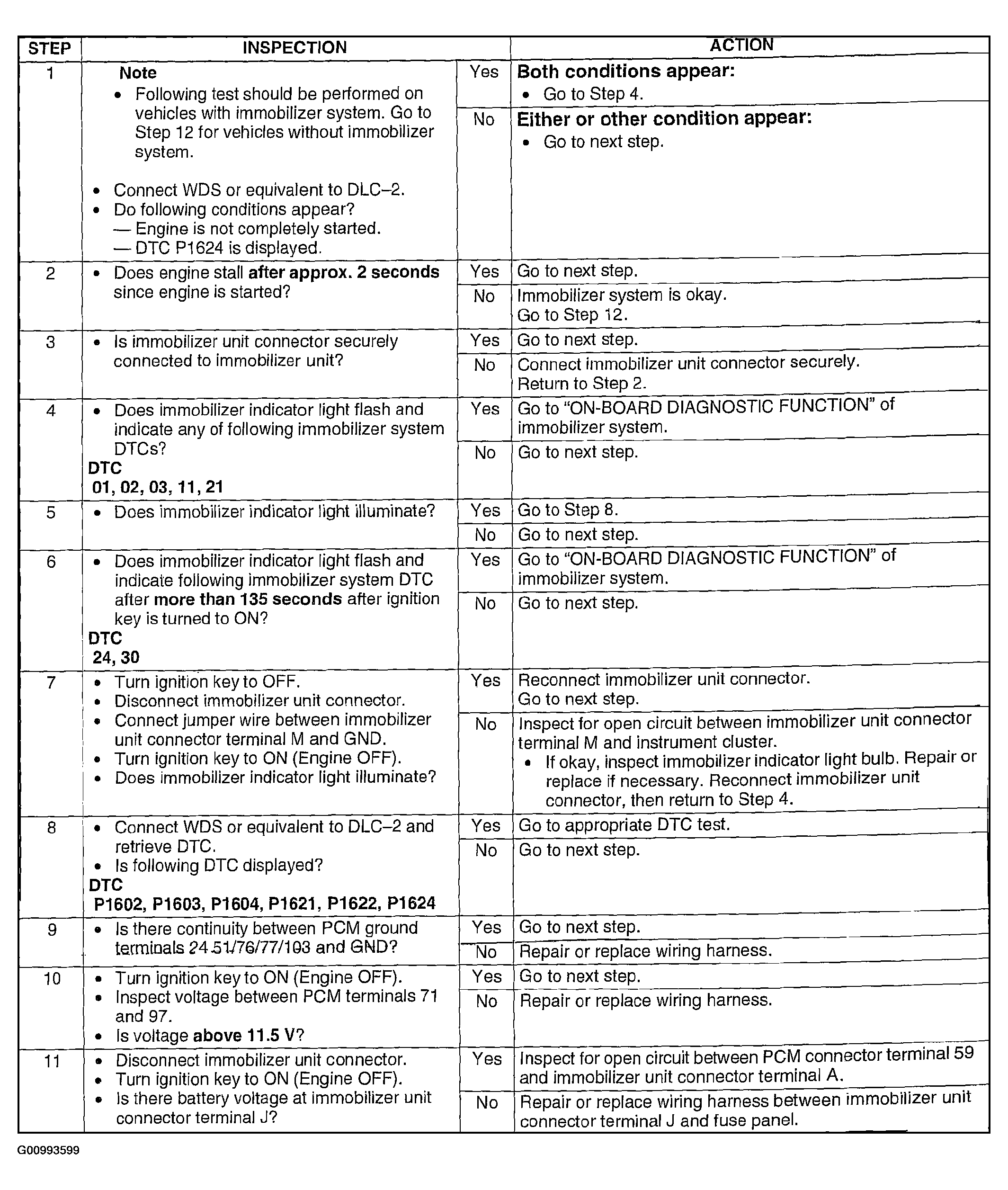

Fig 1: Symptom No.5 Diagnostic Procedure Chart (Step 1-11)
Courtesy of MAZDA MOTORS CORP.

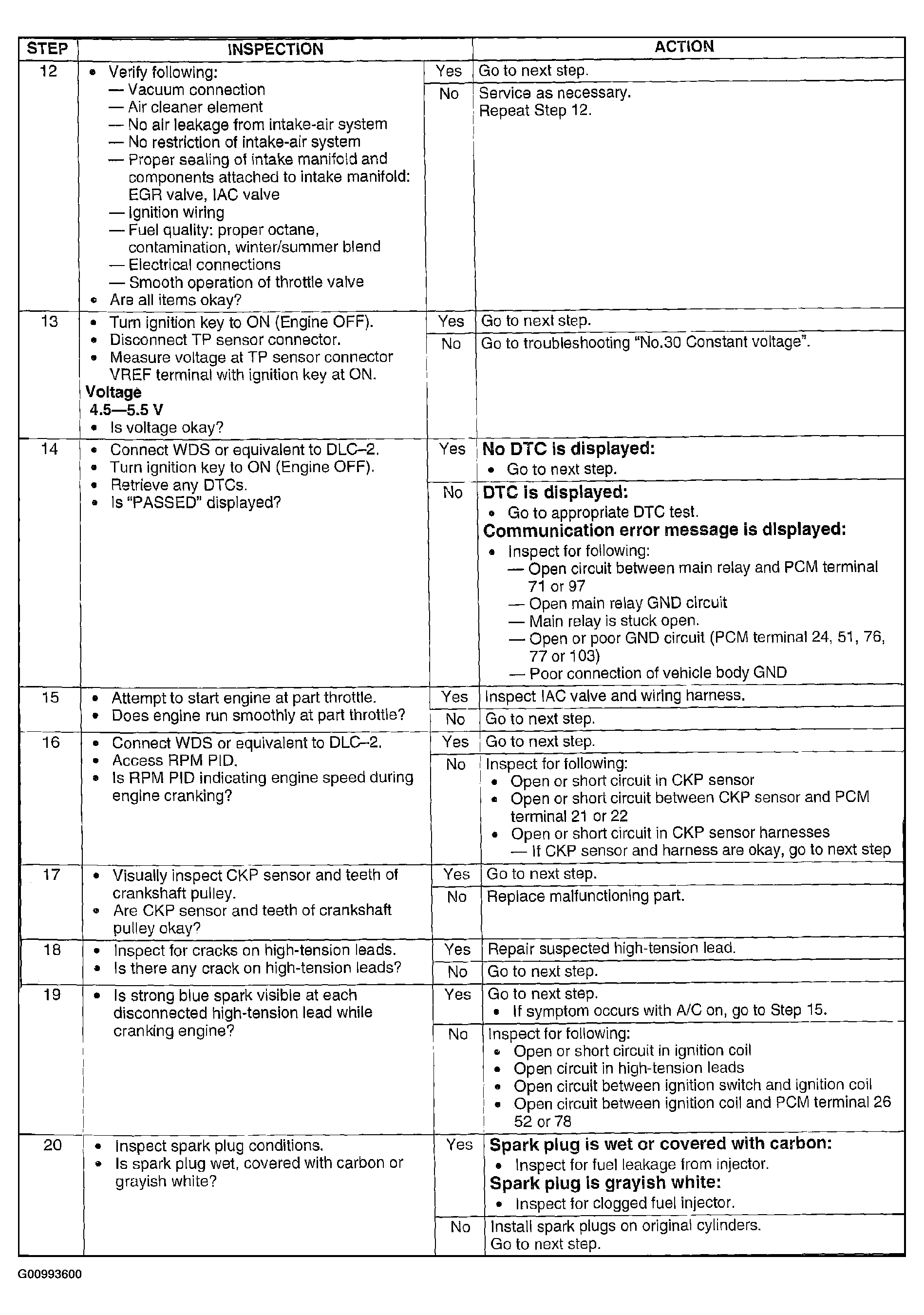

Fig 2: Symptom No.5 Diagnostic Procedure Chart (Step 12-20)
Courtesy of MAZDA MOTORS CORP.

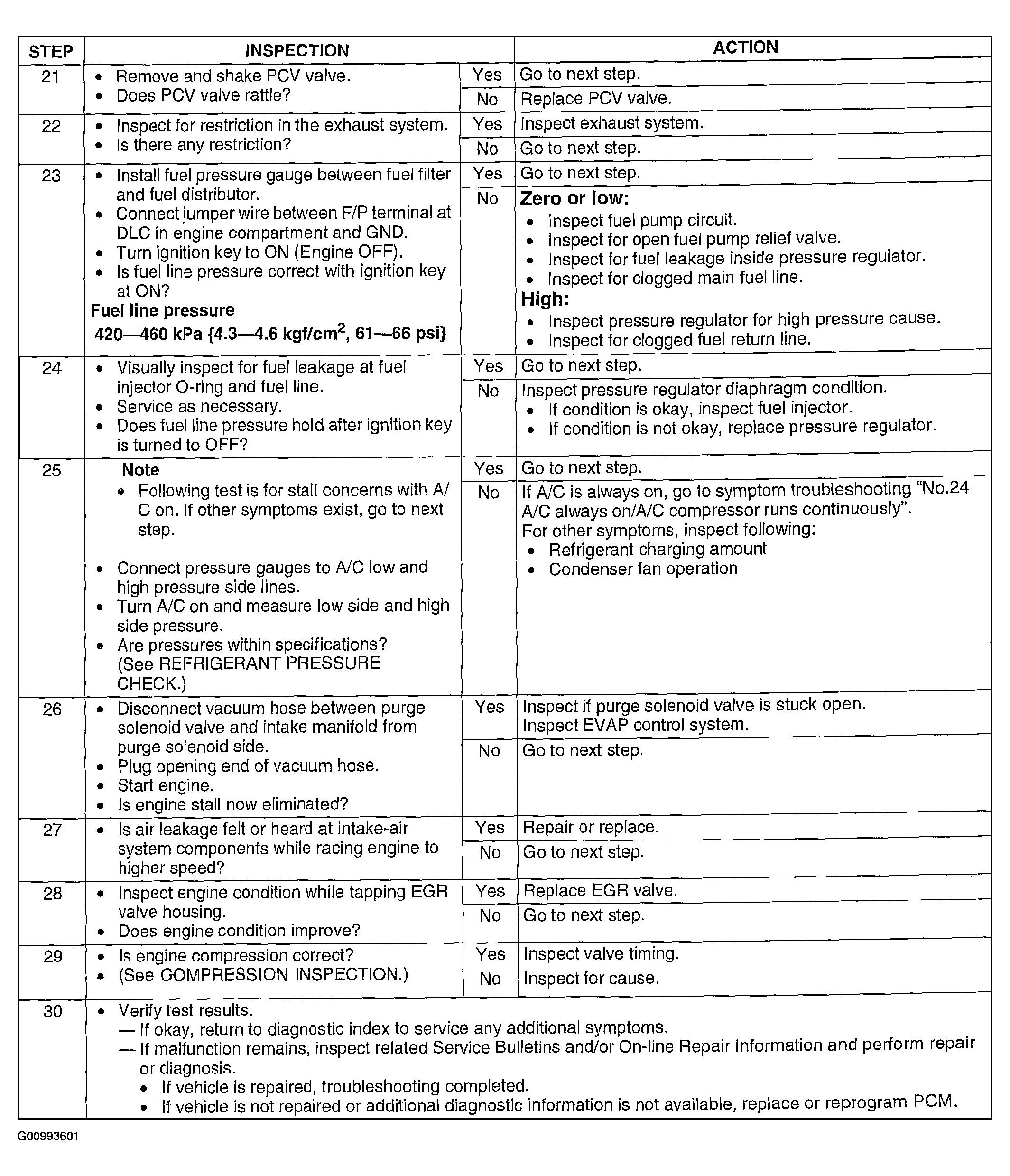

Fig 3: Symptom No.5 Diagnostic Procedure Chart (Step 21-30)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
