Symptom Troubleshooting [Engine Control System AJ]
›
No. 9 Fast Idle/Runs On
›
Diagnostic Procedure
Diagnostic Procedure

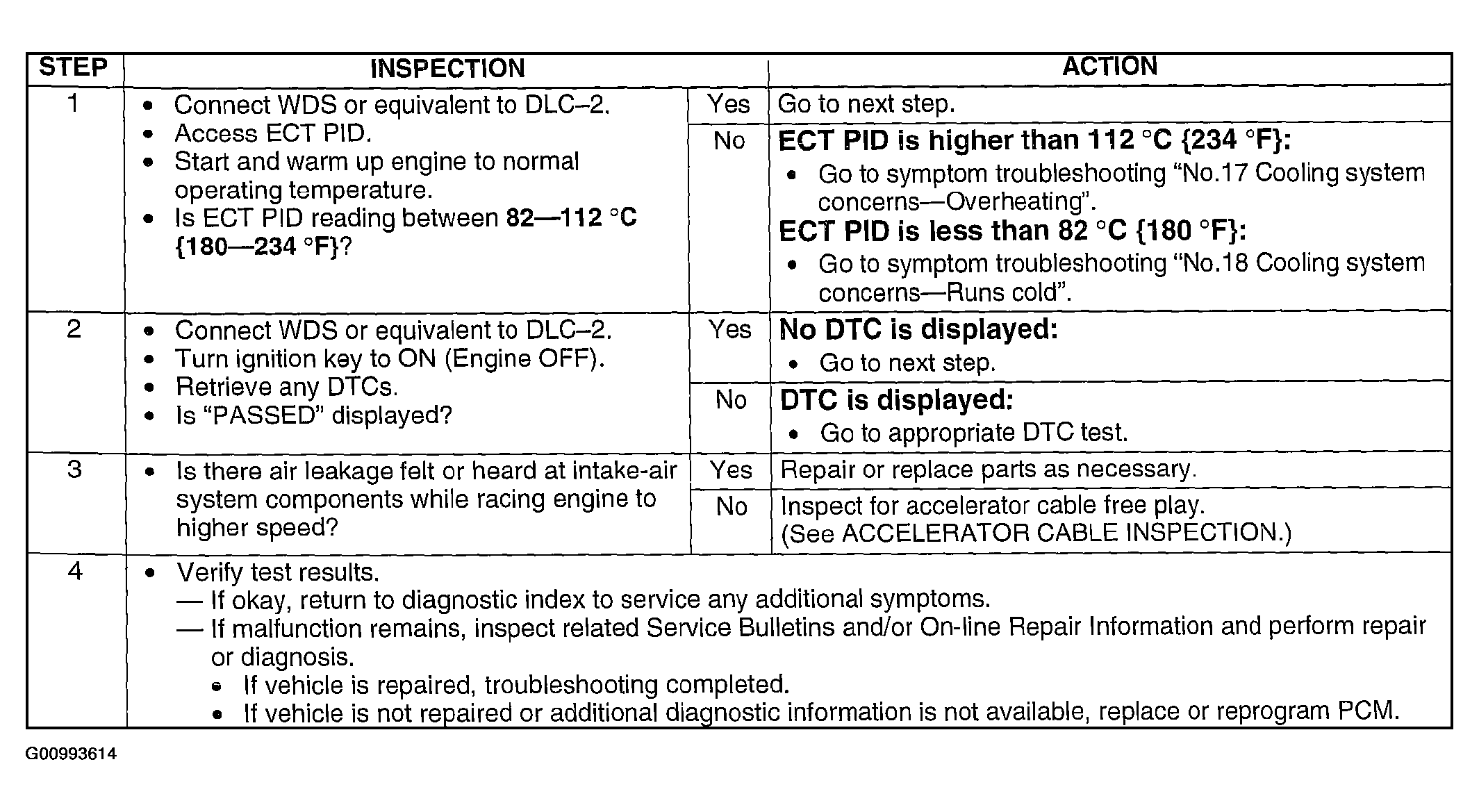

Fig 1: Symptom No.9 Diagnostic Procedure Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
