Symptom Troubleshooting [Engine Control System AJ]
›
Symptom Diagnostic Index
Symptom Diagnostic Index

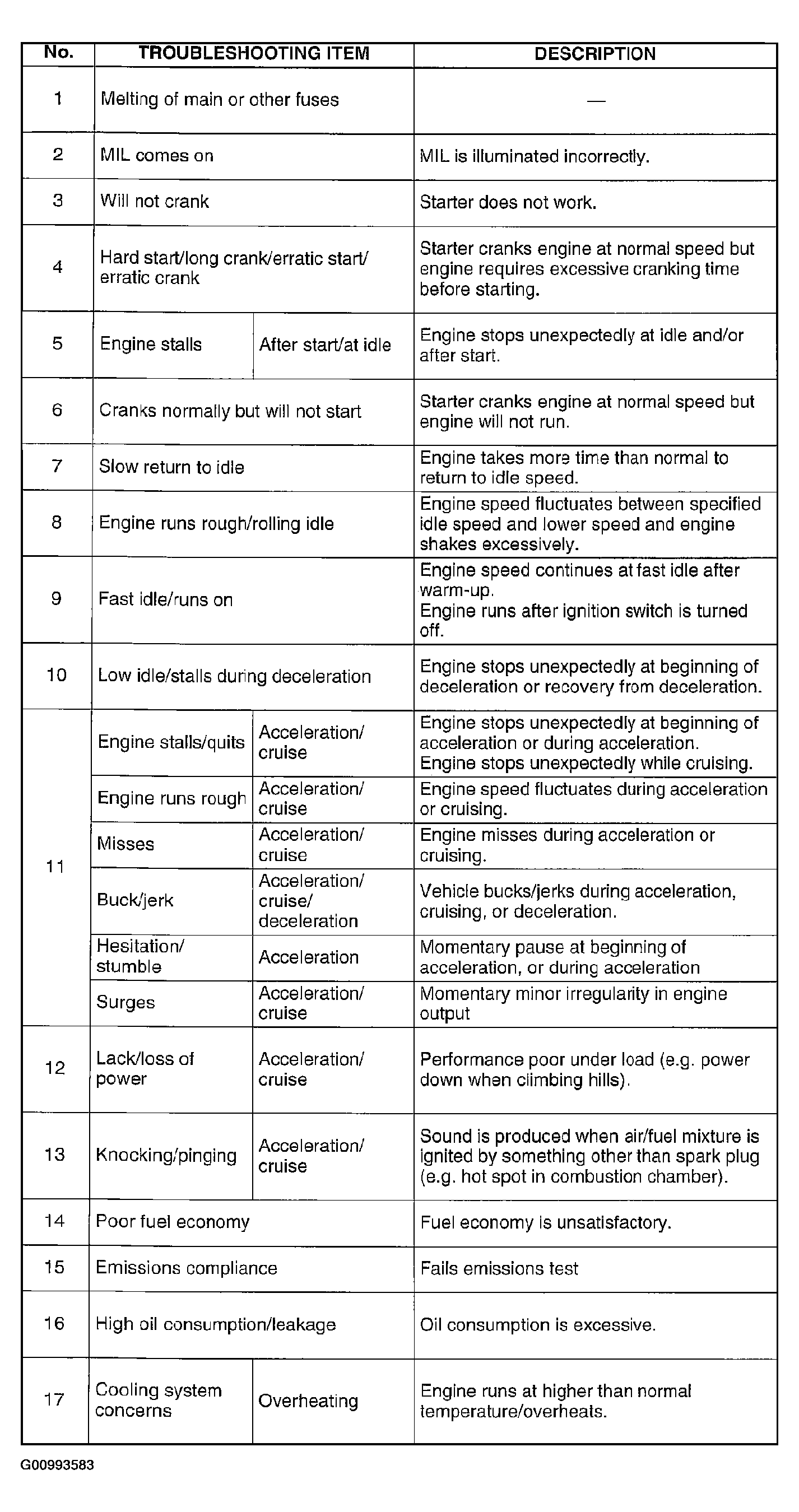

Fig 1: Symptom Diagnostic Index (Symptoms 1-17)
Courtesy of MAZDA MOTORS CORP.

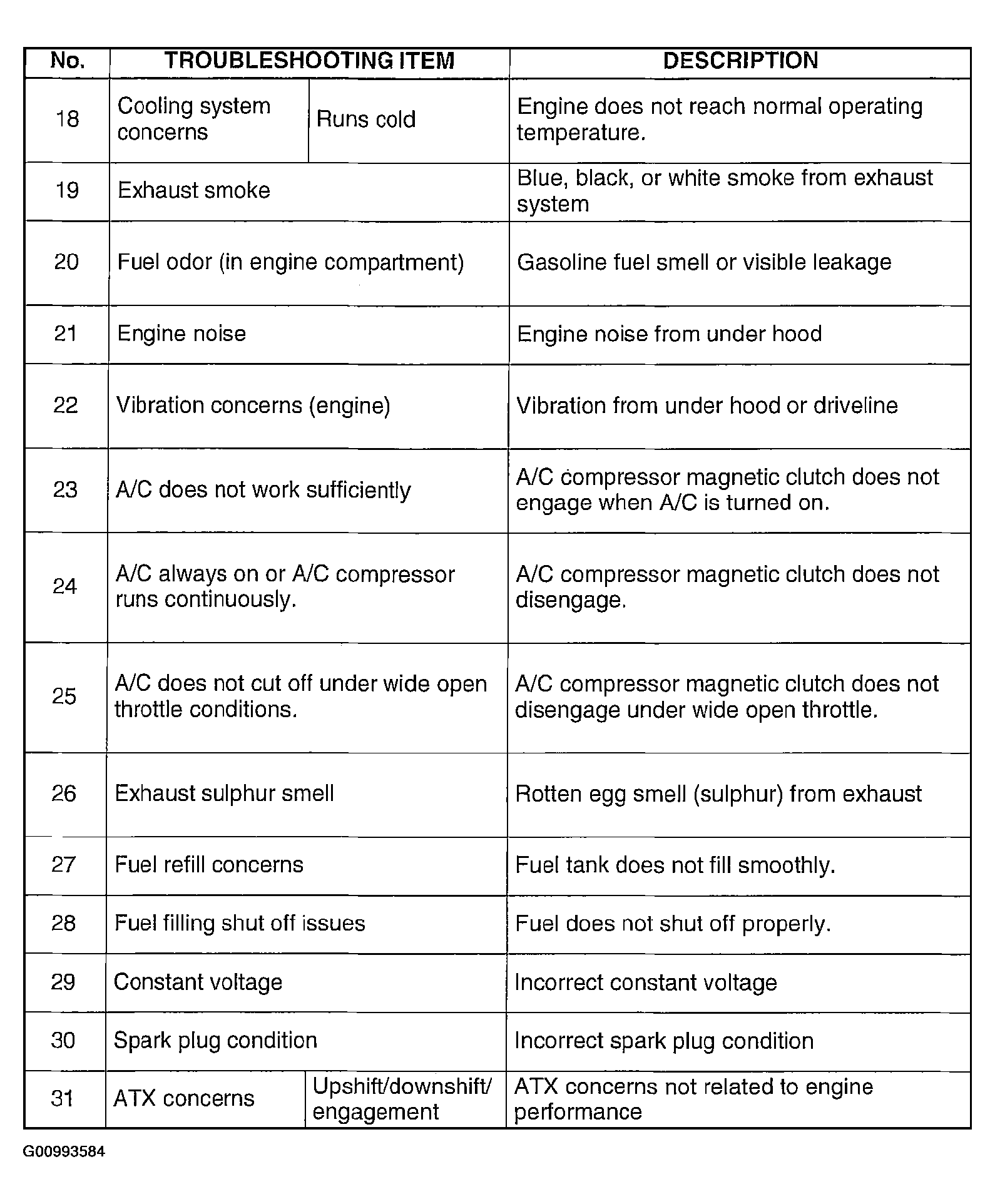

Fig 2: Symptom Diagnostic Index (Symptoms 18-31)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
